Technical Parameter

1. Specification 1:Mark VI Series

2. Specification 2:Product Type: RTD Termination Board

3. Specification 3:Dimensions: 14.8 x 10.3 x 3.2 cm

4. Specification 4:Weight: 0.24 kg

5. Specification 5:Material: High-grade aluminum alloy

6. Specification 6:Operating Temperature Range: -20°C to +70°C

7. Specification 7:Connection Type: Screw terminals

Product Introduction

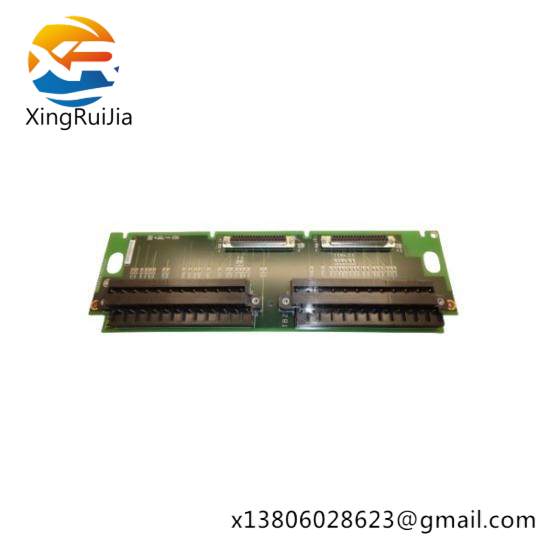

Introducing the GE-FANUC IS200TRTDH1CCC RTD Termination Board, a critical piece of hardware for any industrial control system that requires high-precision temperature measurement. This board is engineered to withstand the rigors of industrial environments, offering a wide operating temperature range from -40°C to +85°C. Its input resistance can be customized between 100 Ohms to 1 kOhm, ensuring compatibility with a variety of RTD (Resistance Temperature Detector) sensors.

Featuring versatile output signal types, either 4-20 mA or 0-10 V, this termination board is ideal for integrating with existing systems that require flexible signal transmission. It supports a stable power supply voltage of 12V DC, ensuring reliable operation under various power conditions.

For communication purposes, it utilizes MODBUS, a widely adopted protocol in industrial automation, allowing seamless data exchange with other devices in the network. With only one input channel, it is designed to measure a single RTD sensor at a time, providing precise readings without interference from multiple sensors.

Compact and lightweight, measuring 75mm x 60mm x 20mm and weighing only 0.1kg, the IS200TRTDH1CCC RTD Termination Board is easy to install and maintain in tight spaces within industrial machinery. Its robust design ensures durability and longevity in harsh environments.

To facilitate quick installation and troubleshooting, the board comes with comprehensive documentation and technical support from GE-FANUC. Users can easily connect to the device using standard cables and interface with the system through established protocols, making it a user-friendly solution for temperature measurement tasks in manufacturing, research, and engineering applications.

***************************************************

Annual hot selling advantage products：

ABB PM665  Only inventory left, in high demand source

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen   •Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

GE Hot Selling models

GE DS200TCTGG1A FF    GE DS200TCRAG1A       GE DS200EXPSG1ACB    GE DS200PTCTG1A     GE DS200TCDAH1BHE
GE DS200QTBAG1A       GE DS200TBCAG1A       GE 531X307LTBAKGI     GE DS200TBQBG1ACB   GE DS200TCDAH1BJE
GE DS200RTBAG2A HC    GE DS200PCCAG4 ADB    GE DS200CTBAG1 ADD    GE DS200TCEAG1BTF   GE DS200TCCAG1BAA
GE DS200TBQCG1 ABB    GE DS200TBQAG1A       GE DS200QTBAG1A DC    GE DS200TCEAG1BSF   GE DS200SLCCG3AGH
GE DS200SDCCG4AGD     GE DS200TCEBG1B AA    GE DS200TCEAG1BTF     GE DS200SDCCG4AHD   GE DS200TCDAH1BJE
