Manufacturer:General Electric

Series:Mark V

Part Number:DS200KLDCG1AAA

Functional Description:LED/Key/Display Board

LED Count:32

Display Count:21

Jumper Usage:Modifies board behavior through pin selection

Board Connector:40-pin

Coating Type:Normal

Revisions Supported:3

Backward Compatibility:1st two revisions

Assembly Type:Normal

Technical Specifications:[“Operational Voltage: 5V”,”Operating Temperature: -40°C to +70°C”,”Storage Temperature: -55°C to +85°C”,”Relative Humidity: 5% to 95% non-condensing”]

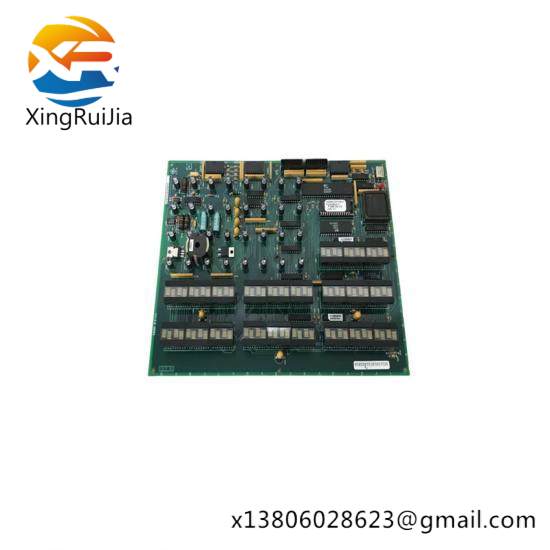

    This DS200KLDCG1AAA LED Display Board from General Electric is a critical component for enhancing the performance of industrial control systems. Its robust design ensures reliable operation under extreme conditions, making it ideal for applications requiring precision and durability.

    Featuring an impressive array of 32 LEDs and 21 four-character displays, this board offers unparalleled visual clarity for monitoring and controlling processes. The modular design allows for easy integration and customization, catering to diverse industrial needs.

    With a normal coating and compatibility for up to three revisions, this board ensures backwards compatibility and future-proofing, providing long-term reliability for your industrial operations. The included 40-pin connection strip facilitates seamless connection to other components in your system.

    The innovative jumper feature enables users to adjust the board’s functionality, offering flexibility in managing different operational scenarios. This feature, along with the provision of capacitors, diodes, and resistors for excess voltage management, demonstrates GE‘s commitment to delivering a versatile and efficient solution.

    Manufactured to stringent quality standards, the DS200KLDCG1AAA is equipped with temperature and humidity specifications that guarantee optimal performance across a wide range of industrial environments. Whether in harsh manufacturing settings or in sensitive control rooms, this LED Display Board delivers unparalleled reliability and precision.
