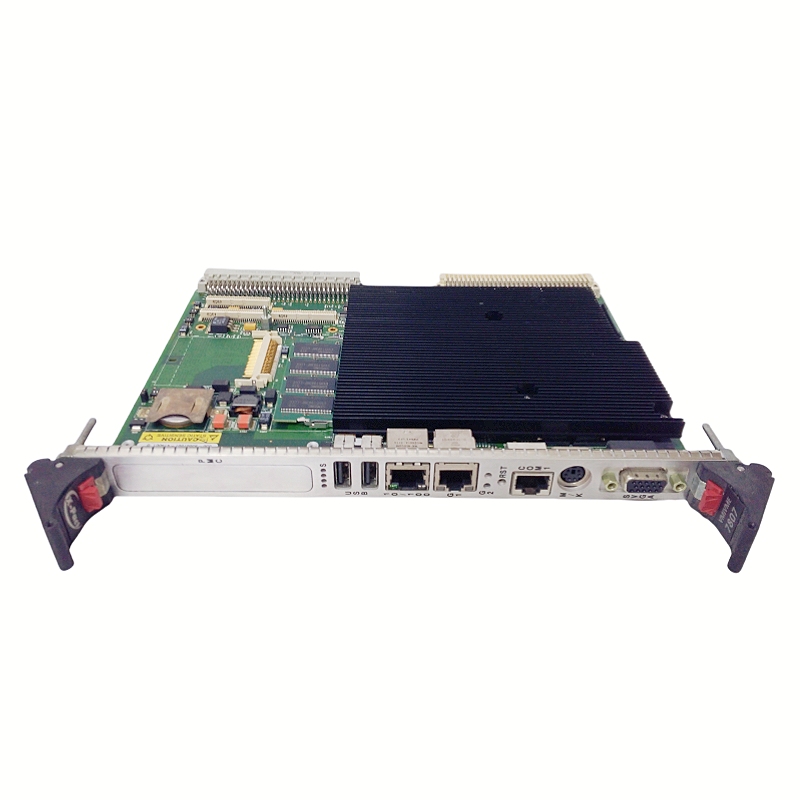

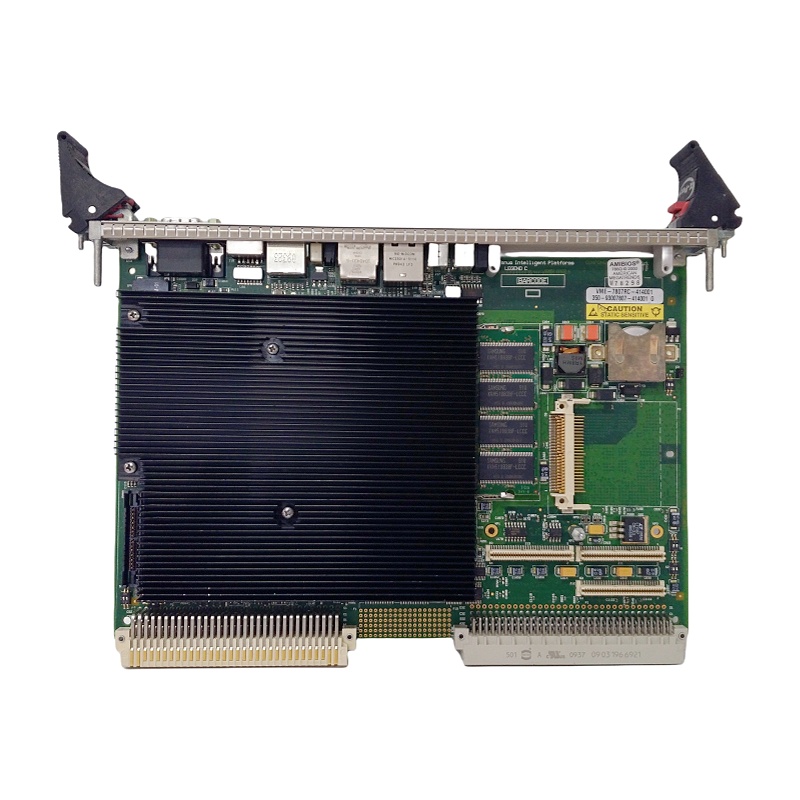

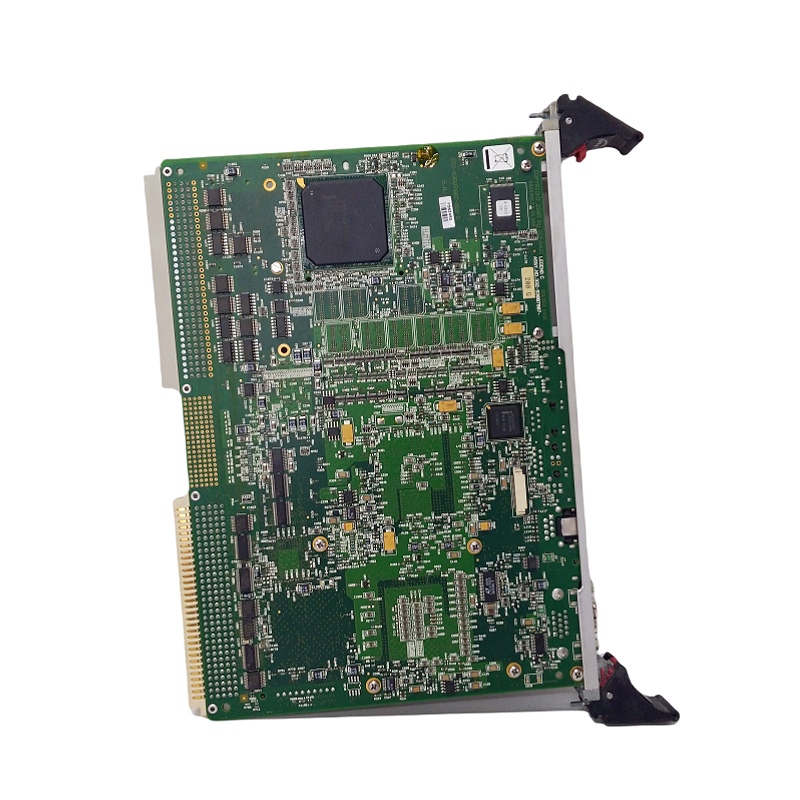

GE VMIVME-7807RC Single Board Computer

GE VMIVME-7807RC is a high-performance Single Board Computer (SBC) based on the Intel Pentium M processor, specifically designed for embedded systems and industrial automation applications.

GE VMIVME-7807RC

GE VMIVME-7807RC is a high-performance Single Board Computer (SBC) based on the Intel Pentium M processor, specifically designed for embedded systems and industrial automation applications. It adopts the Intel 855GME chipset and VME bus architecture, delivering powerful processing capabilities and a rich set of interfaces, making it suitable for environments requiring high reliability.

Specifications

  • Processor: Intel Pentium M, with optional frequencies of 1.1 GHz, 1.4 GHz, or 1.8 GHz.
  • L2 Cache: 1 MB for the 1.0 GHz model; 2 MB for the 1.4 GHz and 1.8 GHz models.
  • Memory: Supports up to 5 GB of DDR SDRAM, with optional ECC support.
  • Storage: Auxiliary IDE interface supports up to 2 GB of bootable CompactFlash.
  • Bus: 400 MHz system bus.
  • Ethernet: 10/100 Mbit Ethernet (front panel) and dual Gigabit Ethernet (optional VITA 31.1 support).
  • Serial Ports: Four 16550-compatible serial ports.
  • USB: Four USB 2.0 ports (two on the front panel, two on the rear I/O).
  • Graphics: Built-in SVGA and DVI-I graphics support.
  • Expansion: One PCI-X PMC expansion slot (66 MHz).

GE VMIVME-7807RC

Product Features

  • High-Performance Processing: The Pentium M processor balances high performance and low power consumption.
  • Rich Interfaces: Multiple communication and expansion interfaces to meet diverse application requirements.
  • High Reliability: Supports wide-temperature operation, suitable for industrial environments.
  • Flexible Storage: Supports CompactFlash and DDR SDRAM for flexible and reliable data storage.
  • Real-Time Operating System Support: Compatible with real-time operating systems such as Windows XP, VxWorks, QNX, and Linux.

Structure and Composition

  • Motherboard: Adopts 6U VME Eurocard form factor, single-slot design, and passive cooling.
  • Chipset: Intel 855GME chipset, providing integrated LVDS and Serial ATA functions.
  • BIOS: System and video BIOS stored in programmable flash memory.
  • Real-Time Clock: Built-in real-time clock/calendar.
  • Watchdog Timer: Software-selectable, supporting reset functionality.

GE VMIVME-7807RC

Application Fields

  • Industrial Automation: Used in process control, data acquisition, and monitoring systems.
  • Aerospace and Defense: Suitable for avionics equipment and military communication systems.
  • Medical Equipment: Applied in medical imaging and patient monitoring systems.
  • Energy Industry: Used for monitoring and control of power systems and energy distribution.
  • Transportation: Applied in traffic signal control and railway signaling systems.

Installation and Maintenance

  • Installation: Follow VME bus standards to ensure correct connection of power supply and bus interfaces.
  • Configuration: Set system parameters (such as memory, storage devices, and network configurations) through BIOS.
  • Maintenance: Regularly check hardware connections, update BIOS and drivers, and back up system data.
  • Troubleshooting: Use system self-test functions and log records to quickly locate and resolve issues.

————————————————————————————————-
