Product Model:745-W2-P5-G5-HI-A-E-H

Windings Per Phase:2

Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Display Type:40 character Enhanced LCD

Dimensions:Height: 9″, Width: 7″, Depth: 7 ⅛”

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

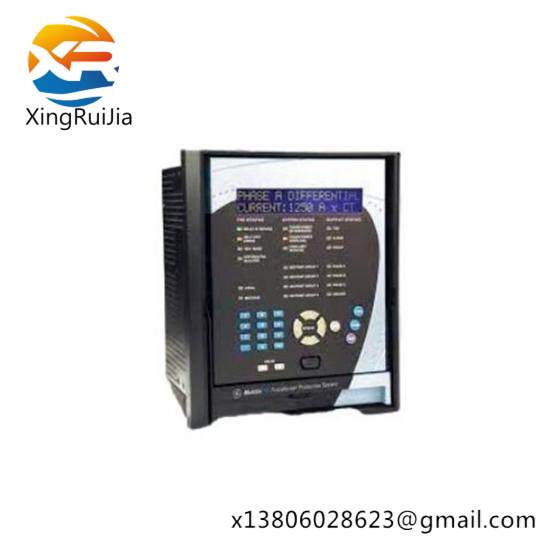

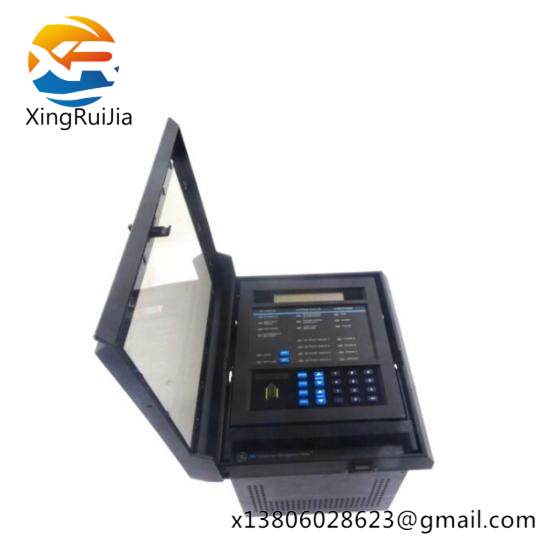

    The GE SR745-W2-P5-G5-HI is part of General Electric’s Multilin series, designed specifically to manage and safeguard transformers, autotransformers, and reactors. This advanced model offers superior protection and management capabilities through its robust design and high-quality components.

    Key features include an enhanced 40-character display and an expanded keypad, allowing for more precise and efficient manual entry of setpoints. This makes it ideal for operators who need to quickly adjust settings and monitor status in real-time.

    With a durable SR 745 series chassis, this model ensures protection during the draw-out process and enhances durability in operational environments. The enhanced display provides clear alerts and statuses, helping to minimize downtime and improve system efficiency.

    Technical specifications include two windings per phase, supported by a 3-wire Resistant Temperature Device (RTD) with options for 100 Ω Nickel, 120 Ω Nickel, or 100 Ω Platinum. The analog output maximum load ranges from 10 kΩ at 0 to 1 mA to 600 Ω at 4 to 20 mA, providing flexibility for various applications.

    Installation and maintenance are simplified with detailed documentation available. Safe handling practices are emphasized to ensure longevity and reliability of the equipment.
