Power Supply Voltage:90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz

Control Power Range:90 to 300 VDC; 70 to 265 VAC at 48 to 62 Hz

Number of Windings Per Phase:3

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Display:40 character Enhanced LCD

Dimensions:Height: 9″; Width: 7 ⅛”; Depth: 7″

Case Material:Durable, heat-resistant material

Protection Features:Dynamic CT Ratio Mismatch Correction, Overexcitation Protection, Transformer Overload Protection, Frequency Rate-of-Change Detection, Hottest Spot Monitoring

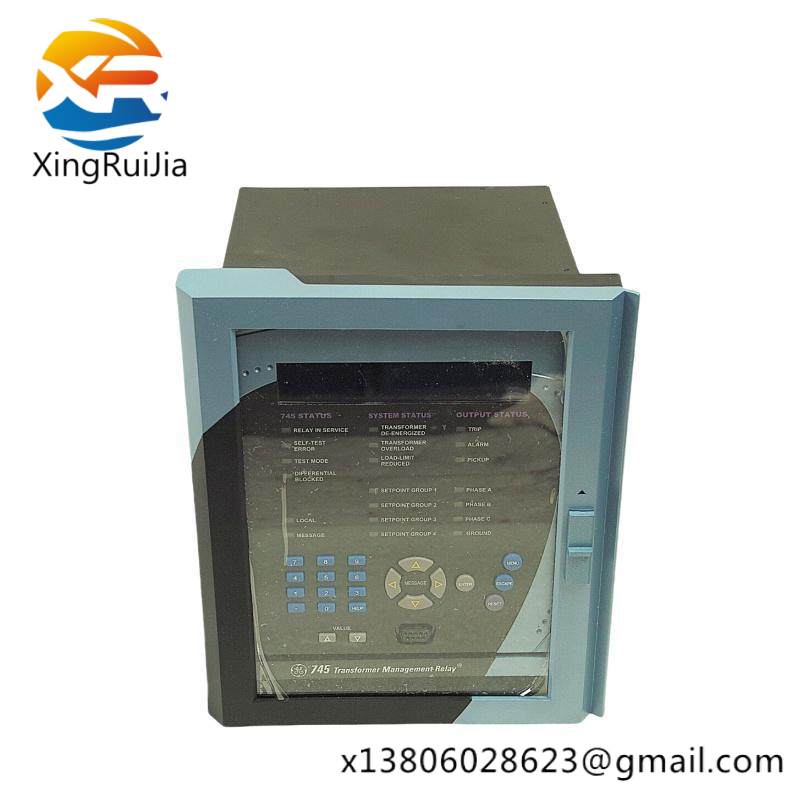

    The General Electric SR745 CASE 745-W2-P5-G5-HI-T is engineered for seamless integration into transformer management systems, providing critical functions such as dynamic CT ratio mismatch correction, overexcitation protection, and transformer overload detection.

    Featuring an enhanced 40 character LCD display, this relay ensures intuitive operation and quick access to system status information. Its compact design allows for easy installation within space-constrained environments.

    This advanced relay utilizes adaptive features to monitor and adjust to varying operational conditions in real time, significantly reducing maintenance costs and extending equipment lifespan through proactive protection measures.

    With support for up to 16 logic inputs, it offers unparalleled flexibility in system connectivity and customization, enabling tailored responses to diverse operational scenarios.

    Backed by the renowned quality and reliability of General Electric, this transformer management relay is designed for long-term performance and is suitable for use in a wide range of industrial applications, from power generation to distribution networks.
