Manufacturer:General Electric

Model Number:469-P5-HI-A20

Power Range:90 to 300 VDC or 70 to 265 VAC

Frequency Range:48-62 Hz

Phase CT Rating:5A

Analog Outputs:4

RTD Inputs:Multiple (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Current Rating:390/500 mA (MAX)

Line Voltage:90-300VDC, 70-265VAC

Enclosure Rating:20-X

Pollution Degree:2

Overvoltage Category:II

Insulation Voltage:300 V

Ethernet Port:10Base-T

Number of Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)

Software:EnerVista 469 Setup

Weight Before Packaging:Less than 15 lbs

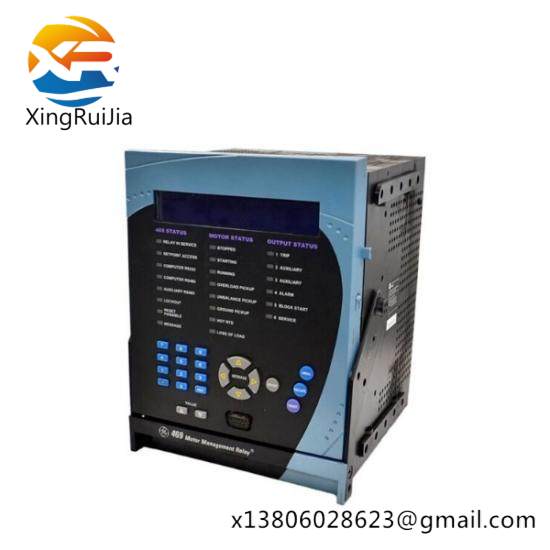

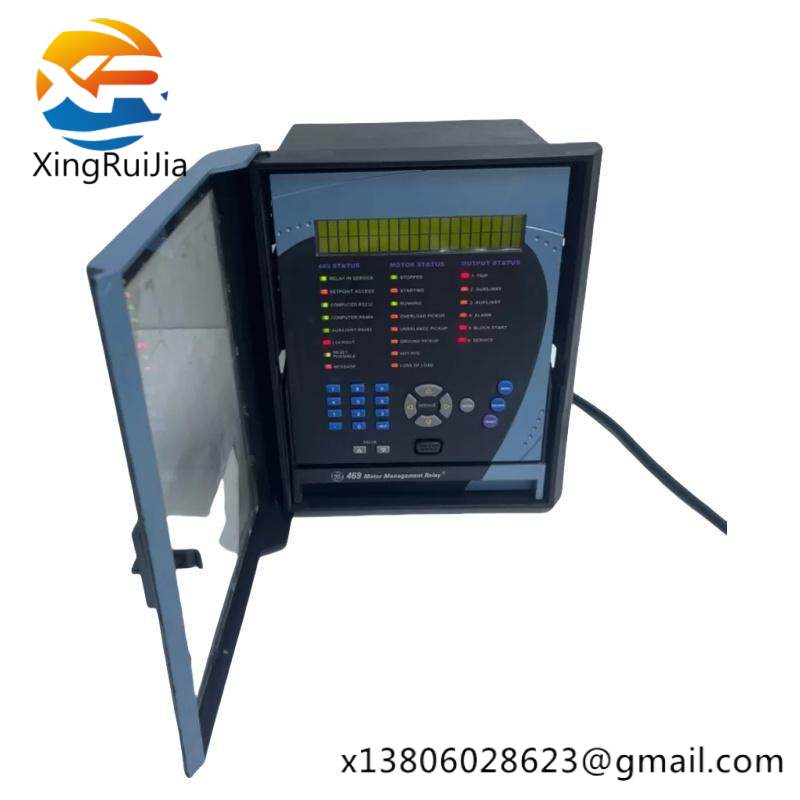

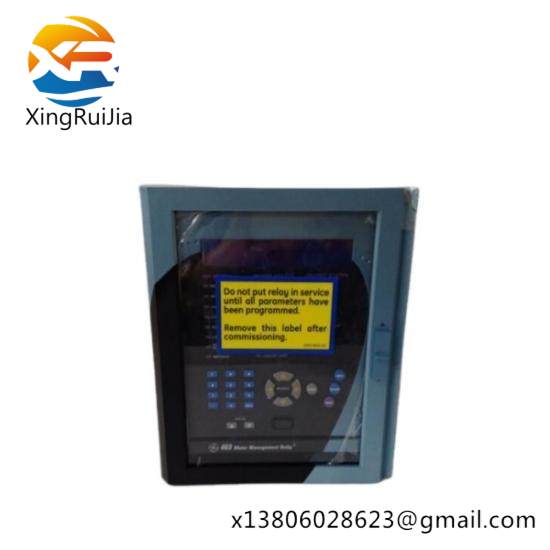

    The GE SR469-P5-HI-A20 Motor Management Relay is a robust solution designed for industrial motor management.

     With multiple RTD inputs, it can accurately determine the temperature of the motor system, ensuring optimal performance and longevity.

     The enhanced front panel controls provide easy access and monitoring, allowing operators to manage the motor system efficiently.

     Featuring a 5 A phase CT secondary, this relay ensures reliable current measurement, contributing to the overall safety and efficiency of the motor system.

     The conformal coating offers protection against harsh environments, making it suitable for chemical plants, manufacturing facilities, and other demanding industrial settings.
