Model Number:469-P5-HI-A20-E

Brand:General Electric

Module Type:Motor Management Relay

Operating Voltage:90 – 300 VDC, 70 – 265 VAC

Frequency Range:48-62 Hz

Current Transformer:5 CT secondaries

Analog Outputs:4

Digital Inputs:9 opto-isolated inputs

Phase Current Inputs:1 A phase CT secondaries

Temperature Inputs:Multiple RTD inputs (100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, 100 ohm Platinum)

Enclosure Rating:20-X

Pollution Degree:2

Insulation Voltage:300 V

Software:EnerVista 469 Setup

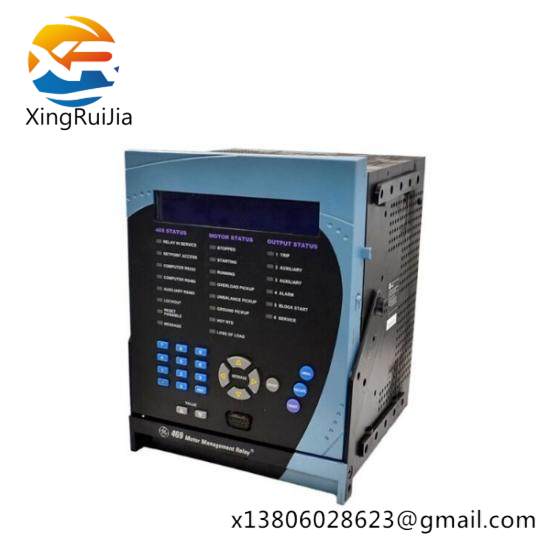

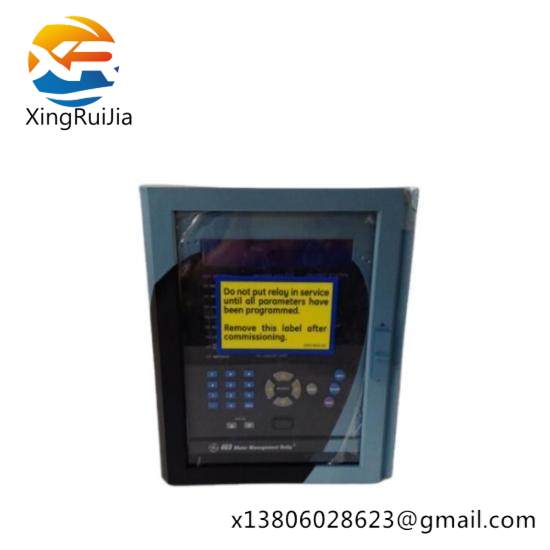

    The GE SR469-P5-HI-A20-E is a state-of-the-art motor management relay developed by General Electric, designed specifically for medium to large motor systems. It features advanced monitoring capabilities, including real-time temperature detection and current analysis, which are critical for ensuring optimal motor performance and longevity. With its robust design and high-quality components, this relay is built to withstand harsh industrial environments, making it suitable for use in a variety of demanding applications.

    One of the standout features of the GE SR469-P5-HI-A20-E is its ability to manage multiple RTD inputs, providing accurate temperature readings and identifying the hottest point in the motor system. This functionality helps prevent overheating and ensures that motors operate within safe parameters. Additionally, the relay offers four 0 to 1 mA analog outputs and nine opto-isolated digital inputs, enabling seamless integration with other industrial control systems.

    Designed for reliability and ease of use, the GE SR469-P5-HI-A20-E comes equipped with an enhanced front panel and conformal coating, making it resistant to chemical and environmental hazards. Its extended operating temperature range (-40°C to +60°C) ensures consistent performance even in extreme conditions, while the storage temperature range (-40°C to +80°C) allows for safe storage during transportation and downtime.

    With its advanced software suite, the EnerVista 469 Setup, users can easily configure and monitor the relay, optimizing motor performance and extending equipment life. Whether you’re managing industrial machinery, pumps, or fans, the GE SR469-P5-HI-A20-E provides unparalleled control and protection, making it an indispensable tool for any industrial facility.
