Model Number:469-P5-HI-A20-E

Motor Protection Category:II

Insulation Voltage:300 V

Pollution Degree:2

Current Range:390/500 MA (MAX)

Line Voltage:90-300VDC, 70-265VAC

Phase CT:5A

Frequency:48-62HZ

Secondary Current Transformers:5 CT

Analog Outputs:4

Enclosure Rating:20-X

Relay Type:Motor Management Relay

Protection Functions:[“Overvoltage”,”Undervoltage”,”Overload”]

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Package Weight:Approximately 17 lbs

Package Dimensions:Width 12 in, Height 11 in, Depth 10 in

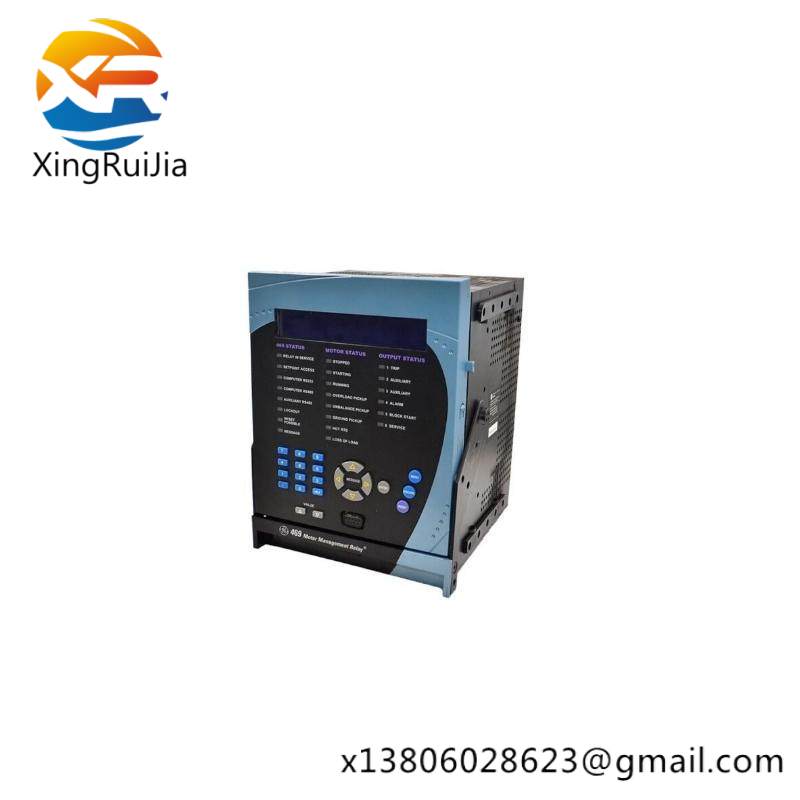

    The GE SR469-CASE 469-P5-HI-A20-E Electric Motor Management Relay is engineered to provide comprehensive protection against common motor failures, ensuring operational safety and efficiency in industrial environments.

    Featuring advanced monitoring capabilities, this relay can detect and respond to overvoltage, undervoltage, and overload conditions, thereby preventing costly equipment damage and unplanned downtime.

    Equipped with five current transformer secondaries, it offers precise control over motor currents, enabling accurate detection of actual and hottest temperatures within the motor system through its multiple RTD inputs.

    With a wide operating temperature range of -20°C to +70°C, this relay ensures reliable performance across diverse industrial settings, making it suitable for applications in extreme climates.

    The robust enclosure and flame-retardant construction of the GE SR469-CASE 469-P5-HI-A20-E Motor Management Relay are designed to withstand harsh environments, providing long-lasting durability and minimal maintenance requirements.
