Size:Small rectangular

Drilling:Factory drilled in corners, holes within board and along edges

Auxiliary Card:Mounted with FPGA and integrated circuits

Components:Capacitors, resistors, diodes, transistors

Barcodes:Two barcodes attached to the surface

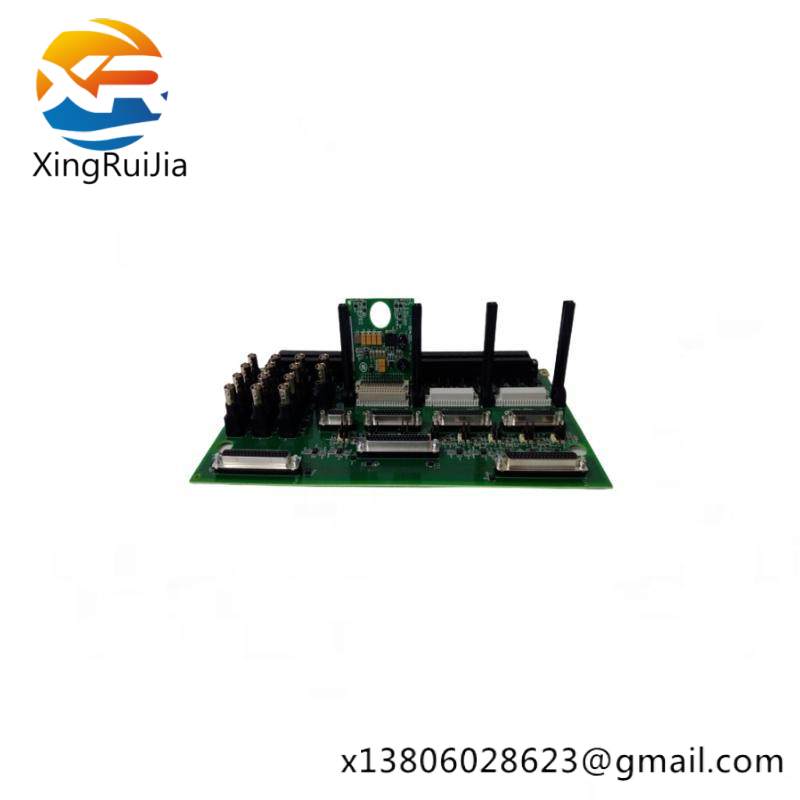

    Crafted with precision for seamless integration into the Speedtronic Mark VI system, the GE IS200AEPCH1ABC Control Board is designed for optimal performance in industrial steam and gas turbine operations.

    This small, rectangular card without a faceplate features multiple connection points, ensuring efficient data transmission and control signals for the complex systems it manages.

    The inclusion of an auxiliary card, which is almost centered on the main board, provides additional functionality and flexibility in managing various operational parameters.

    Each connection point and marking, such as DCOM and FA/00, serves specific purposes in the board’s configuration and troubleshooting, enhancing its reliability and ease of maintenance.

    Despite its compact size, the IS200AEPCH1ABC Control Board packs a punch with its intricate circuitry and robust connectivity options, making it a reliable choice for industrial environments where precision and reliability are paramount.
