Ge MMII-PD-1-2-120
1. Overview

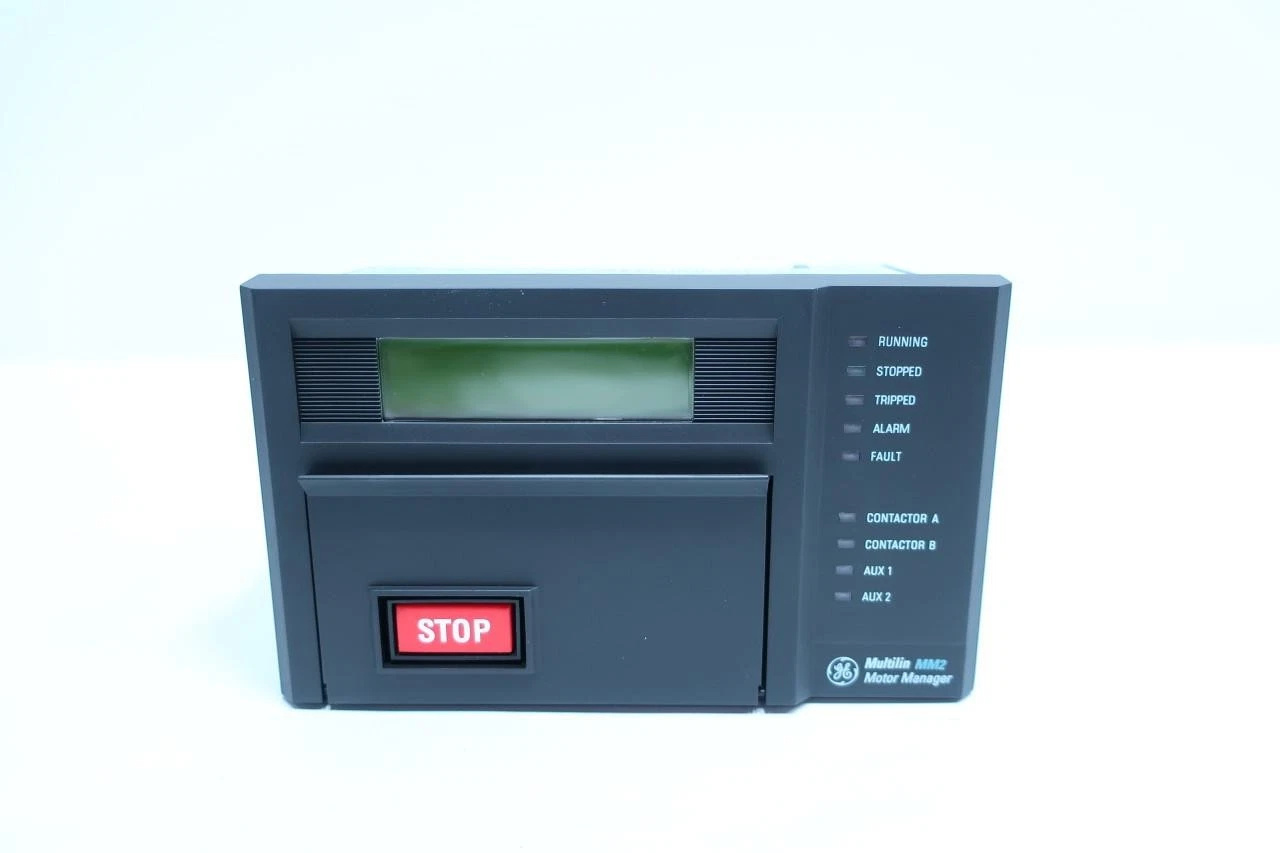

The MMII-PD-1-2-120 is an intelligent motor management system designed specifically to protect motors from faults such as overload, short circuit, overheating, and unbalanced operation. It not only provides basic protection functions but also features advanced capabilities including real-time monitoring, data collection, and remote diagnosis, making it widely applicable in various industrial automation scenarios.
2. Core Specifications

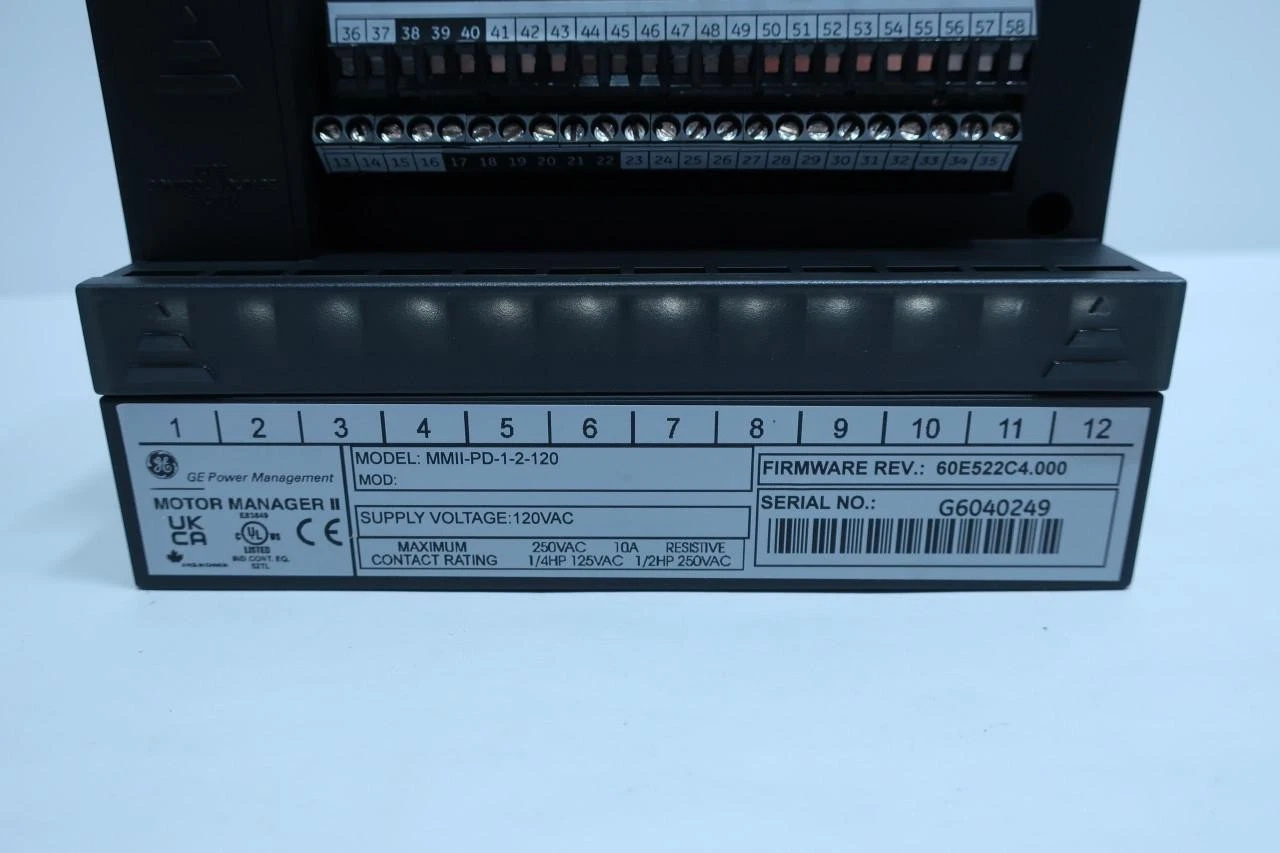

- Model: MMII-PD-1-2-120
- Rated Current: 120A
- Rated Voltage: Generally 400V/3-phase/50Hz (please confirm according to actual purchase specifications)
- Protection Range: Overcurrent, overvoltage, undervoltage, overheating, torque overload, phase imbalance, etc.
- Communication Interfaces: Supports industrial communication protocols such as Modbus, Profibus, and Ethernet/IP
3. Product Features
- Multiple Protection: Integrates multi-dimensional protection mechanisms for current, power factor, temperature, frequency, etc.
- Intelligent Monitoring: Equipped with real-time operating status monitoring, fault recording and analysis functions, and supports remote monitoring.
- High Reliability: Adopts a modular design for easy maintenance and strong anti-interference ability.
- Communication Capability: Supports multiple industrial network protocols, facilitating integration into SCADA/DCS systems.

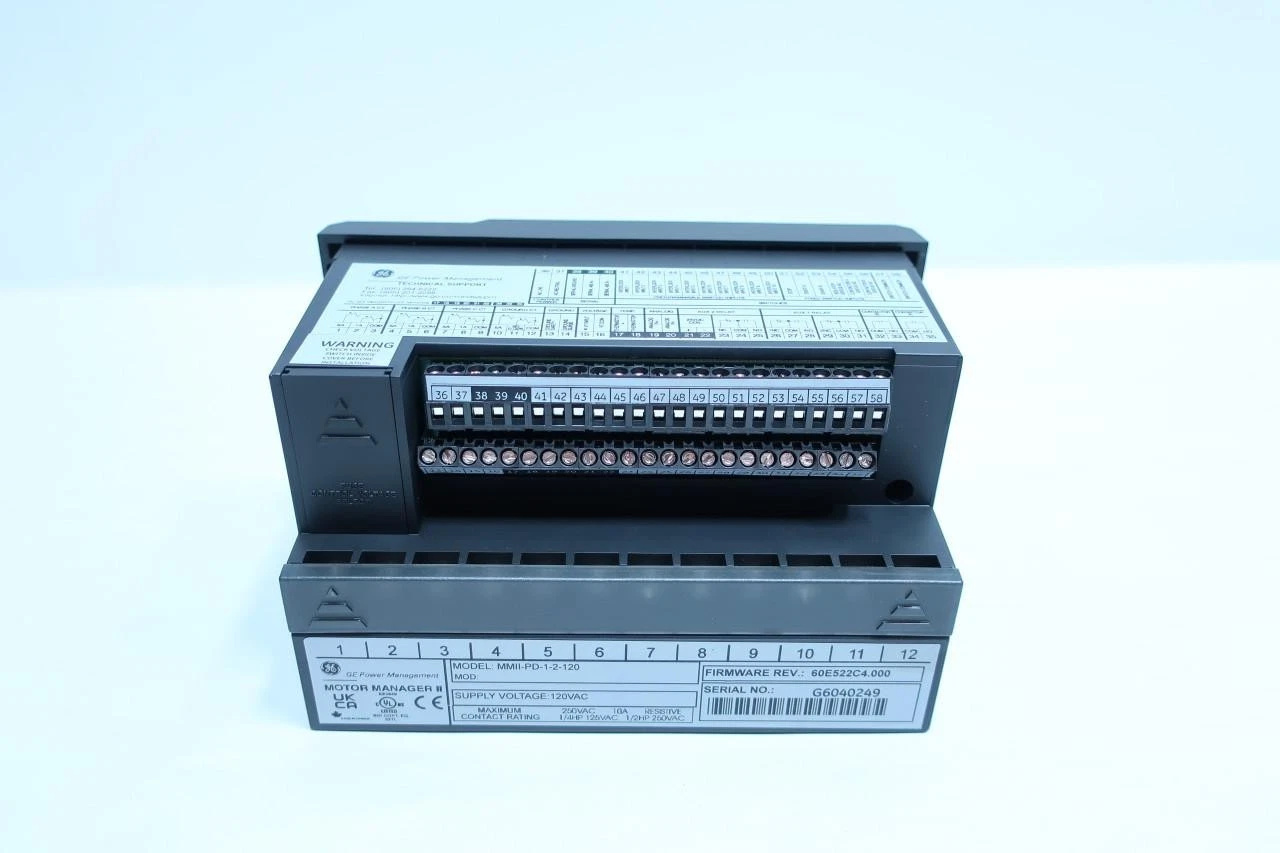

4. Structure and Composition
- Main Control Module: Responsible for core data processing and protection logic execution.
- Current Transformer (CT) Interface: Used to measure three-phase current.
- Voltage Transformer (PT) Interface: Used to measure phase-to-phase voltage.
- Communication Module: Includes ports such as Ethernet, Modbus/Profibus.
- Power Supply Module: Built-in or external power supply to provide the electrical energy required for equipment operation.
- Input/Output Ports: Used to connect external control signals (such as start-stop signals).
5. Application Fields
- Power Generation and Distribution: Motor starters, power system control centers.
- Petrochemical Industry: Large compressors, pump systems.
- Metal Processing: Machine tools, stamping equipment.
- Paper Making and Printing: Printing machines, papermaking machinery.
- Water Treatment: Water pumps, sewage treatment equipment.
6. Installation and Maintenance
Installation Environment
It is recommended to install in a control cabinet or protection cabinet to avoid direct sunlight and high-humidity environments. Ensure good ventilation and avoid dust, strong electromagnetic interference, and high-temperature environments. The distance between modules is recommended to be no less than 50 mm for heat dissipation and maintenance.
Wiring Requirements
- CT/PT Connection: Strictly configure according to the rated input current and voltage.
- Communication Ports: It is recommended to use shielded twisted-pair cables and ensure good grounding.
- Power Supply Connection: A fuse or circuit breaker should be installed to ensure safety.
Maintenance Recommendations
- Regular Inspection: Check the firmness of wiring, module heat dissipation, and communication status.
- Firmware Upgrade: It is recommended to regularly check the firmware updates released by GE official (such as Firmware Rev 60E520C4.000) to obtain the latest function optimizations and security patches.
- Environmental Cleaning: Keep the environment around the equipment clean to prevent poor heat dissipation caused by dust accumulation.
————————————————————————————————-
