GE MIFIIPI55E10HI00

I. Overview

II. Parameters

• Input voltage: 24V DC or 220V AC.
• Output voltage: 0 to 10V DC.
• Rated current: 10A.
• Contact form: SPST (Single Pole Single Throw).
• Number of contacts: up to 64.
• Operating temperature: -40°C to 70°C.
• Storage temperature: -40°C to 85°C.
• Relative humidity: 5% to 95% (non-condensing).
• Dimensions: 100mm × 80mm × 60mm.
• Weight: approximately 200g.

III. Product Features

• High reliability: Uses high-quality components and strict manufacturing processes to ensure reliable operation of the module.
• Easy to use: Provides standard interfaces and installation methods, facilitating user installation and use.
• Strong versatility: Supports multiple relay models and is suitable for various application scenarios.
• Memory function: The relay output contacts can be set to normally open or normally closed and have a memory function, so that the relay group remains in their contact positions when there is a power interruption or front panel reset.
• Easy to expand: Multiple devices can be daisy-chained to expand the number of relay node outputs on a single CC1 serial port.
• Remote control: Relay interface devices can be remotely controlled by the controller at a distance of up to 4,000 feet (1,219 meters).
• Compliance with standards: Complies with the IEC 60947-5-1 standard.
• Modular design: Modular structure, convenient for installation and maintenance.

IV. Structure and Composition

• Contact output: Each device provides up to 64 Single Pole Single Throw (SPST) contact outputs for controlling different peripheral devices.
• LED indicator: Displays the relay status.
• Test button: For manual operation of the relay.

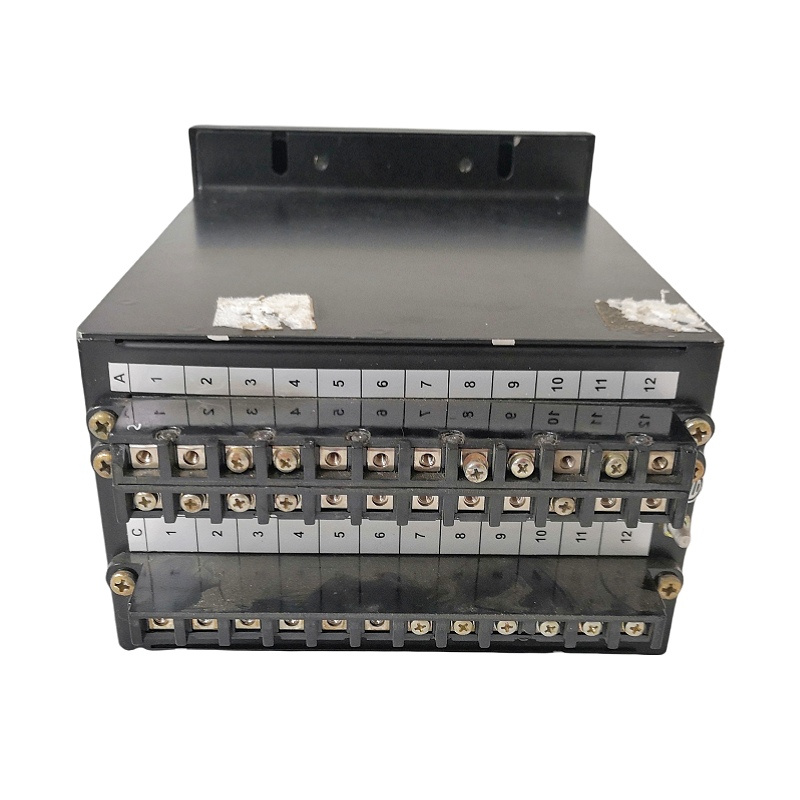

• Detachable terminal block: Facilitates wiring.

V. Application Fields

• Industrial automation: Used to control and monitor industrial processes.
• Power systems: Used for feeder management and protection.
• Transportation and building automation: Used in various applications that require controlling multiple peripheral devices.
• Manufacturing industry: Improves production line efficiency.
• Food and beverage: Ensures hygiene standards.
• Pharmaceutical industry: Precisely controls production lines.
• Oil and gas: Refineries, pipeline process monitoring and control.
• Water treatment: Pump station management, purification processes.
• Power and energy: Used for motor control, power protection, etc.
• Chemical industry and transportation: Used in automated production lines, traffic control systems, etc.

VI. Installation and Maintenance

• Installation method: DIN rail mounting.
• Installation guidance: Follow the manufacturer’s instructions for correct installation.
• Maintenance suggestions: Conduct regular maintenance checks to prevent operational problems.
• Firmware update: Enhance functions and security.
• Preventive measures: Install correctly according to the manufacturer’s instructions and conduct regular maintenance checks to prevent operational problems.

————————————————————————————————-
