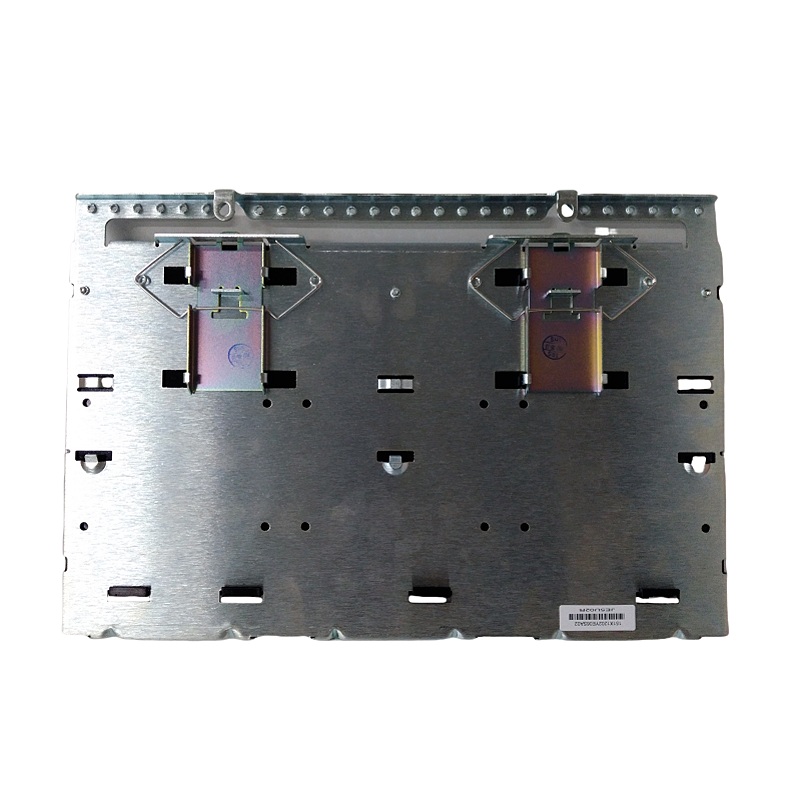

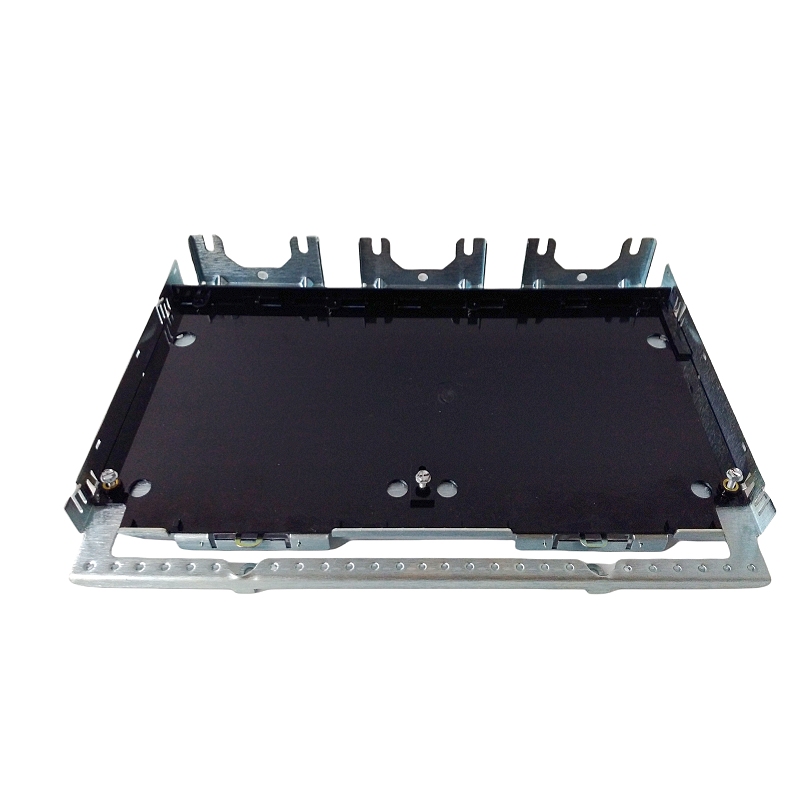

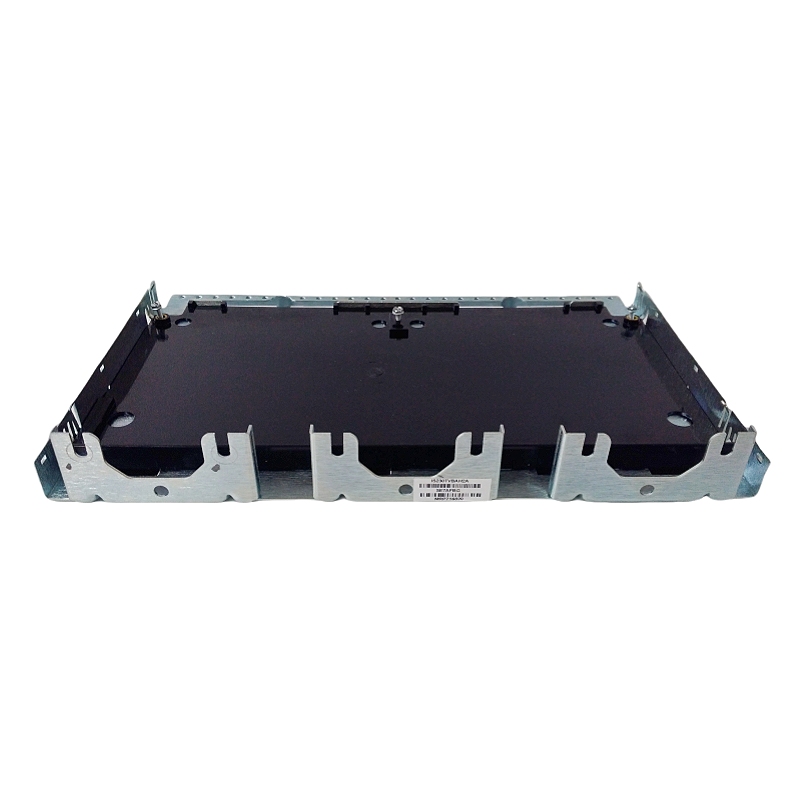

GE IS230TVBAH2A

The IS230TVBAH2A is a key component in the General Electric (GE) Mark VIe series control systems. It is a digital input module primarily used to collect various digital signals from the field (such as switching signals, discrete signals, etc.) and convert them into digital signals recognizable by the control system. This module features a modular design for easy installation and maintenance, and uses industrial-grade components to ensure stable operation in harsh environments.

Product Parameters

• Model: IS230TVBAH2A
• Brand: GE
• Series: Mark VIe
• Type: Digital input module
• Installation method: DIN rail mounting
• Input voltage: 24VDC
• Output voltage: 0-10VDC
• Output current: 0-20mA
• Operating temperature: -20°C to 55°C
• Storage temperature: -40°C to 85°C
• Dimensions: 2.5″ x 4.5″ x 1.5″
• Weight: 0.5 pounds
• Certifications: UL, CE, RoHS
• Warranty: 1 year

Product Features

• Modular design: Facilitates easy installation and maintenance.
• High reliability: Uses industrial-grade components to ensure stable operation in harsh environments.
• Strong compatibility: Seamlessly integrates with the GE Mark VIe control system.
• Flexible configuration: Supports multiple configuration methods to adapt to different application requirements.
• Digital input: Provides multiple digital input channels.

Product Structure

• Terminal block: Provides input terminals for connecting external devices.
• Connector: Connects to the main controller or other modules.
• Circuit board: Integrates digital input circuits.

Application Fields

• Industrial automation: Used in manufacturing plants, industrial equipment and other scenarios for precise process control and monitoring.
• Power systems: Ensures voltage stability and guarantees the safe operation of power grids in power systems.
• Building automation: Used in commercial and residential buildings to control lighting, ventilation, air conditioning and other systems.
• Energy management: Ensures efficient operation of systems in energy distribution systems.

Installation and Maintenance

• Installation method: Adopts DIN rail mounting, which is convenient for installation in equipment racks.
• Installation steps:
  1. Select a suitable DIN rail.
  2. Fix the DIN rail on the equipment rack or enclosure.
  3. Install the module on the DIN rail.
  4. Connect necessary cables and wires, ensuring proper grounding and electrical safety.
• Maintenance: Regularly check connections and connectors to ensure the normal operation of the equipment.

————————————————————————————————-
