GE IS220PSVOH1A

 I. Overview

The GE IS220PSVOH1A is part of the GE Mark VIe series, designed specifically for controlling steam and gas turbine systems. As a servo control package, it is responsible for receiving control commands, processing signals, and achieving precise control of actuators (such as valves and regulators). This module was developed by GE for third-generation turbine control systems and is widely used in steam and gas turbine systems in power plants.

II. Parameters

• Input Voltage: 24VDC
• Output Voltage: 24VDC
• Input Current: 2.5A
• Output Current: 2.5A
• Operating Temperature Range: -40℃ to 70℃
• Storage Temperature Range: -40℃ to 85℃
• Humidity Range: 5% to 95% RH
• Dimensions: VME standard size
• Cooling Method: Natural cooling
• Power Consumption: Approximately 25 watts
• Weight: Approximately 0.5 kg
• Number of Channels: 4
• Control Modes: Position control, speed control, force control
• Accuracy: 0.1%
• Resolution: 0.01%

III. Product Features

• High-performance Processor: Equipped with a high-speed processor to ensure fast command response and high control precision.
• Modular Design: Facilitates installation and maintenance, supporting flexible configuration and expansion.
• High Reliability: Uses high-quality components to ensure long-term stable operation.
• Multifunctional Power Unit: Provides reliable and efficient performance, suitable for industrial automation, manufacturing, and other harsh environments.
• Self-diagnostic Function: Enhances system reliability by real-time monitoring the operation status of the servo system, promptly detecting and reporting faults.
• Rich Communication Interfaces: Supports multiple communication protocols such as Modbus TCP, EtherNet/IP, etc., facilitating communication with other systems.
• Durability: Manufactured with high-quality components to ensure long-term reliable operation.
• Easy Installation: Compact design simplifies the installation process, saving space and time.

IV. Structure and Composition

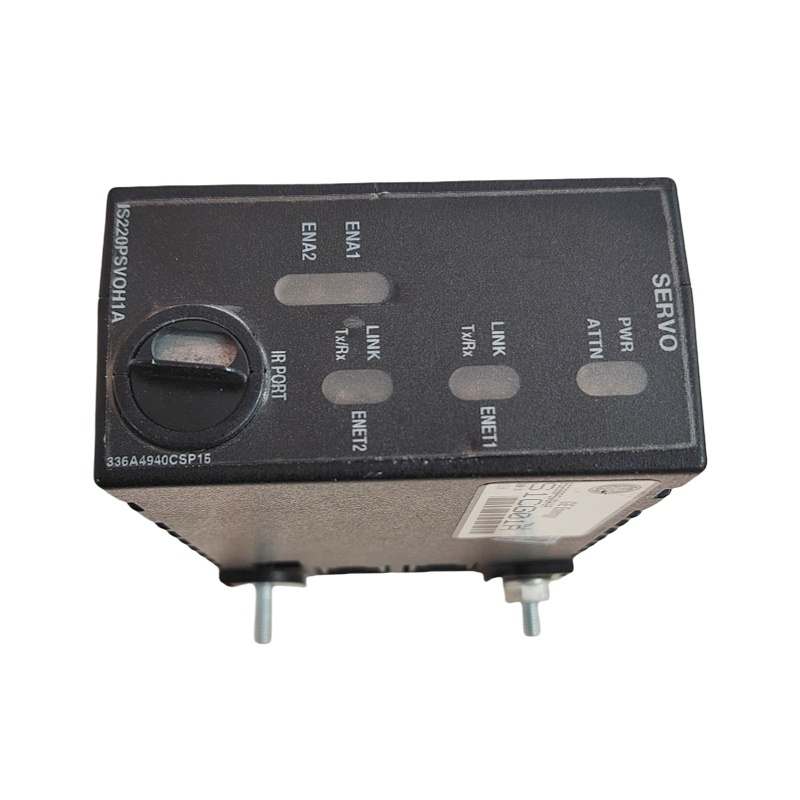

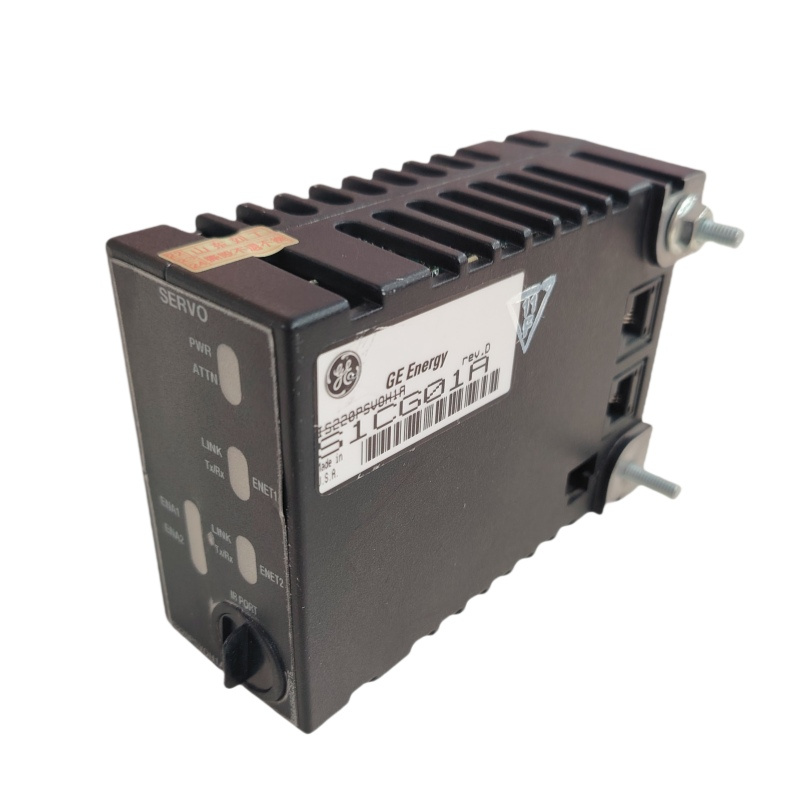

• Front Panel: Equipped with multiple LED indicators to display Ethernet network status, power and Attn status, and ENA1/2 status.
• Internal Components: Include processor board, local power supply, internal sensors, flash memory, and on-board RAM.

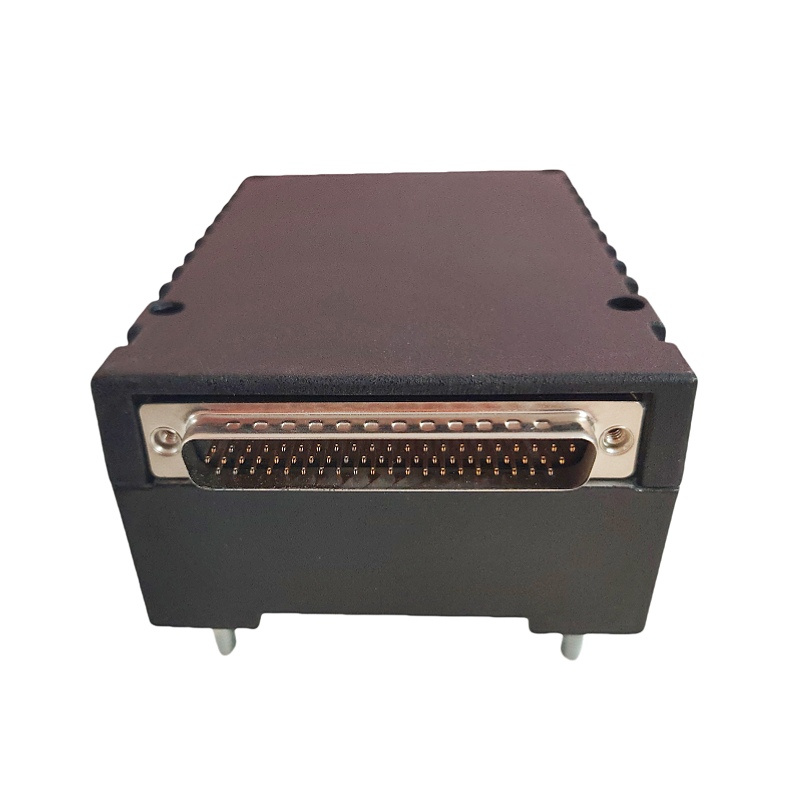

• Connectivity: Provides two independent 10/100 Ethernet ports for flexible connection and communication with multiple networks.
• Protection Mechanisms: Features overvoltage, overcurrent, and thermal protection mechanisms to ensure safe operation of the equipment.

V. Application Fields

• Industrial Automation: Applied in various industrial automation systems such as packaging, machining, robotics, etc.
• Process Control: Used in occasions requiring high-precision motion control, such as paper processing, textiles, etc.
• Automated Production Lines: Realizes automation and flexibility of production lines.
• Power Industry: Turbine control systems, boiler control systems.
• Industrial Automation: Process control, chemical industry, etc.
• Other Fields: Including power generation, petroleum, natural gas, metallurgy, chemical engineering, etc.

VI. Installation and Maintenance

• Installation: Adopts a modular design for easy installation and maintenance. After installation, configuration can be performed through the Control System Toolbox application, including processor board, local power supply, internal sensors, flash memory, and on-board RAM.
• Maintenance: Provides a detailed user manual including instructions for installation, operation, and troubleshooting. Supports automatic reconfiguration and manual reconfiguration to ensure stable operation of the system.
• Fault Diagnosis: Abnormalities in the actuator stroke are displayed through the trend recorder, facilitating users in fault diagnosis and maintenance.

————————————————————————————————-
