1. Product Overview

2. Technical Parameters & Features

3. Core Advantages

• High Reliability & Redundancy: This module adopts a redundant design with built-in redundancy support, coupled with automatic current limiting, fault self-recovery and other comprehensive protection functions. It minimizes downtime and ensures uninterrupted and stable operation of the entire control system, even in the event of partial component anomalies.
• Modular Compact Design: Featuring a compact and streamlined structure, the module supports both DIN rail mounting and panel mounting. This flexible installation method simplifies on-site wiring, optimizes cabinet space utilization, and facilitates later maintenance, replacement and system expansion.
• Intelligent Diagnosis & Real-Time Feedback: The module is equipped with complete overcurrent/short-circuit protection and over-temperature shutdown functions. It can monitor the module’s overall health status in real time, and detect open/short circuit faults for each I/O channel, uploading accurate fault data to the main controller for timely troubleshooting.

______________________________________________________________________________________________

4. Structure & Composition

• Input/Output Interface: Equipped with dedicated digital wiring terminals, designed for stable connection with field sensors (input signals) and actuators (output control signals), ensuring reliable signal transmission between the module and field equipment.
• Communication Unit: Built-in high-performance Ethernet interface and backplane connector, enabling high-speed and stable data interaction with GE series control systems, ensuring real-time transmission of control instructions and feedback data.
• Power Management Module: Responsible for stable power input, internal power distribution, and overvoltage/undervoltage protection. It regulates power supply efficiently, avoiding damage to the module caused by abnormal power parameters and ensuring stable power support for long-term operation.

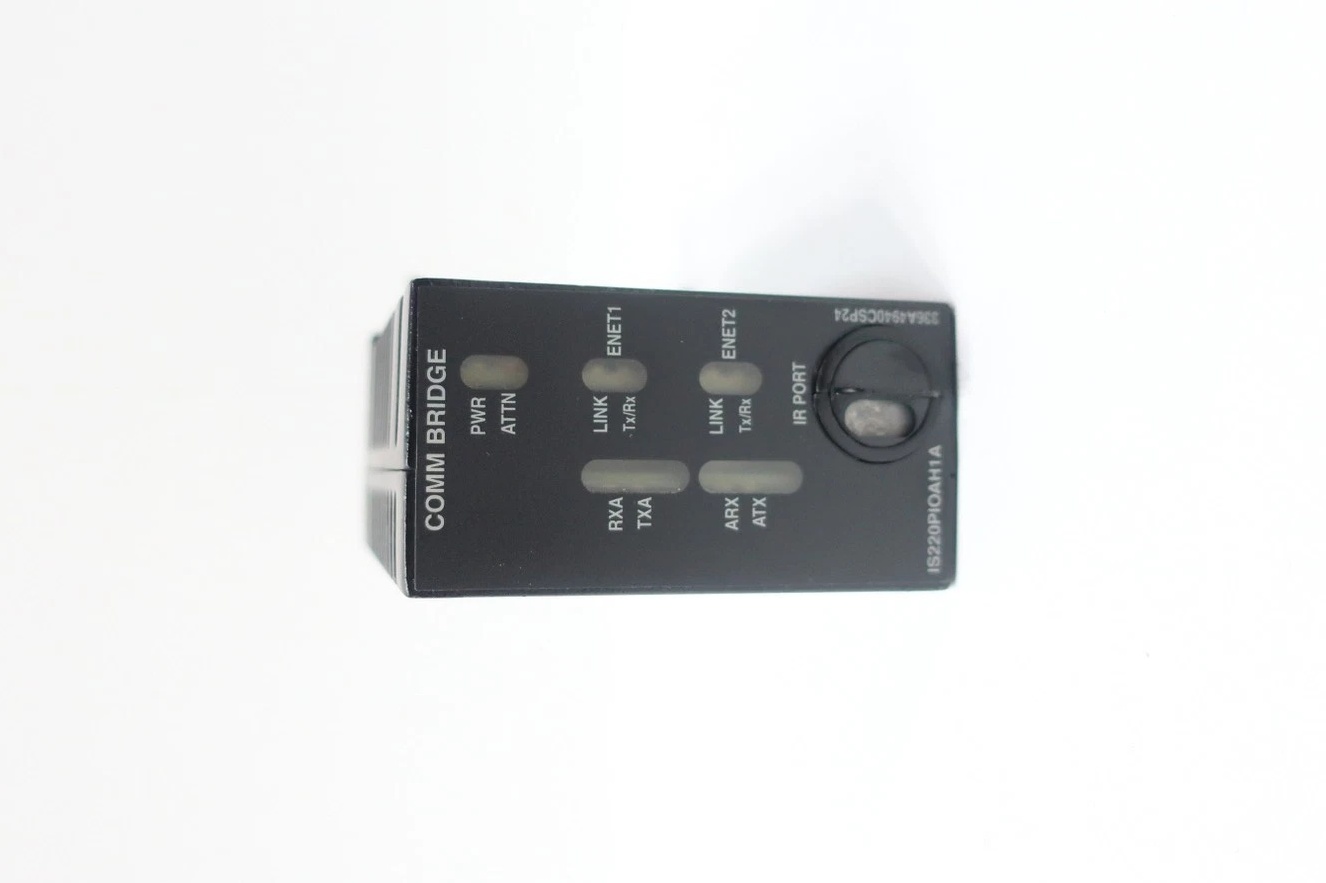

• Status Indication Unit: Integrated LED indicator array, providing intuitive visual feedback on the module’s operating status, communication status and fault conditions. Operators can quickly judge the module’s working condition through indicator colors without relying on additional diagnostic tools.

______________________________________________________________________________________________

5. Application Fields

• Power Industry: Applied in power plant automation systems (including steam turbine control, boiler control) and substation automation systems, undertaking critical data collection and equipment control tasks.
• Petrochemical Industry: Integrated into process control systems, used for precise control of key equipment such as control valves, pumps and compressors, ensuring stable and safe operation of petrochemical production processes.
• Metallurgy & Manufacturing: Deployed in intelligent production lines to monitor and control core equipment including motors, conveyor belts and industrial robots, supporting automated and efficient production operations.

______________________________________________________________________________________________

6. Installation & Maintenance Guide

6.1 Installation Steps

1. Wiring Connection: Ensure the power supply is completely disconnected before wiring. Connect the cables of field devices (such as switches, sensors) to the corresponding input/output terminals strictly in accordance with the module’s wiring diagram to avoid wrong wiring or loose connections.
2. Module Fixation: Mount the module firmly on a standard DIN rail or control cabinet panel, check the fixation firmness to prevent displacement or looseness caused by on-site vibration, and ensure stable physical installation.
3. Network Connection: Use a standard Ethernet cable to connect the module’s RJ45 interface to the industrial control network (such as the IONet of the Mark VIe control system), ensuring a reliable network connection for smooth data communication.
