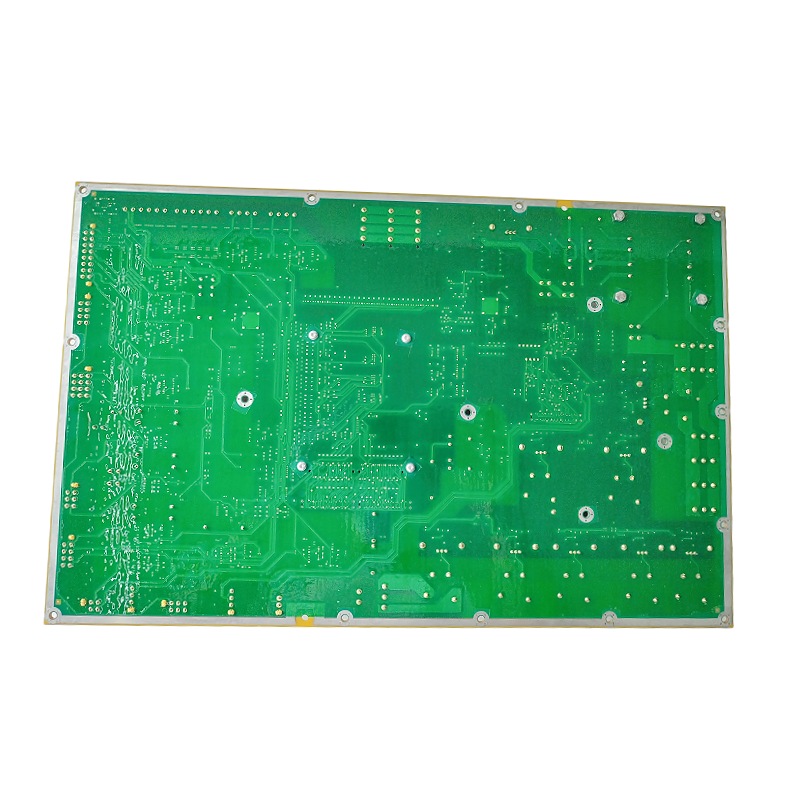

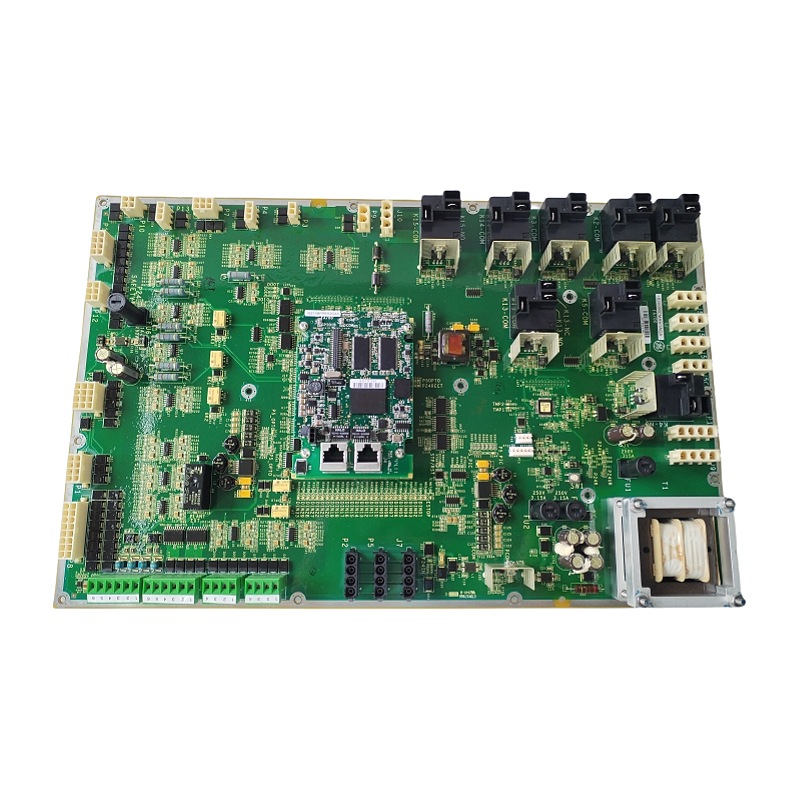

GE IS215WEMAH1A
GE IS215WEMAH1A is a key component in the Mark VI series gas turbine control system produced by GE Fanuc, a subsidiary of General Electric (GE). Specifically defined as a Water/Exhaust Monitor Analog I/O Module, it is a dedicated analog processing module for the GE Mark VI platform. Its primary function is to accurately collect and process critical sensor signals related to water circulation systems and exhaust gas emission monitoring (such as pH value, conductivity, turbidity, oxygen content, and NOₓ concentration). After processing, the data is transmitted to the system controller via the backplane bus. GE IS215WEMAH1A plays a vital role in ensuring environmental compliance and equipment protection within the system, guaranteeing that the gas turbine’s auxiliary systems operate within parameters that are both safe and environmentally friendly.
The core value of GE IS215WEMAH1A lies in its integration of high-precision signal conditioning, electrical isolation, and dedicated diagnostic functions, enabling direct connection to a variety of complex analytical instrument sensors. By providing stable and reliable data input, the module assists the main control system in achieving continuous monitoring and precise adjustment of water treatment processes and exhaust gas emissions. This effectively prevents unit tripping or environmental violations caused by water quality deterioration or excessive emissions, making it crucial for ensuring the continuous operation of power plants and compliance with environmental regulations.
Product Specifications
- Product Model: IS215WEMAH1A
- Manufacturer: General Electric (GE)
- Product Type: Dedicated Analog Input/Output Module (Water/Exhaust Monitoring)
- Affiliated System: Mark VI Control System
- Backplane Communication: VME (VersaModule Eurocard)
- Input Signal Type: 4-20mA, 0-10V DC, Thermocouple, RTD (depending on configuration and terminal board)
- Output Signal Type: 4-20mA (for control or alarm)
- Number of Channels: Typically 8 analog inputs and 2 analog outputs (specific to configuration)
- Accuracy: ±0.1% F.S. (Full Scale) or higher
- Operating Power Supply: +5V DC (provided by the rack power module via the backplane)
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Installation Method: Vertically installed in a Mark VI dedicated VME rack
Structure and Composition
The GE IS215WEMAH1A module is designed in accordance with standard VME Eurocard specifications and enclosed in a robust metal housing, which provides excellent electromagnetic shielding and physical protection. The front of the module is equipped with a series of status LED indicators, used to display module power, communication status, channel activity, and fault information—serving as the primary interface for rapid on-site diagnostics.
Internally, the core of the module is a highly integrated printed circuit board (PCB). This board integrates high-performance analog-to-digital converters (ADC) and digital-to-analog converters (DAC), precision signal conditioning circuits (including amplification, filtering, isolation, and protection circuits), a dedicated microprocessor, and VME bus interface chips. The microprocessor is responsible for managing signal scanning cycles, performing linearization calculations, conducting fault diagnostics, and exchanging data with Mark VI controllers (such as the <IS200> series controllers) via the VME backplane. The module connects to the VME backplane through edge connectors at the rear, enabling power supply access and communication.
Application Fields
The GE IS215WEMAH1A module is specifically applied in combined-cycle power plants and simple-cycle gas turbine power stations equipped with the GE Mark VI control system. Its core application is to connect and process all analog signals related to environmental protection and auxiliary system safety. Specifically, it is used for:
- Monitoring the pH value and conductivity of boiler feedwater and condensed water;
- Processing analyzer signals in Continuous Emission Monitoring Systems (CEMS) for measuring flue gas oxygen content, nitrogen oxide (NOₓ), and sulfur dioxide (SO₂) concentrations;
- Controlling related chemical dosing pumps.
Through GE IS215WEMAH1A, the control system ensures that power generation processes comply with strict environmental regulations, while protecting expensive Heat Recovery Steam Generators (HRSG) and turbine equipment from damage caused by improper water quality or abnormal combustion. It is a key guarantee for power plants to achieve safe, environmentally friendly, and efficient operation
————————————————————————————————-
