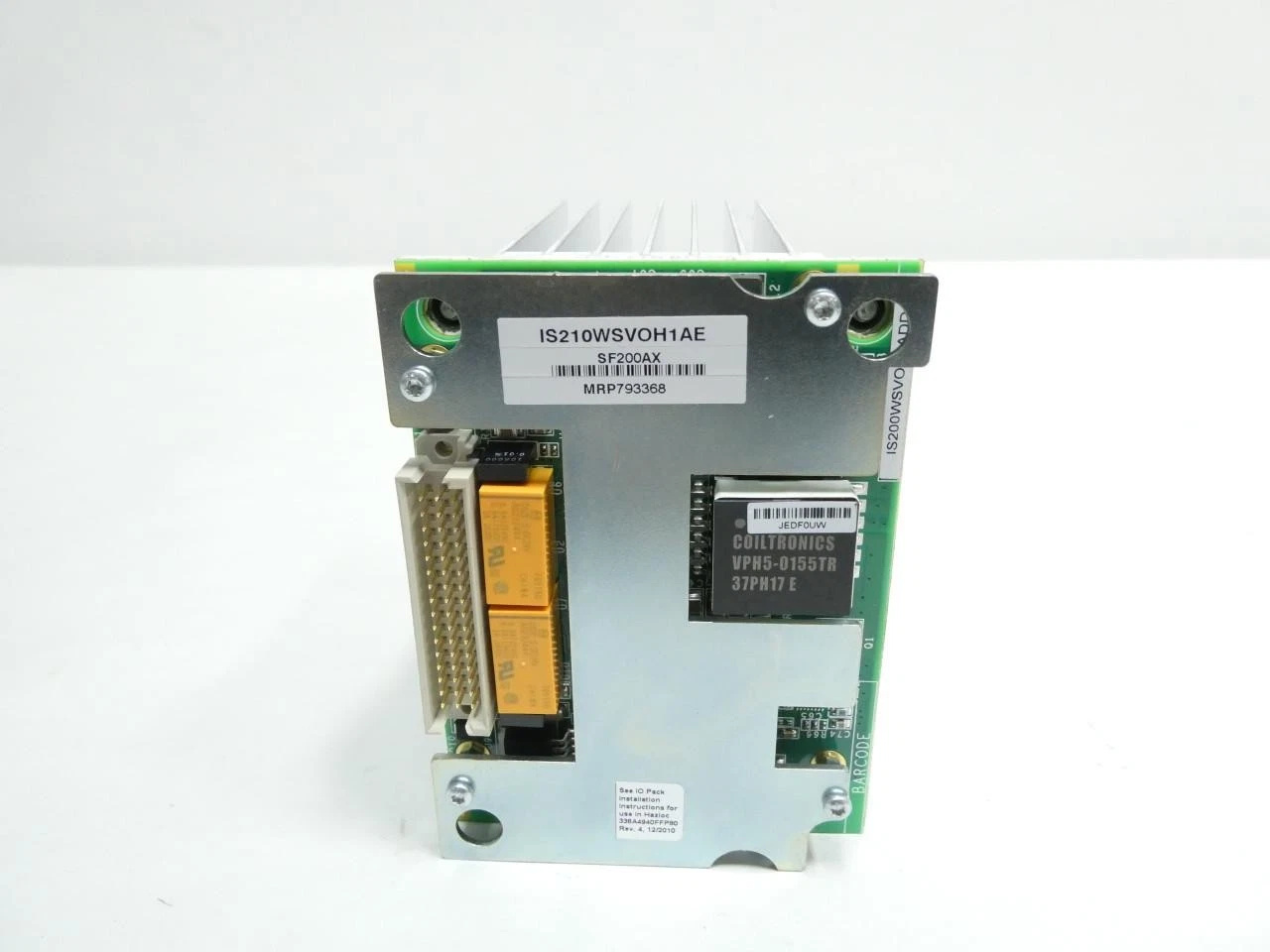

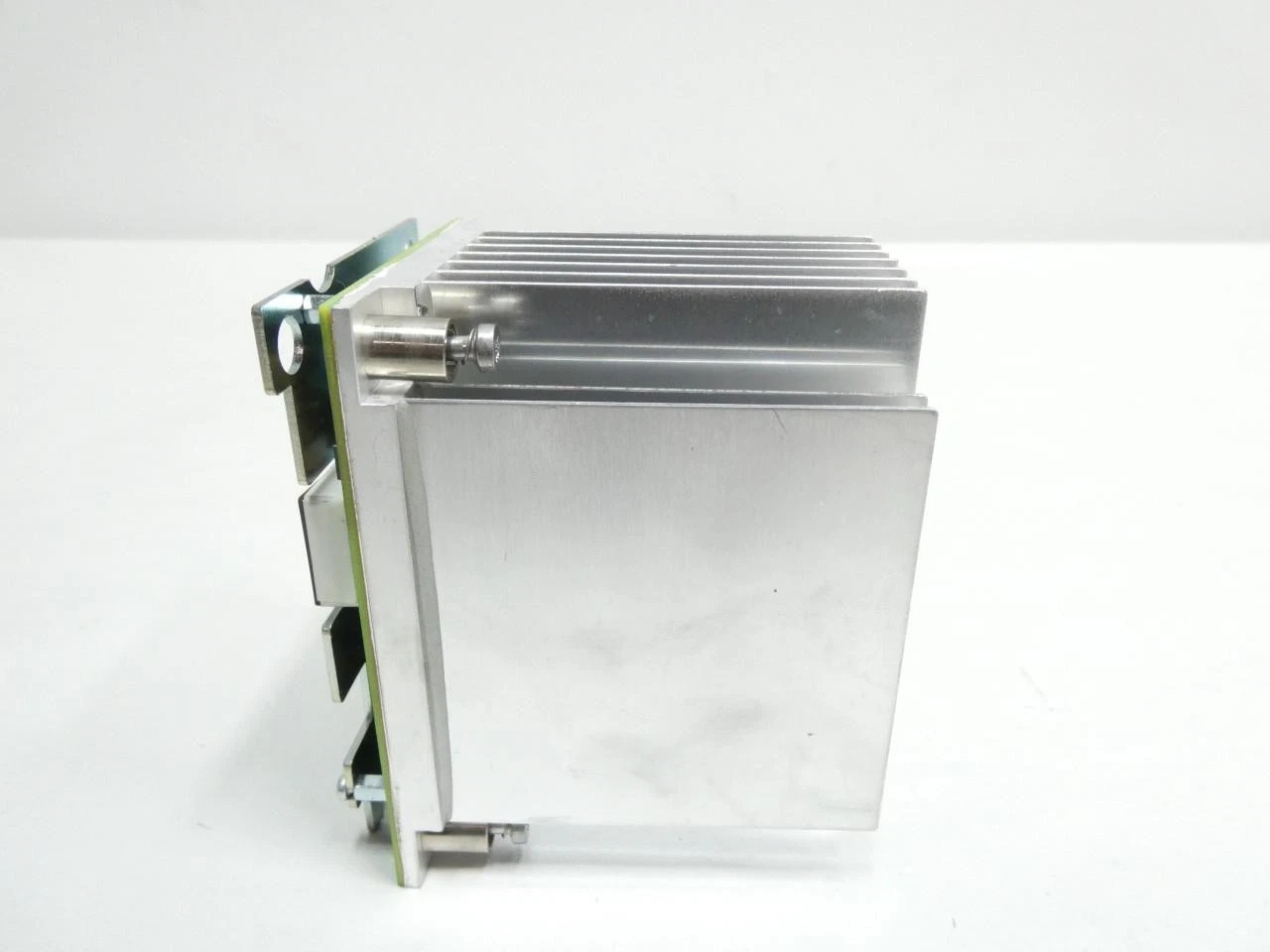

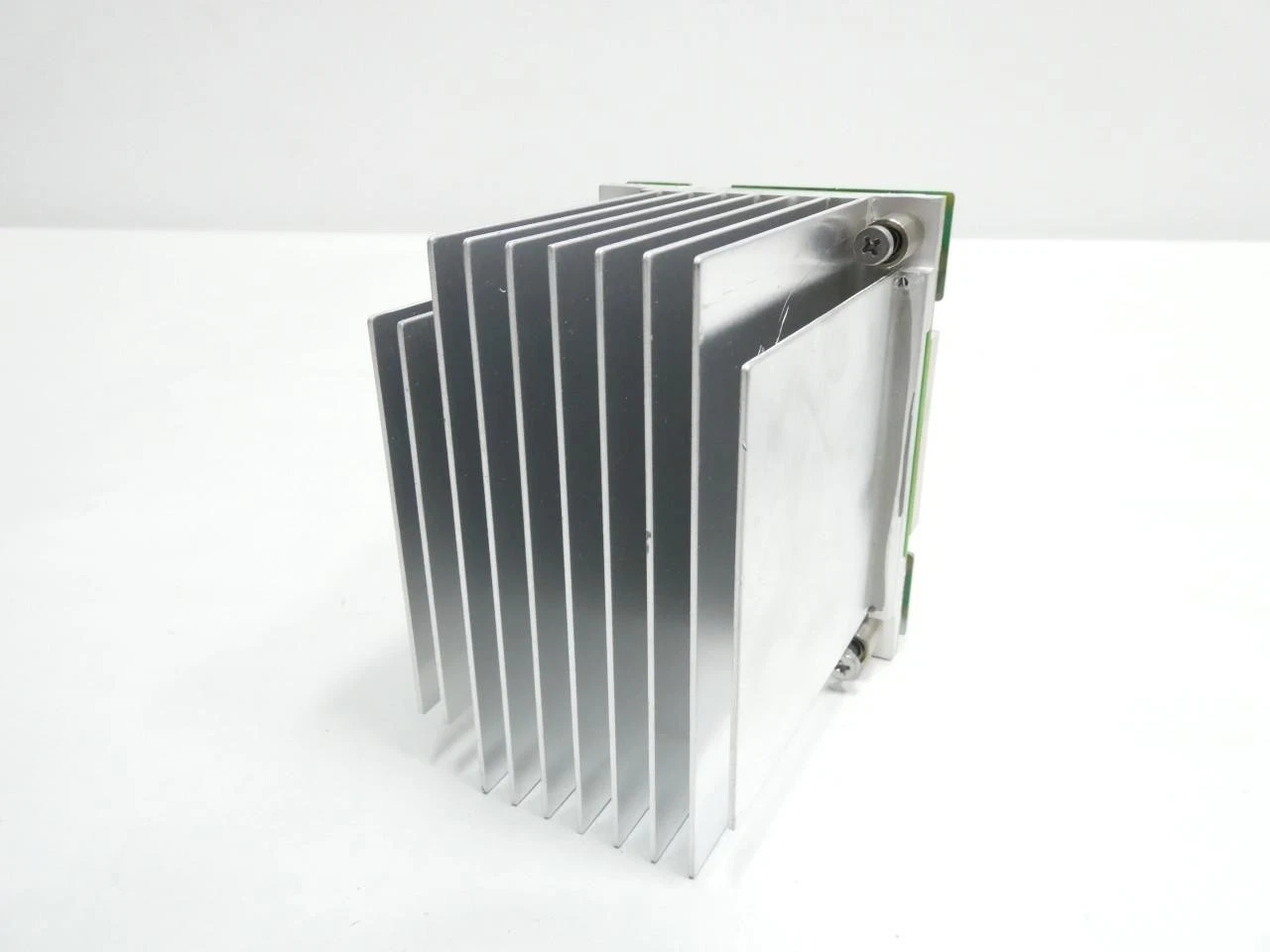

Ge IS210WSVOH1AE
1. Overview
The GE IS210WSVOH1AE is a core I/O module (I/O stands for Input/Output) under GE (General Electric)’s Mark VIe control architecture. Engineered for wind turbine generators and large-scale power systems, this module is tasked with real-time collection of on-site sensor signals and feedback to the host computer, as well as outputting control commands to field actuators.
_______________________________________________________________________________________________________
2. Core Parameters & Specifications
|
Parameter
|
Detailed Information
|
|---|---|
|
Dimensions & Weight
|
Dimensions: 4 inches × 2 inches × 1 inch (approx. 100 mm × 50 mm × 25 mm); Weight: Approx. 0.5 kg (1.1 lbs)
|
|
Operating Environment
|
Temperature Range: -40°C to 200°C (-40°F to 392°F), adaptable to extreme climatic conditions
|
|
Communication Interface
|
Supports Ethernet communication, compatible with SRTP and Modbus TCP/IP protocols
|
|
Technical Standards
|
Complies with GE’s stringent quality and reliability standards, and has passed rigorous industrial testing
|
_______________________________________________________________________________________________________
3. Key Product Features
- Ultra-High Real-Time Performance: Boasts an extremely fast response time at the microsecond (μs) level, making it highly suitable for power system fault recording and transient event monitoring.
- Wide Frequency Response Capability: Features a bandwidth of over 20kHz, enabling accurate capture of high-frequency oscillations and complex signal waveforms.
- Flexible Communication: Supports multiple protocols including Ethernet, SRTP, and Modbus TCP/IP, and allows multilingual programming via GE’s Proficy Logic Developer software.
- High Reliability: Adopts a redundant CPU design with high availability, ensuring uninterrupted operation of critical systems.
_______________________________________________________________________________________________________
4. Structure & Composition
- Signal Conditioning Circuit: Amplifies and filters sensor signals to guarantee the accuracy of data acquisition.
- Communication Controller: Enables high-speed data transmission between the module and the main control system host.
- Power Management Module: Provides a stable working power supply and integrates overload protection functionality.
_______________________________________________________________________________________________________
5. Application Fields
- Wind Power Generation: Serves as the core I/O module in wind turbine control cabinets, monitoring key parameters such as rotational speed, vibration, and temperature.
- Power Systems: Applied to real-time signal acquisition and fault recording in power plants and substations.
- Industrial Automation: Utilized in process control systems for petrochemical, metallurgical and other heavy industries.
_______________________________________________________________________________________________________
6. Installation & Maintenance Guidelines
- Installation Location: Typically mounted directly on the backplane of nacelle or tower control cabinets, compatible with GE’s IS200 series packages.
- Environmental Requirements: Ensure the installation environment falls within the specified operating temperature range, and maintain adequate ventilation and heat dissipation around the module.
- Maintenance Recommendations: Regularly inspect communication interfaces and power modules to secure wiring connections and prevent signal interference caused by environmental factors.
————————————————————————————————-
