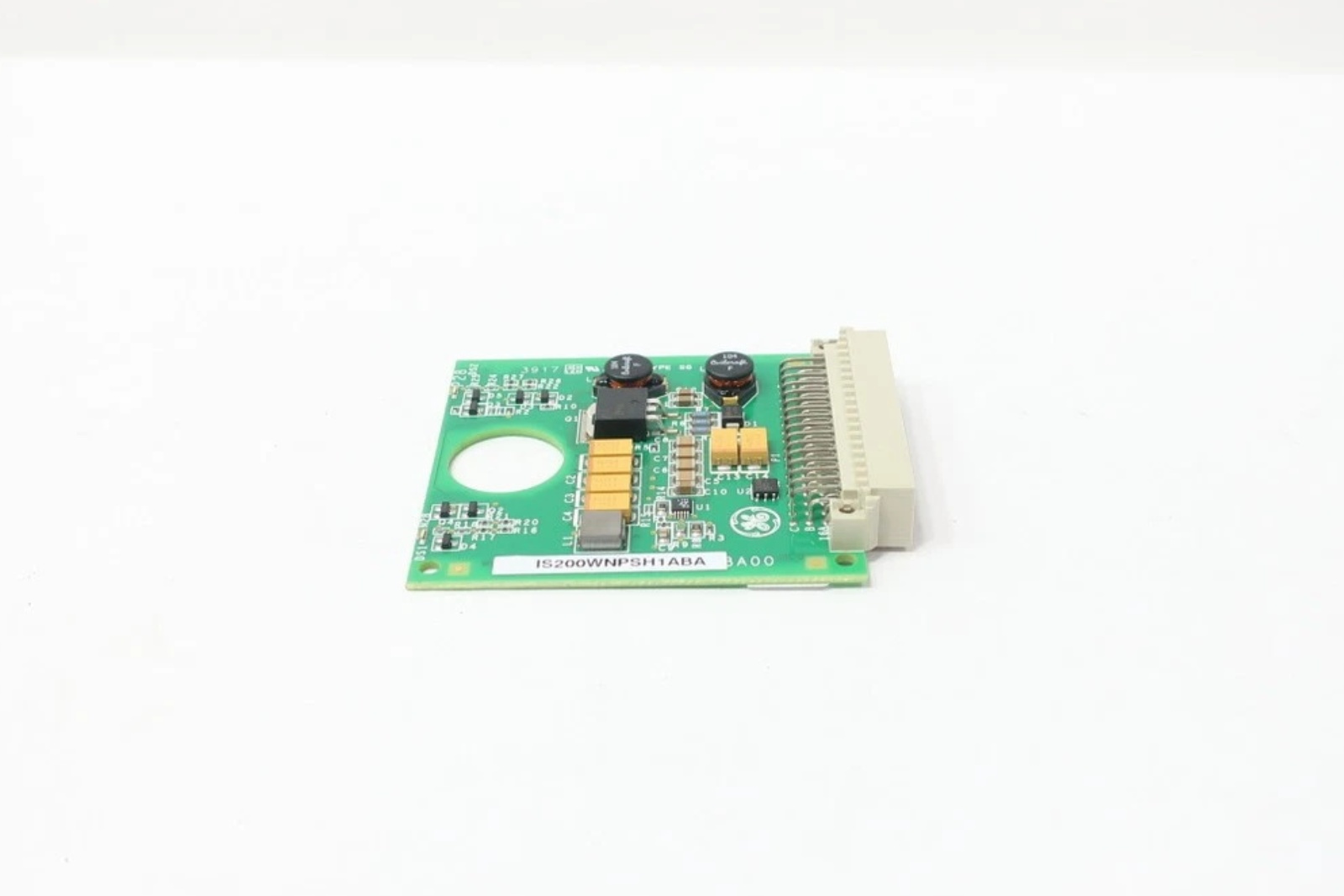

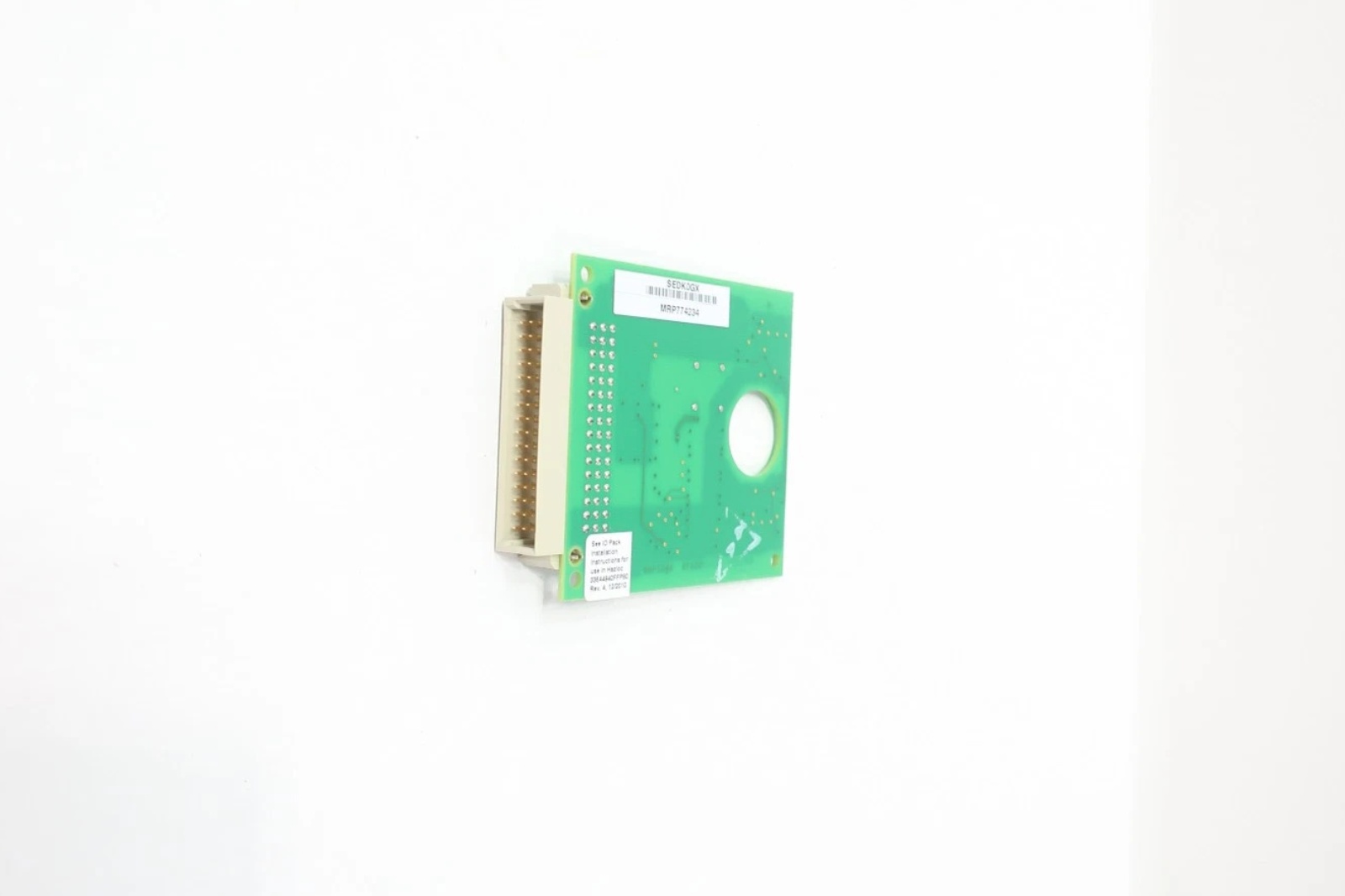

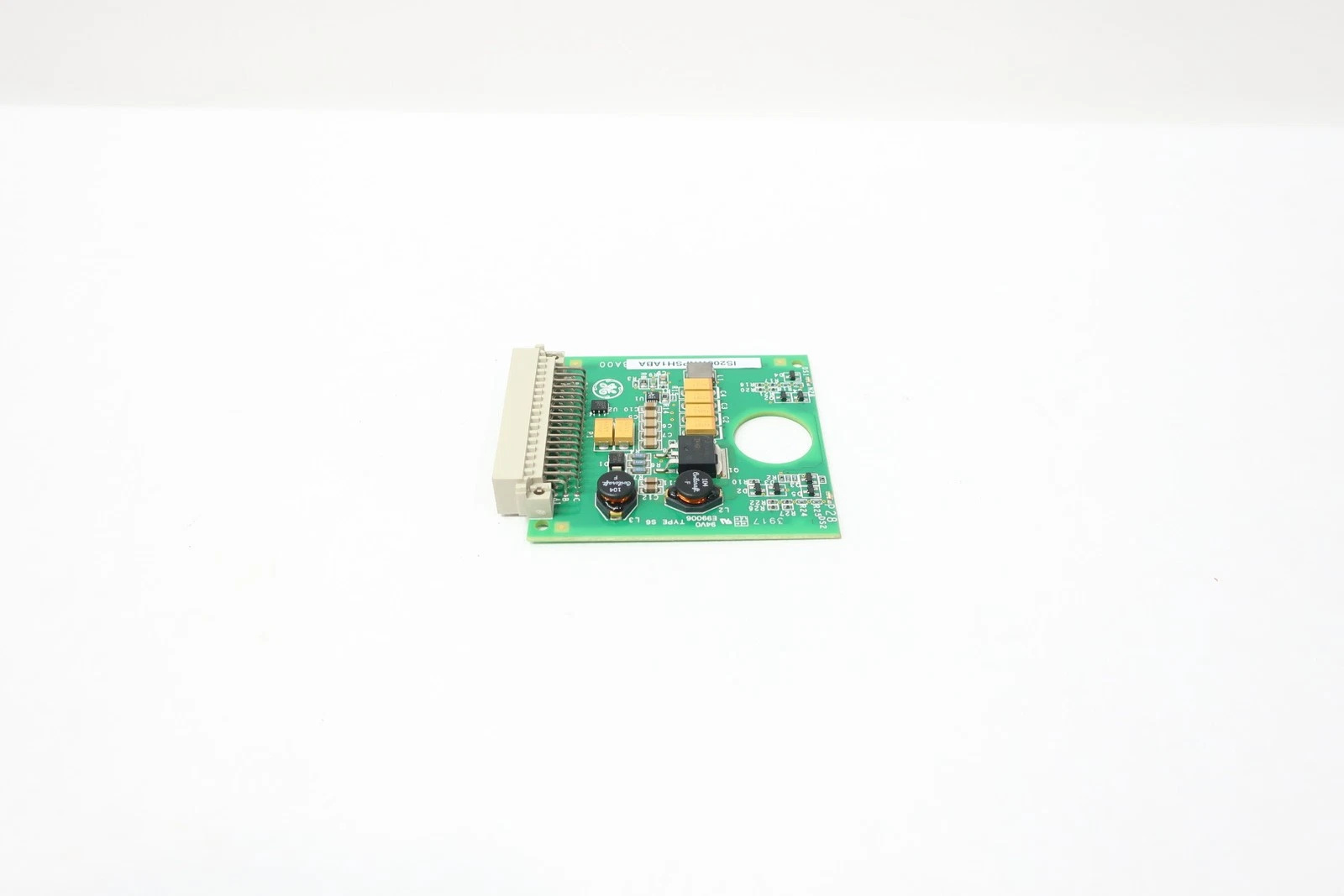

Ge IS200WNPSH1ABA
GE IS200WNPSH1ABA is a core component of the GE Mark VI series Turbine Control System. It usually exists in the form of a sub-board or backplane connector, which is used for signal interaction and data transmission with upper computers or other control modules.
______________________________________________________________________________________________________________
Key Technical Parameters
|
Parameter
|
Specification
|
|---|---|
|
Dimensions
|
Approx. 22cm × 10.2cm × 3.3cm (or 125mm x 85mm x 55mm)
|
|
Weight
|
0.2kg – 0.4kg
|
|
Operating Temperature
|
-40°C to +70°C / 0°C to 60°C
|
|
Voltage
|
120/240V AC (24V DC for some models)
|
|
Power
|
15W
|
|
Communication Interfaces
|
Modbus RTU, RS485, RS232, Ethernet
|
|
Input/Output
|
16-32 digital input/output channels, 4-8 analog input channels
|
______________________________________________________________________________________________________________
Product Features
- High Reliability: Adopts solid-state relay design with no mechanical contacts, featuring long service life and resistance to high temperature and high pressure.
- Modular Design: Small in size, easy to carry and replace quickly, suitable for large-scale industrial applications.
- Circuit Protection: Equipped with varistors, fuse arrays and voltage limiting components (such as capacitors and transistors) to provide overvoltage and overcurrent protection.
- Flexible Communication Capability: Supports multiple industrial communication protocols, facilitating integration into existing control networks.
______________________________________________________________________________________________________________
Structure and Composition
- Backplane Connector (P1): Usually a 48-pin male pin connector for insertion into the cabinet backplane.
- Female Plug Connectors (JE1/JE2): Located on the front panel for external signal wiring.
- Optical Devices: Such as three-row optical devices (D2, B2, Z2) for signal transmission or reception.
- Protection Components: Including 16-32 fuses, varistors, metal oxide varistors and high-voltage electrolytic capacitors.
______________________________________________________________________________________________________________
Application Fields
- Energy Sector: Gas turbines, steam turbines, hydropower, thermal power plant control systems.
- Manufacturing Industry: Automation control of large factories such as steel manufacturing, papermaking, and petrochemical industry.
- Other Industrial Control: Used as an I/O expansion module for PLC/DCS systems to monitor and control production processes.
______________________________________________________________________________________________________________
Installation and Maintenance Guidelines
Installation
The module is designed for plug-and-play installation and can be installed in standard NEMA®1 IP20 convection-cooled cabinets or custom cabinets. During installation, ensure that the backplane connector is aligned with the cabinet backplane, and use appropriate barrier terminals or compression terminals for wiring.
Wiring
When wiring, strictly distinguish between signal lines and power lines, and ensure that the cable specifications match the module requirements (such as 3.0mm² twisted-pair cables). Existing on-site wiring can be retained or replaced as needed.
Maintenance
Since the module integrates a large number of protection components, daily maintenance mainly focuses on the status of fuses and varistors. If the module fails, it is usually necessary to check whether the protection components are burned due to overcurrent or overvoltage, and replace them according to the manual.
————————————————————————————————-
