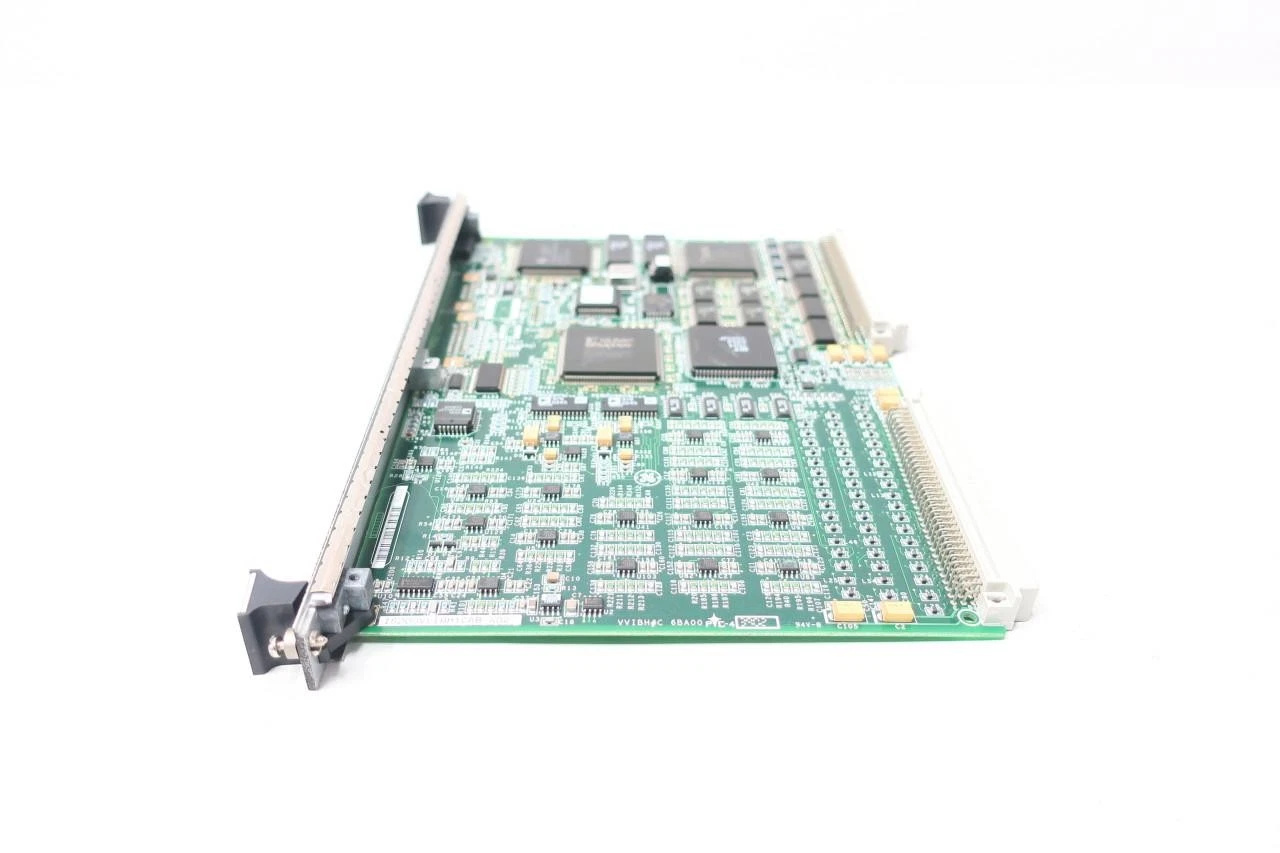

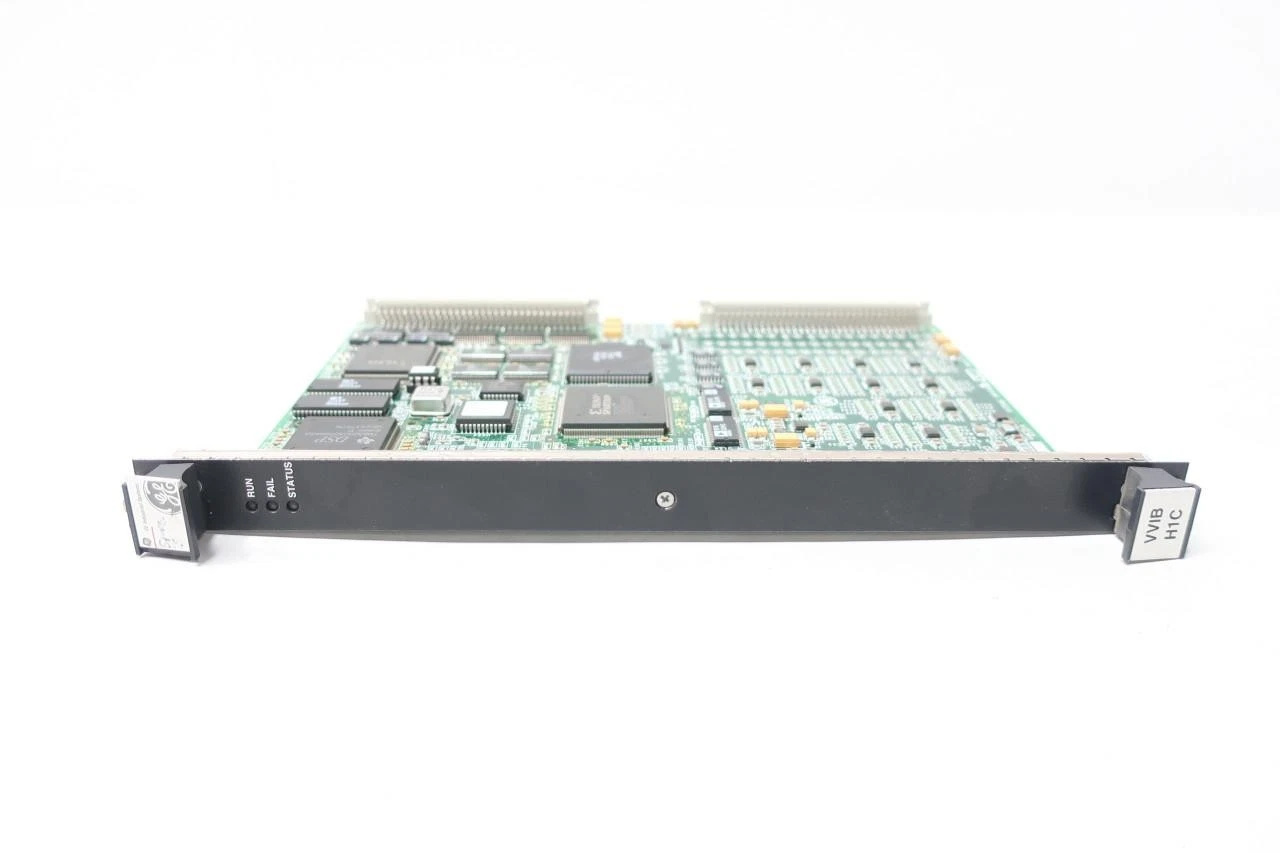

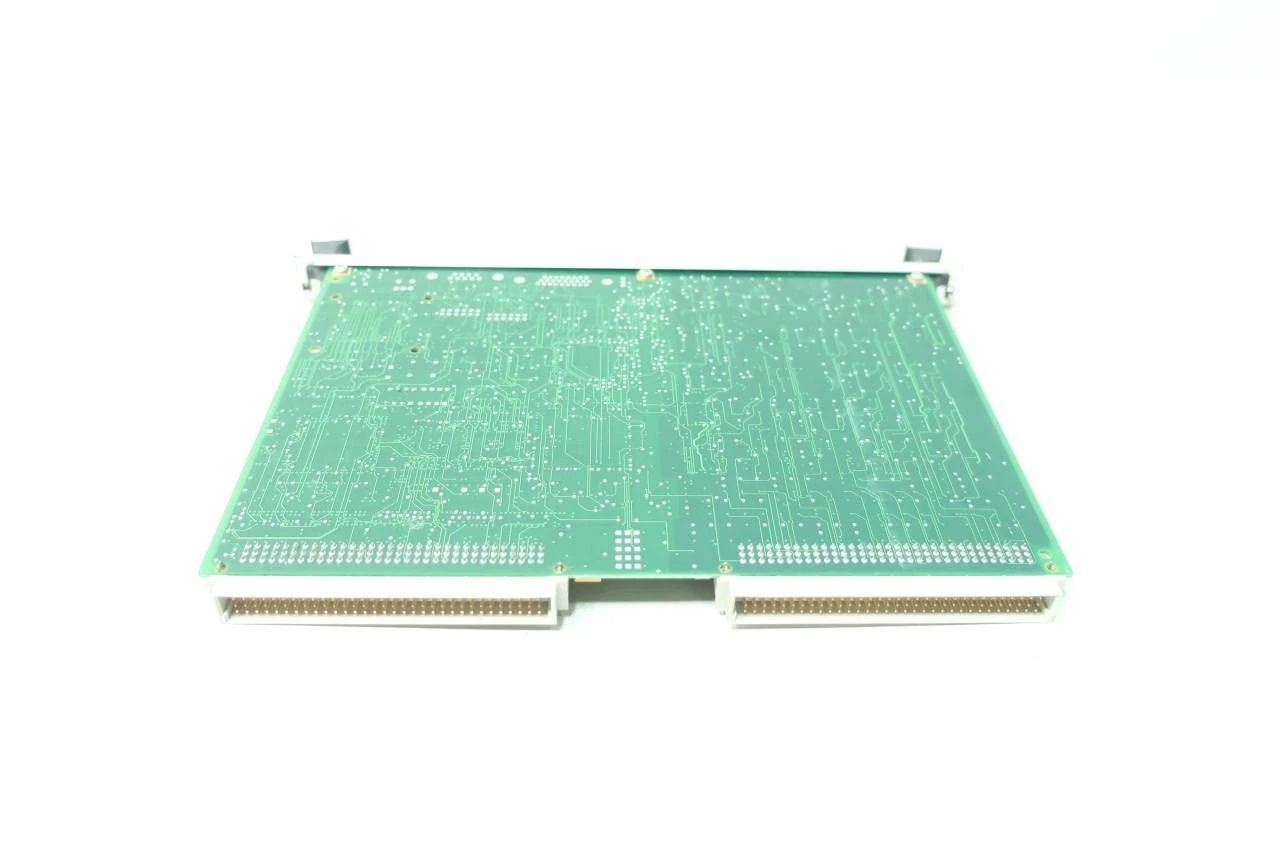

Ge IS200VVIBH1CAB-W02
1. Overview
GE IS200VVIBH1CAB-W02 is a modular electronic control unit in the field of industrial automation under General Electric (GE). This model is usually part of the GE Mark VI series (Speedtronic series), specifically designed for gas turbines, steam turbines and other industrial control systems, featuring high precision and high reliability.
______________________________________________________________________________________________
2. Specifications
|
Parameter
|
Specification/Description
|
|---|---|
|
Product Model
|
IS200VVIBH1CAB (or IS200VVIBH1CAC)
|
|
Manufacturer
|
General Electric (GE)
|
|
Input/Output Voltage
|
24V DC (±10%)
|
|
Digital Input
|
16 channels (common configuration)
|
|
Digital Output
|
16 channels (common configuration)
|
|
Analog Input
|
4 channels
|
|
Analog Output
|
2 channels
|
|
Communication Interface
|
RS-485 (Modbus RTU), Ethernet (TCP/IP), etc.
|
|
Operating Temperature Range
|
-20°C to +60°C
|
|
Protection Level
|
IP20 (must be installed in a control cabinet)
|
|
Power Consumption
|
≤15W (typical)
|
|
Installation Method
|
DIN rail mounting or panel mounting
|
|
Certification Standards
|
CE, UL, IEC 61131-2, etc.
|
______________________________________________________________________________________________
3. Product Features
- High Precision and Reliability: Adopts high-quality components to ensure long-term stable operation in high-vibration and high-temperature environments.
- Versatility: Supports multiple protection functions and communication protocols (such as RS-485, Modbus RTU, Ethernet/IP, etc.), and can conduct fault diagnosis through remote diagnostic functions.
- Compact Design: Modular design, suitable for installation in control cabinets with limited space.
- Strong Compatibility: Can be seamlessly integrated with various sensors (such as temperature sensors, pressure sensors) and controllers.
______________________________________________________________________________________________
4. Structure and Composition
- CPU Control Unit: Responsible for executing logical operations and control instructions.
- I/O Interface Board: Provides input and output interfaces for digital and analog signals.
- Communication Board: Supports network communication (such as Ethernet, RS-485).
- Power Supply Module: Converts external power into the working voltage required by the module.
- Connection Terminals: Used to connect on-site equipment (sensors, actuators, etc.).
______________________________________________________________________________________________
5. Application Fields
- Power Generation Industry: Operation control and management of gas turbines and steam turbines.
- Process Control: Automatic control of continuous production processes such as chemical industry and petrochemical industry.
- Manufacturing Industry: Precision control systems for complex mechanical equipment.
______________________________________________________________________________________________
6. Installation and Maintenance
Installation Methods
- Rail Mounting: Usually installed on a standard 35mm DIN rail for easy modular expansion.
- Panel Mounting: Some models support direct panel mounting, which needs to be firmly fixed.
Environmental Requirements
- Must be installed in a control cabinet with a protection level of IP20 or above to avoid direct exposure to dust or moisture.
- Ensure good ventilation to avoid overheating caused by long-term operation.
————————————————————————————————-
