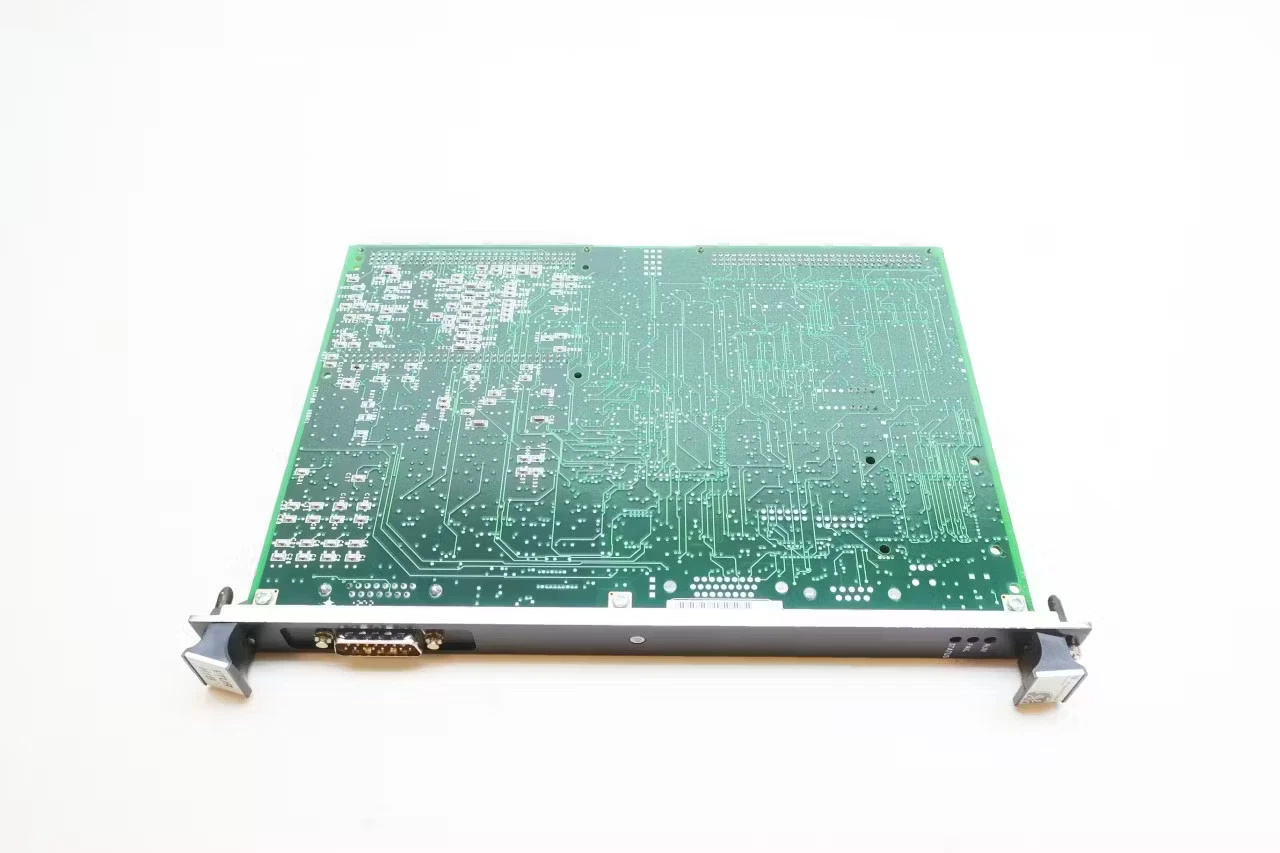

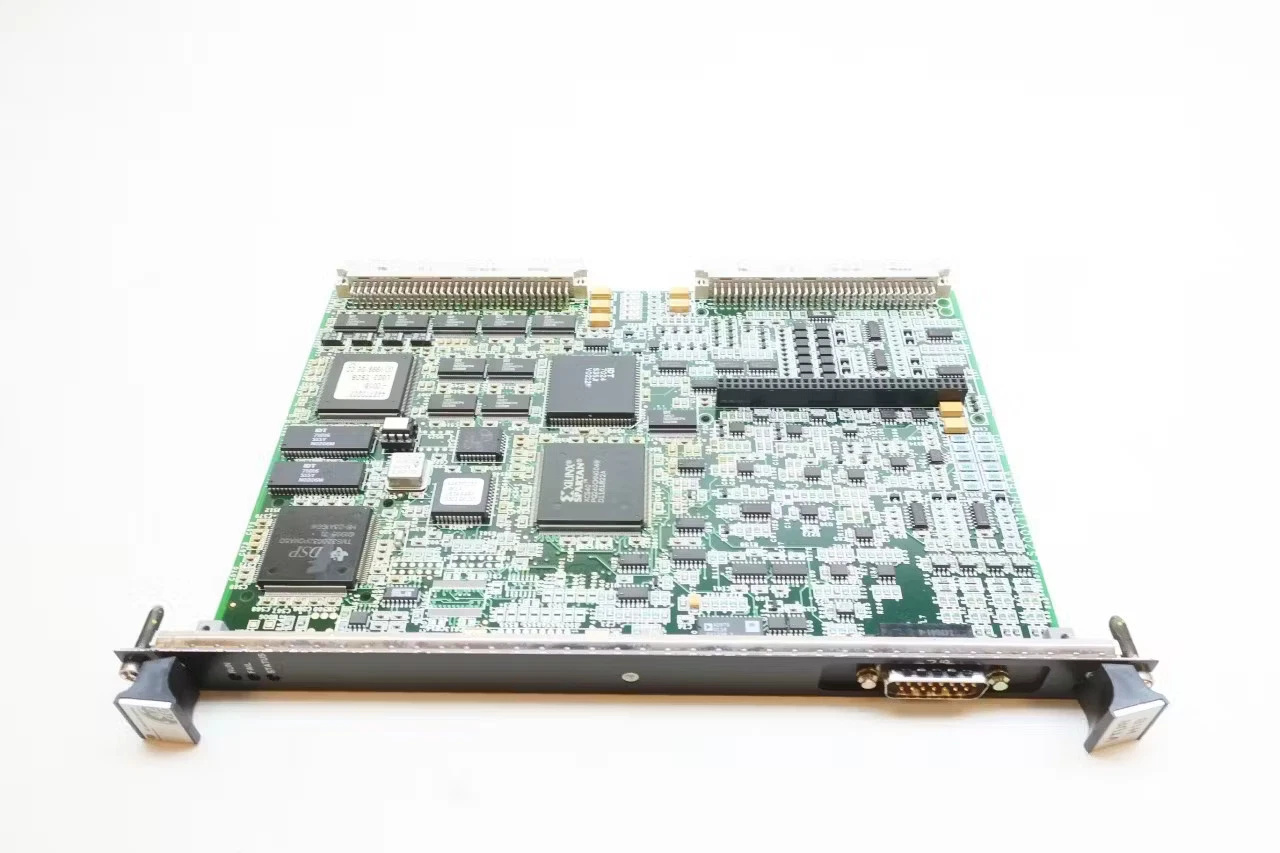

Ge IS200VTURH1BAA Printed Circuit Board

The GE IS200VTURH1BAA is a high-speed application printed circuit board (PCB) engineered exclusively for the GE Mark VI control system.

Ge IS200VTURH1BAA

1. Overview

The GE IS200VTURH1BAA is a high-speed application printed circuit board (PCB) engineered exclusively for the GE Mark VI control system. Classified as a Primary Turbine Protection Card, this industrial-grade component serves as a critical safeguard for turbine operations, continuously monitoring and regulating core operating parameters to maintain safe, stable, and compliant performance across all operating scenarios. It is purpose-built to mitigate operational risks and prevent catastrophic failures in turbine-driven equipment, aligning with strict industrial safety and reliability standards.

____________________________________________________________________________________________________________

2. Technical Specifications

Operating Voltage: 24V DC
Input Voltage Range: 24V DC (wide voltage compatibility for industrial environments)
Maximum Current: Approximately 2A
Operating Temperature Range: -40°C to 85°C (industrial-grade rugged design for extreme environments)
Interface: Supports multiple input/output (I/O) signal connections, compatible with standard turbine monitoring points including speed, temperature, pressure, and vibration sensors

____________________________________________________________________________________________________________

3. Key Product Features

Multi-Parameter Monitoring: Delivers comprehensive real-time monitoring of critical turbine operating metrics, including rotational speed, internal/external temperature, fluid pressure, and mechanical vibration. This full-scope monitoring ensures full visibility into turbine health and operational status at all times.
High-Speed Response Capability: Optimized for high-frequency industrial applications, the PCB enables ultra-fast response to emergency conditions such as turbine overspeed and overcurrent events. Its rapid signal processing and actuation capabilities minimize response latency, preventing equipment damage and unplanned downtime.
Superior Compatibility: Fully compatible with the GE Mark VI TMR (Turbine Mainframe) control system, offering seamless integration with a wide range of turbine controller models. This universal compatibility reduces retrofitting complexity and ensures consistent performance across diverse turbine setups.

____________________________________________________________________________________________________________

4. Structure & Components

I/O Terminal Blocks: Dedicated connection terminals for secure wiring of external sensor signals and control loop circuits, ensuring stable signal transmission and anti-interference performance in harsh industrial settings.
Logic Processing Circuitry: Built-in high-performance logic processing modules that execute real-time data analysis, logical judgment of input signals, and precise output of control commands. This core circuitry drives the card’s protective and regulatory functions with high accuracy.
Built-In Safety Protection Mechanisms: Integrated comprehensive protection features including overcurrent protection, overvoltage protection, and short-circuit protection. These fail-safes shield the PCB and connected turbine equipment from electrical faults, enhancing overall system durability.

____________________________________________________________________________________________________________

5. Application Areas

Power Station Turbine Control: Widely deployed in the main control systems of gas turbines and steam turbines, serving as a core protective component for power generation turbine assets in utility and industrial power stations.
Power Plant Automation: Functions as an integral part of the GE Mark VI control system, seamlessly integrated into the automated control architectures of large-scale power plants. It supports end-to-end automated operation, monitoring, and protection for enhanced power generation efficiency and safety.

____________________________________________________________________________________________________________

6. Installation & Maintenance Guidelines

6.1 Installation Requirements

The GE IS200VTURH1BAA board is designed for installation within a VME processor backplane. Critical Safety Note: All installation and removal procedures must be performed with the system completely powered off to prevent electrical hazards, component damage, and system malfunctions.

6.2 Installation Method

Secure the board by engaging the top and bottom levers to lock the edge connector into place, then fasten with captive screws for a rigid, vibration-resistant fit. The front panel is equipped with intuitive status indicator lights (including status, fault, and operation indicators) for quick visual monitoring of the card’s working status.

————————————————————————————————-
