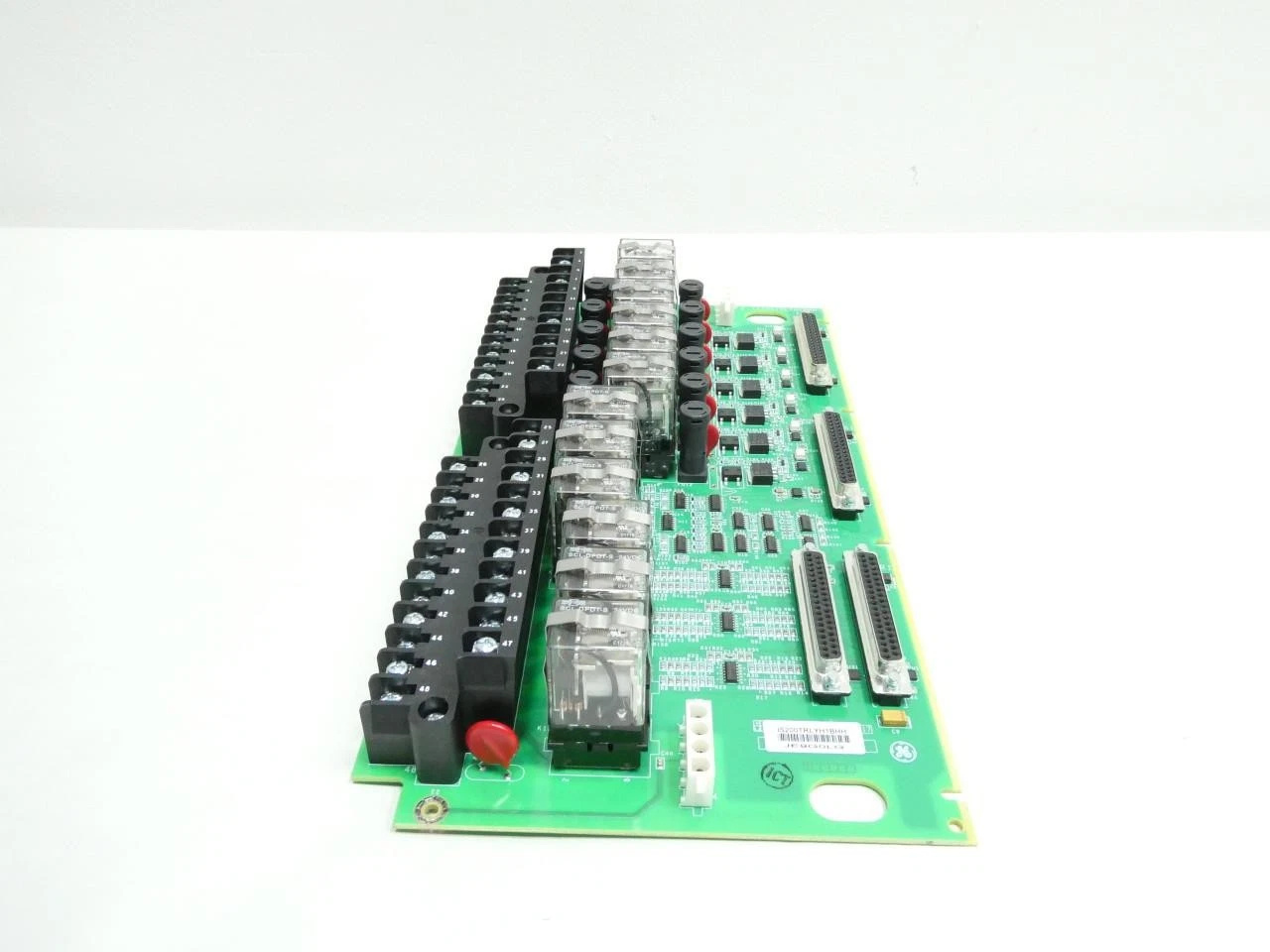

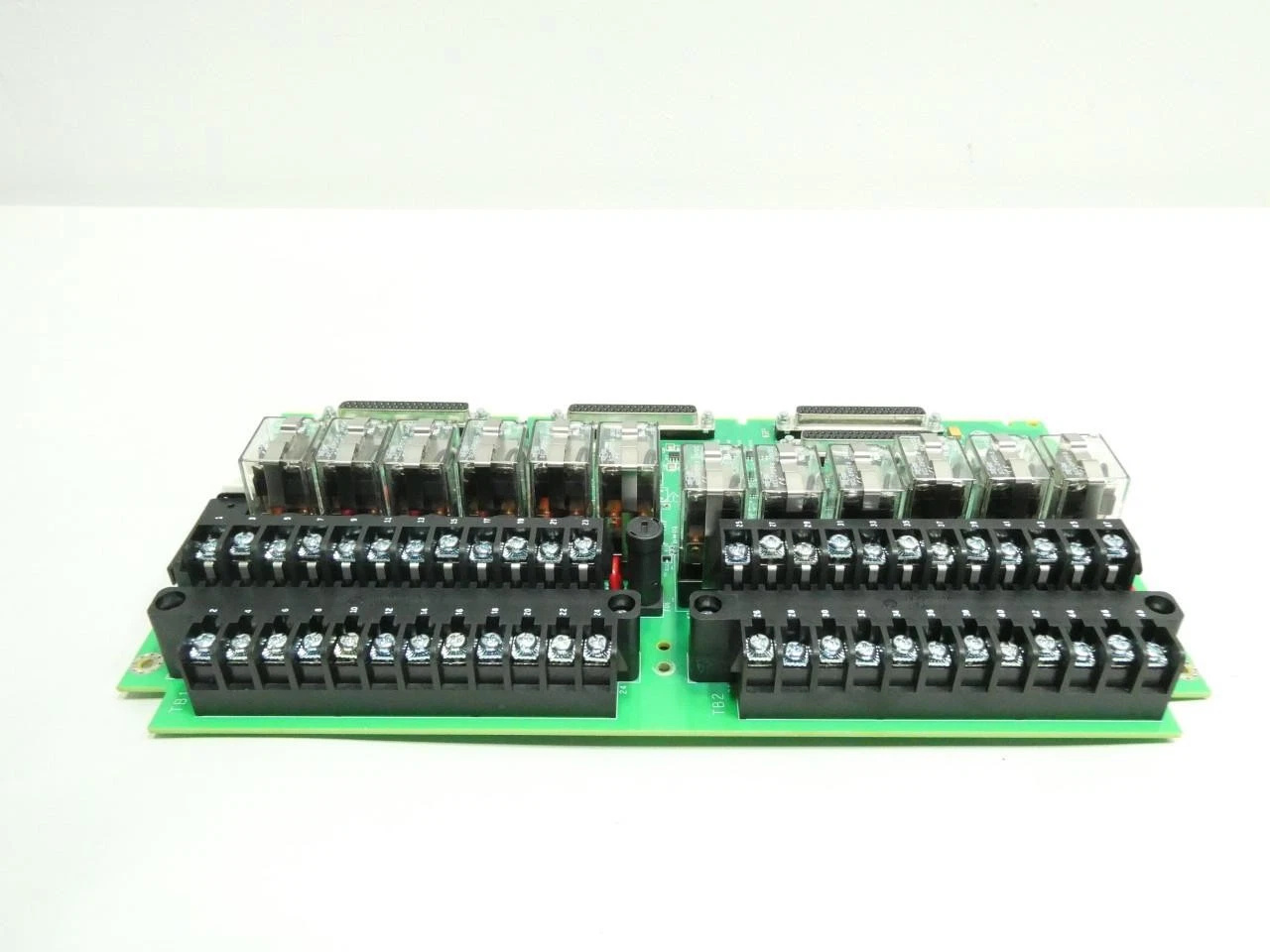

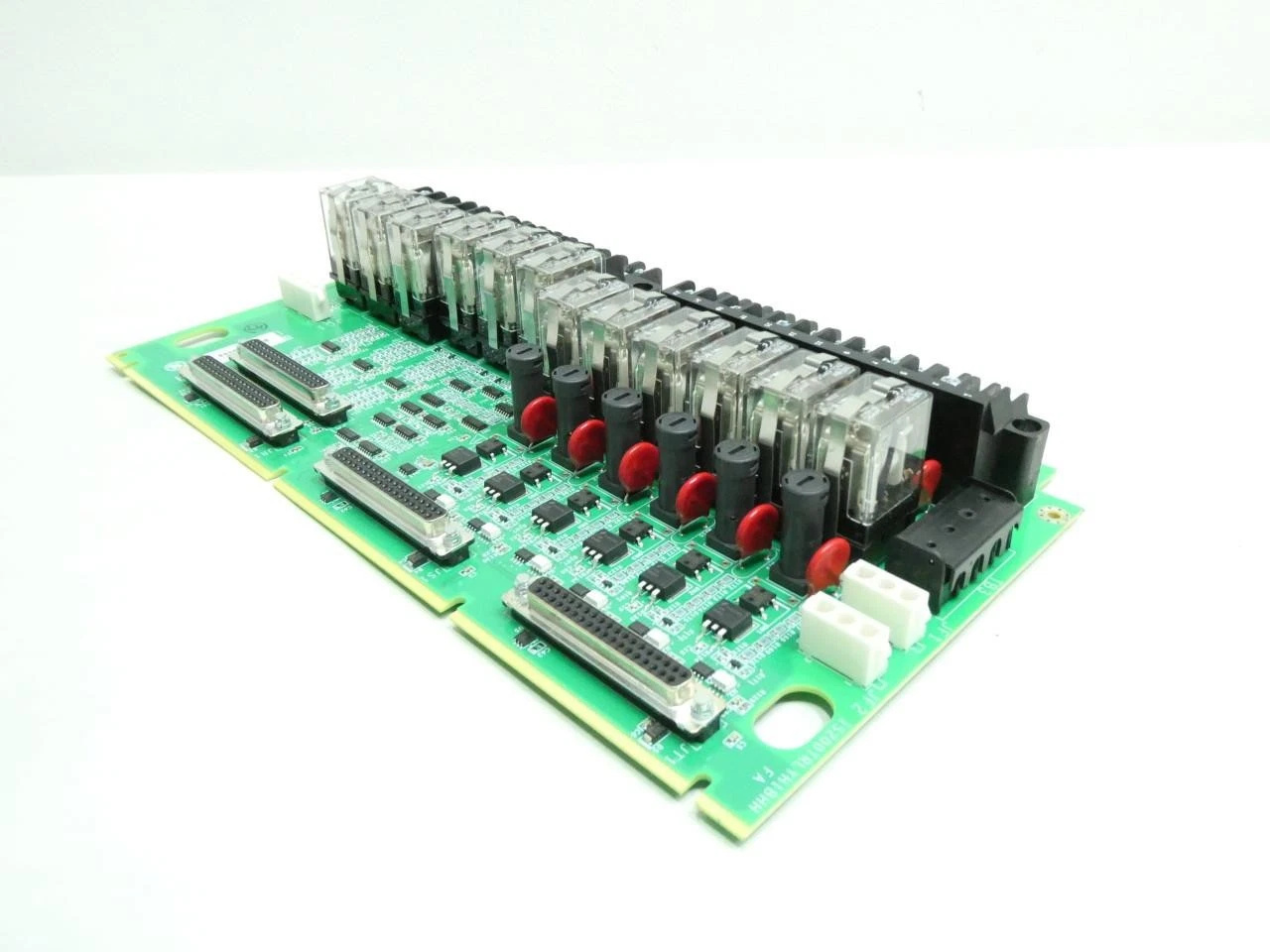

Ge IS200TRLYH1BHH
The GE IS200TRLYH1BHH is a highly reliable relay output interface module developed by General Electric (GE) specifically for the Mark VIe Turbine Control System. Engineered exclusively for gas turbines, steam turbines, and high-voltage power systems, this module is tasked with converting digital commands from the control system into tangible mechanical operations (such as valve opening/closing and motor start/stop functions), serving as a critical component for ensuring the safe and stable operation of turbine units.
___________________________________________________________________________________________________
1. Key Technical Specifications
|
Specification
|
Description
|
|---|---|
|
Model
|
IS200TRLYH1BHH
|
|
Type
|
Relay Output Module
|
|
Rated Voltage
|
24 VDC (Direct Current)
|
|
Output Channels
|
Multi-channel (typically 8+ channels), subject to specific panel configuration
|
|
Load Capacity
|
Each relay channel generally supports a control current of approximately 2A, suitable for small and medium-power control equipment
|
|
Operating Temperature
|
-40°C to +70°C, suitable for harsh industrial environments
|
|
Communication Protocol
|
GE proprietary communication protocols (e.g., B3-480), enabling seamless integration with Mark VIe main controllers
|
|
Redundancy Support
|
Designed for redundant systems, supporting single, dual, or triple redundant architectures to ensure uninterrupted operation in the event of a fault
|
___________________________________________________________________________________________________
2. Core Product Features
High Reliability and Redundancy
Built to GE’s stringent high-reliability standards, the module features exceptional vibration resistance and shock resistance to withstand demanding industrial operating conditions. It supports full redundant system configuration; in the event of a single module failure, the system automatically switches to backup channels, eliminating operational interruptions and safeguarding turbine unit safety at all times.
Digital Isolation and Safety
The module implements electrical isolation between input signals and output loads, effectively suppressing electrical noise and electromagnetic interference (EMI). This critical isolation design protects the core control system from external electrical faults, short circuits, and transient surges, enhancing overall system safety and operational stability.
Multi-Protocol Compatibility
While primarily communicating via GE proprietary protocols for native Mark VIe system compatibility, the module also supports mainstream industrial communication standards including IEC 61850, DNP3.0, and Modbus. This versatile compatibility simplifies integration with third-party control systems, SCADA platforms, and peripheral industrial equipment, facilitating flexible system expansion.
Diagnostics and Maintenance
Equipped with built-in self-test (BIST) functionality, the module provides real-time status monitoring and fault reporting, including alerts for overload conditions, short circuits, and connection failures. This proactive diagnostic capability streamlines troubleshooting for maintenance personnel, minimizing downtime and simplifying routine upkeep.
___________________________________________________________________________________________________
3. Structure and Components
- Terminal Block: Used for connecting external loads such as valves and motor cables, available with screw-fastened or quick-connect plug designs for secure, efficient wiring and field installation.
- Indicator Lights: Integrated on the module panel to clearly display real-time operating status, fault alarms, and channel activity, enabling quick visual inspection of module performance.
- Heat Dissipation Design: Features a robust metal enclosure and integrated heat sinks to maintain optimal thermal stability during prolonged high-load operation, preventing overheating and extending service life.
- Communication Interface: Dedicated port for connecting to Mark VIe main controllers or upper-level host systems, ensuring high-speed, accurate data transmission and seamless control signal exchange.
___________________________________________________________________________________________________
4. Installation and Maintenance Recommendations
Installation Requirements
- DIN Rail Mounting: The module is designed for standard DIN rail installation, ensuring secure fixation, optimized space utilization, and simplified cabinet layout management in industrial control cabinets.
- Protection Rating: Recommended for installation in dust-proof, moisture-resistant control cabinets to avoid circuit short circuits, corrosion, and component damage caused by humid or contaminated environments.
Wiring Specifications
- Correct Polarity: Verify power polarity strictly when connecting external devices; reversed polarity may cause irreversible damage to the module or connected load equipment.
- Load Matching: Select external loads that align with the module’s rated current specifications; overloading the module beyond its rated capacity is strictly prohibited to prevent performance degradation or failure.
————————————————————————————————-
