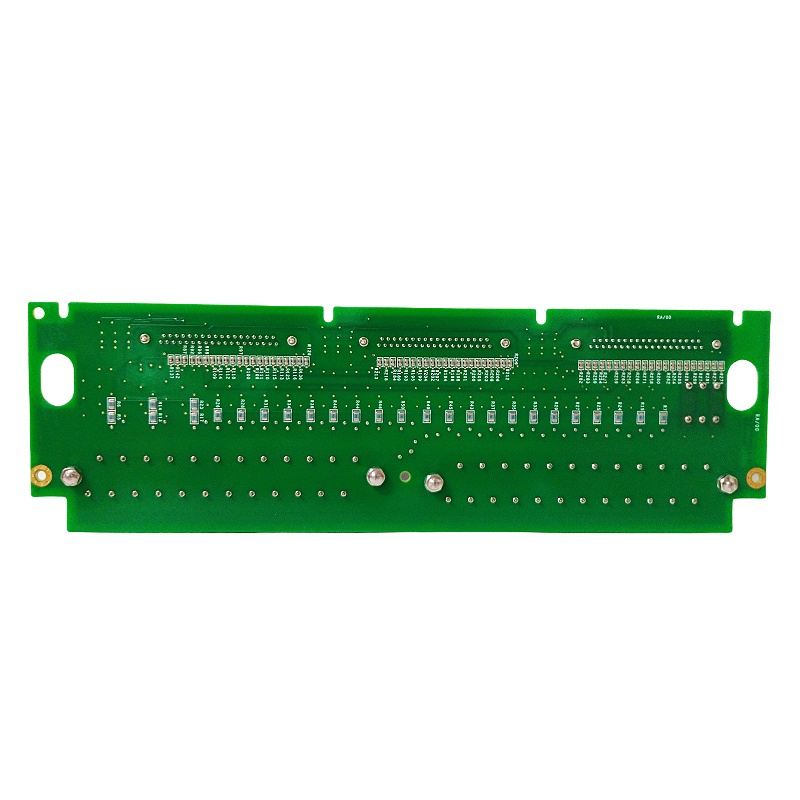

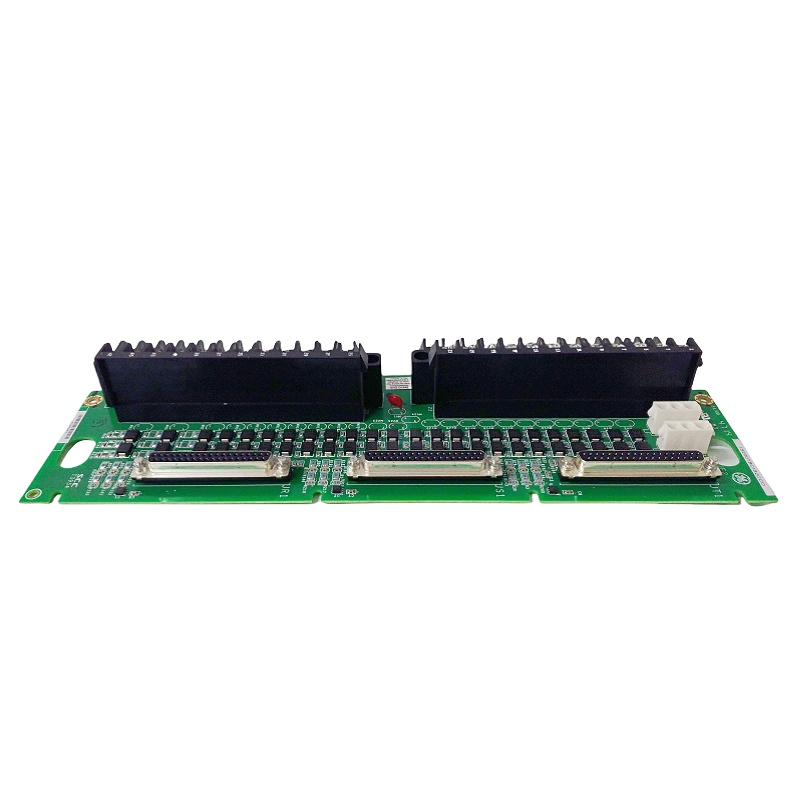

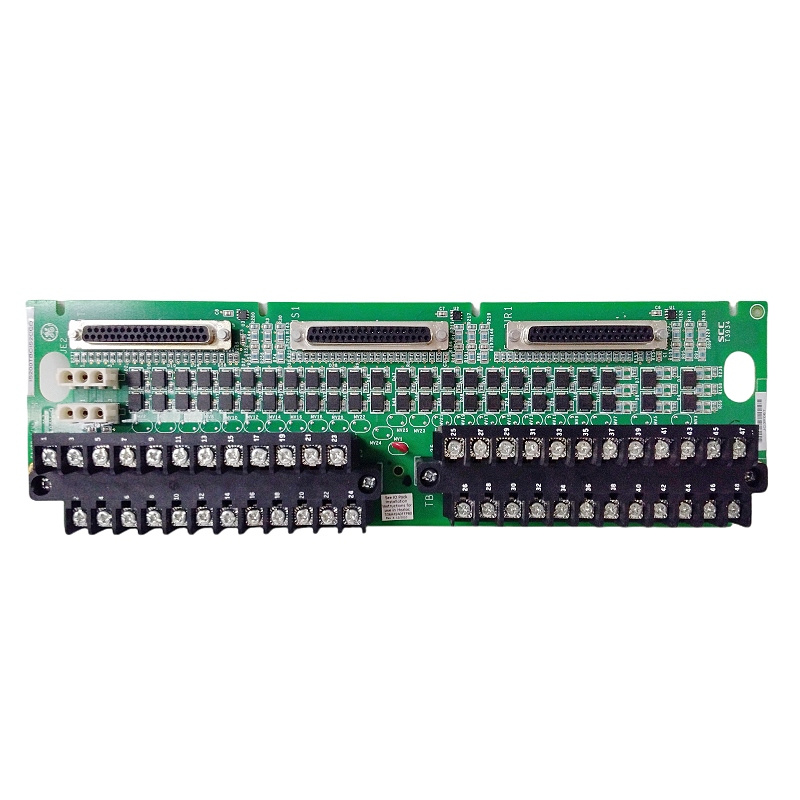

GE IS200TBCIS2CCD

Overview

Parameters

• Model: IS200TBCIS2CCD
• Type: Digital input module
• Dimensions: 13.39 inches x 8.5 inches x 2.17 inches (approximately 340 mm x 216 mm x 55 mm)
• Weight: 2.2 pounds (approximately 1.0 kg)
• Voltage: 24 VDC
• Power Consumption: 10 watts
• Operating Temperature: -40°C to +85°C
• Humidity Range: 5% to 95% (non-condensing)
• Communication Interfaces: Ethernet, RS485
• Input/Output Channels: 16 digital input channels, 16 digital output channels
• Response Time: 10ms
• Input/Output Range: 0 to 24V DC

Product Features

• High Performance: Manufactured with high-quality materials, ensuring excellent reliability and durability.
• High Reliability: Suitable for harsh industrial environments, guaranteeing stable system operation.
• Flexibility: Supports multiple configuration options, making it applicable to different industrial applications.
• Ease of Use: Compact in size, easy to install, and suitable for use in space-constrained environments.
• Expandability: Supports seamless integration with other control systems, PLCs, sensors, actuators, and other devices.
• Compatibility: Compatible with control systems such as Mark VI, Mark VIe, and Mark VIeS.

Structure and Composition

• Control Circuit Board: Responsible for processing and transmitting digital signals.
• Isolation Terminal Blocks: Groups of isolation terminal blocks with contact inputs for connecting external devices.
• Communication Interfaces: Including Ethernet and RS485 interfaces for communication with the main control system.
• Power Supply Module: Provides 24V DC power supply to ensure the normal operation of the module.

Application Fields

• Industrial Automation: Used for monitoring and controlling various industrial process parameters such as temperature, pressure, and liquid level.
• Power Energy Management: Used to manage the control functions of industrial gas turbines and steam turbines.
• Manufacturing Industry: Used for controlling industrial equipment such as robot control, CNC machine tools, packaging machinery, printing machinery, and semiconductor manufacturing equipment.
• Transportation: Used for the control and monitoring of transportation systems.
• Aerospace: Used in control systems in the aerospace field.

Installation and Maintenance

• Installation Methods: Supports DIN rail or panel mounting, facilitating installation and maintenance.
• Installation Steps:
  1. Confirm that the input voltage and output voltage meet the requirements.
  2. Install the module in a dry and well-ventilated place.
  3. After confirming that the module is connected correctly, turn on the power.
  4. In case of abnormal conditions during use, stop using it immediately and contact after-sales personnel.
• Maintenance Recommendations:
  • Regularly check the connection and operation status of the module.
  • Keep the environment around the module clean and dry.
  • Avoid using it in environments with high temperature, high humidity, or corrosive gases.

————————————————————————————————-
