Model Number:IS200EGPAG1BCA

Manufacturer:General Electric

Product Type:Gate Pulse Amplifier Board

Series:EX2100 Excitation Control

On-board Components:5 on-board jumpers, green and red LED indicators

Weight:1 lbs 9 oz

Dimensions:Not specified

Function Interface:Controls to Power Bridge

Functional Acronym:EGPA

Instruction Manual:GEI-100461 (GEH-6632 Series Manual)

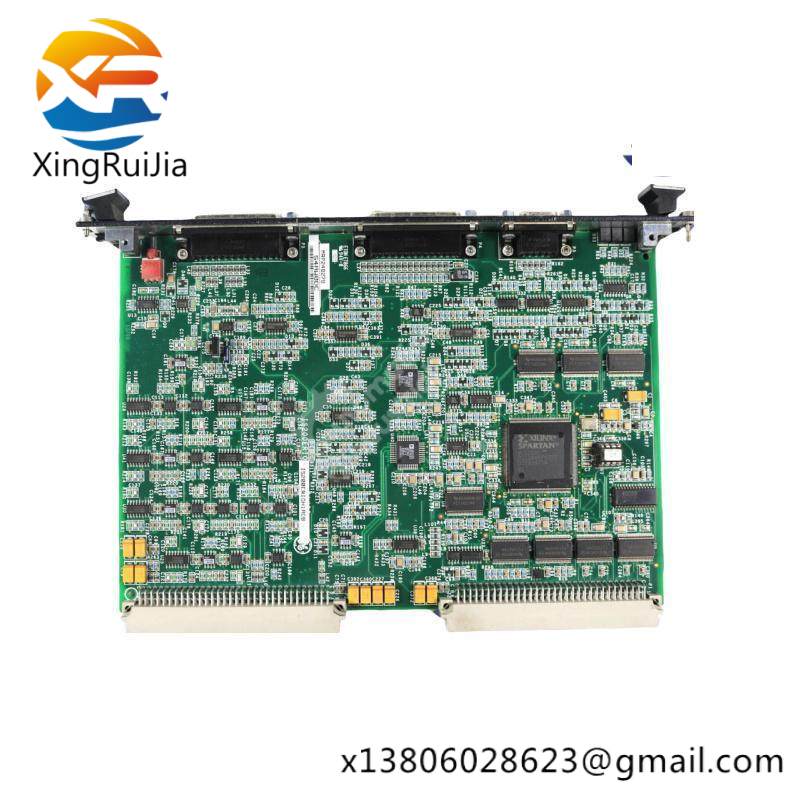

    The GE IS200EGPAG1BCA is a high-performance gate pulse amplifier board designed by General Electric specifically for excitation control systems.

     This board plays a crucial role in controlling the power bridge within these systems, amplifying gate pulse signals to drive SCRs (Silicon Controlled Rectifiers).

     Its design incorporates five on-board jumpers for configurable hardware settings, enhancing its adaptability to various applications.

     The board also features on-board green and red LED indicators, providing clear visual feedback on system status.

     With precise control over SCRs and the ability to monitor conduction feedback, airflow, and temperature, this amplifier ensures reliable and efficient operation in demanding industrial environments.

     Whether used in power generation or other high-stakes industries, the GE IS200EGPAG1BCA is a robust and dependable solution for excitation control systems.
