Ge IS200ECTBG1ACB
1. Product Overview

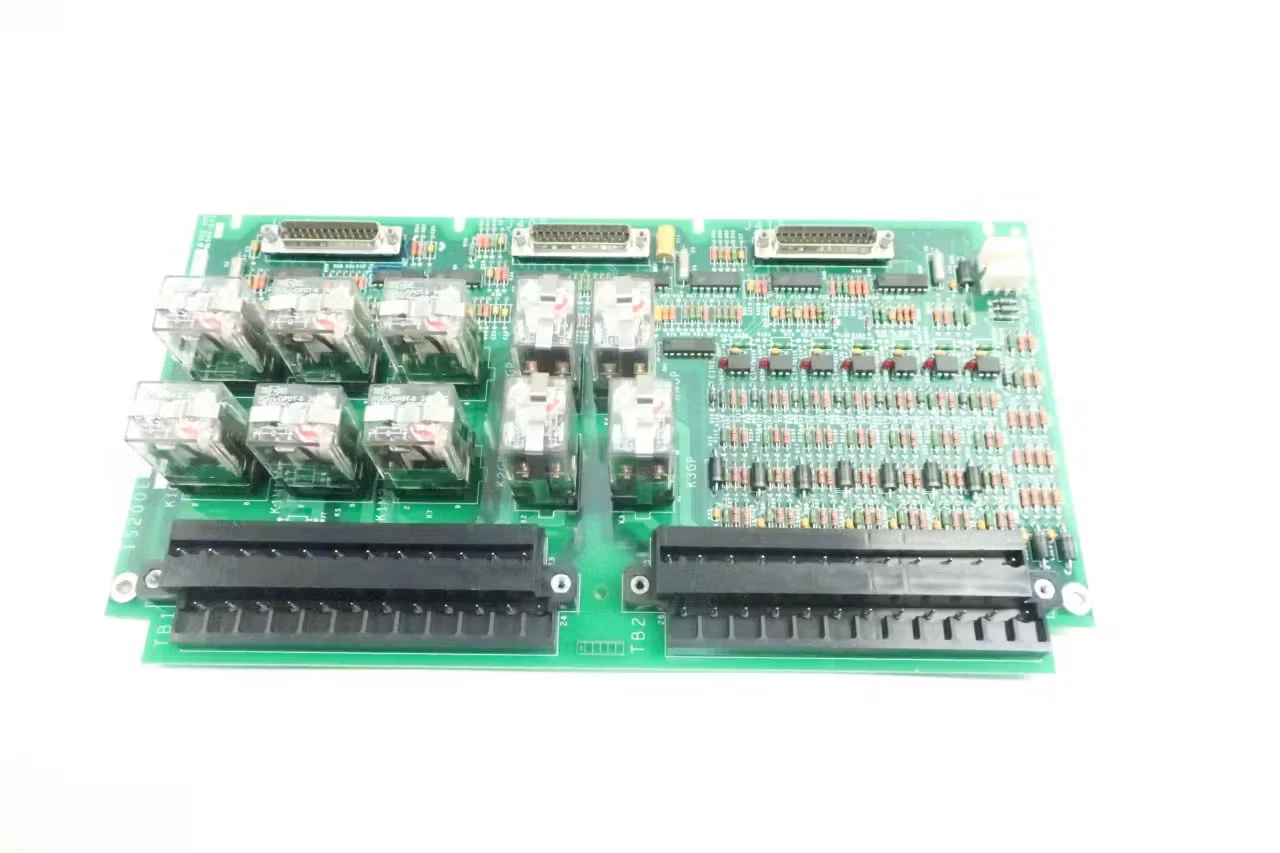

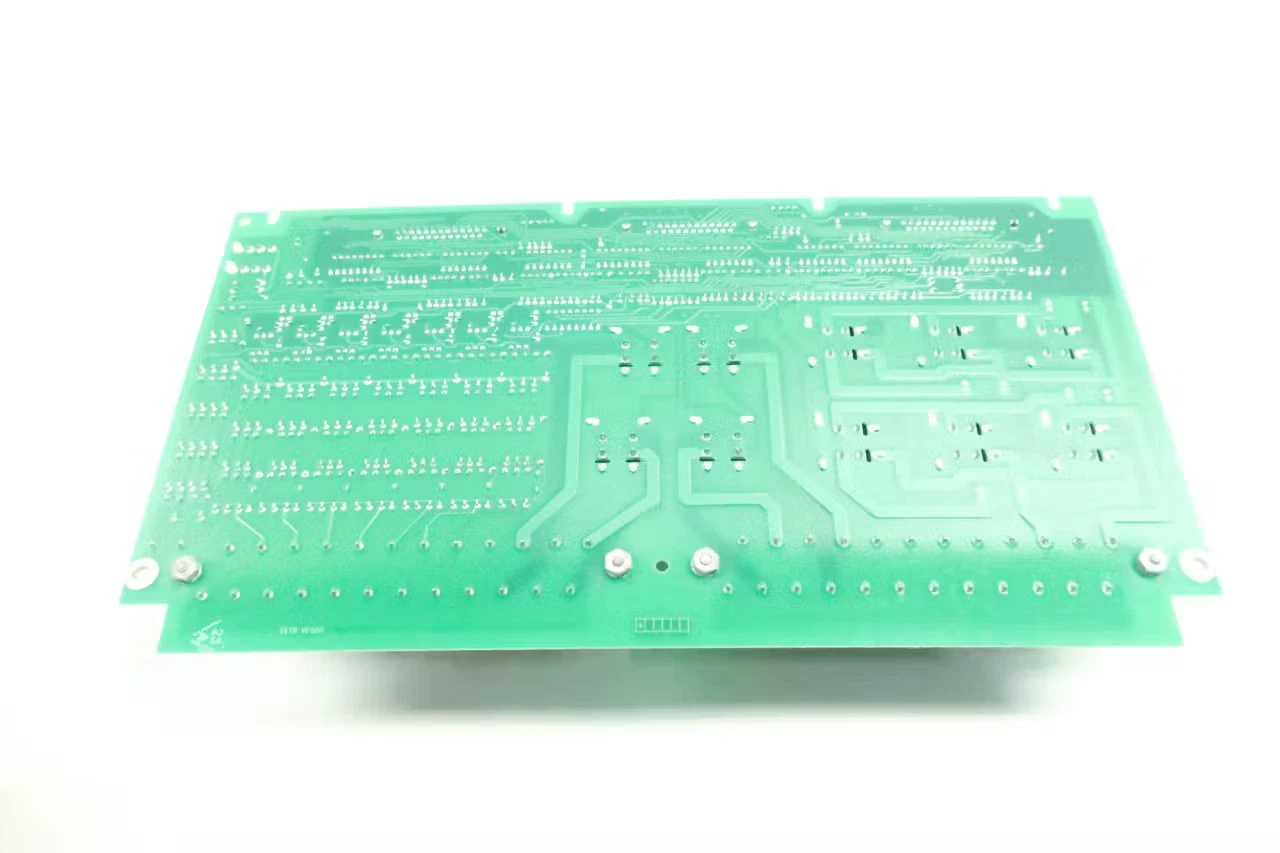

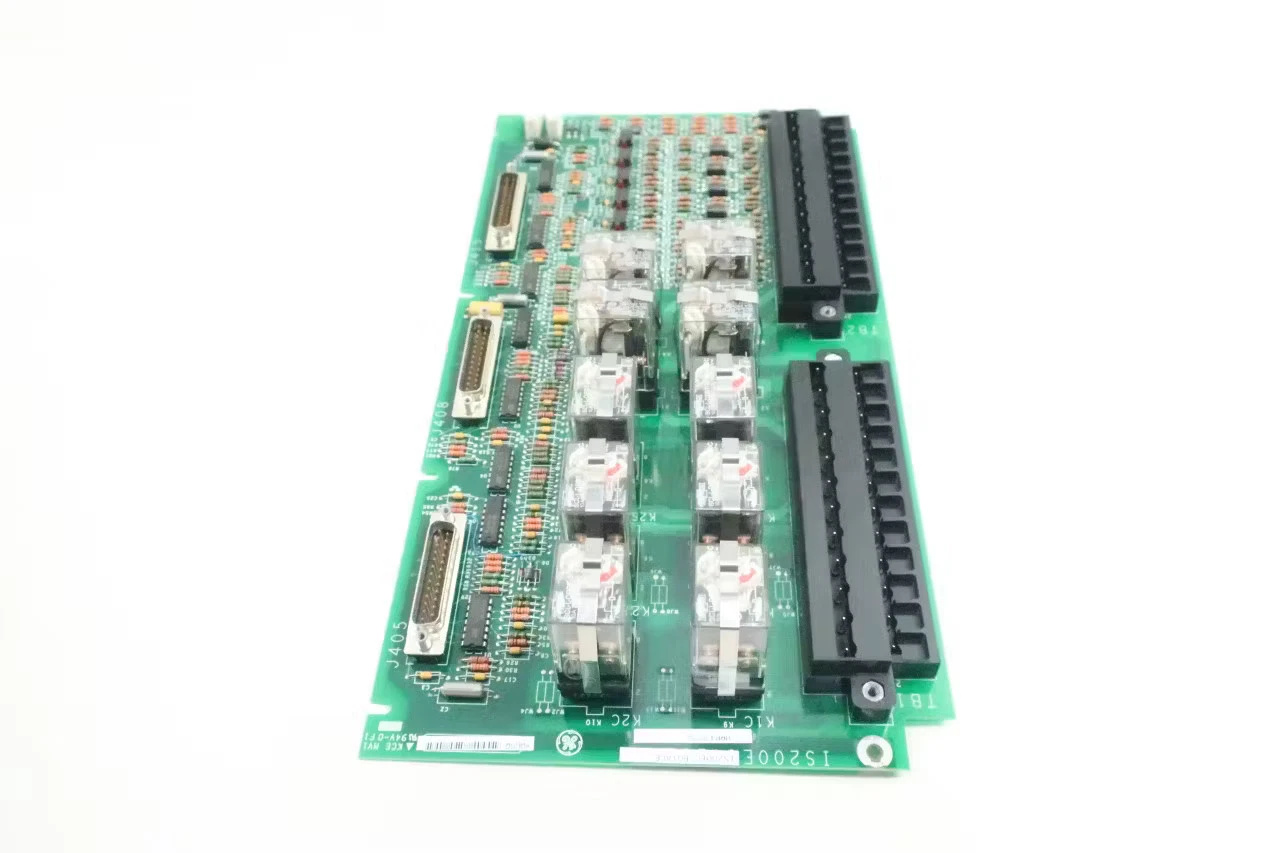

GE IS200ECTBG1ACB is a key component in the General Electric (GE) Mark VI Speedtronic system. It is a circuit board specifically designed for the Exciter Contact Terminal Board, whose main function is to provide electrical isolation channels and support the connection and control of exciter contact inputs and outputs.
______________________________________________________________________________________________
2. Parameters and Specifications
- Voltage and Power Supply: The operating voltage is 24V DC, and it provides 70V isolated DC voltage for contact input.
- Connectors: The board is equipped with multiple pin connectors, usually marked as J405, J408, J415, etc.
- Dimensions: Modules of this series usually adopt standardized dimensions, facilitating slot-mounted installation in the cabinet.
______________________________________________________________________________________________
3. Product Features
- Redundant Mode Operation: The terminal board can only operate in redundant mode (marked as 1A), ensuring high reliability of the system.
- Powerful Function: It integrates 4 universal C-type contact outputs and 6 auxiliary contact inputs powered by the board.
- Modular Design: Adopting a modular design, it is convenient for on-site maintenance, replacement and upgrading.
______________________________________________________________________________________________
4. Structure and Composition
- Digital I/O: Used to connect various sensors and actuators of the exciter.
- Connectors: Including power connectors and signal connectors.
- Circuit Components: Integrated circuits, resistors, capacitors, diodes, etc., to ensure accurate signal transmission and isolation.
______________________________________________________________________________________________
5. Application Fields
- Generator Excitation System: As the core component of the generator excitation control system, it ensures the voltage regulation and stable operation of the generator.
- Power Automation: Used for monitoring and protection of power systems, especially in large power plants.
- Industrial Control: Integrated with the GE Mark VI system, it is used for complex industrial automation control tasks.
______________________________________________________________________________________________
6. Installation and Maintenance
Installation Method
It is usually installed by DIN rail or slot mounting. It is necessary to ensure correct connection with other components of the Mark VI system (such as circuit boards).
Maintenance Recommendations
- Regular Connection Inspection: Regularly check the tightness of connectors and cables to prevent signal faults caused by looseness.
- Electrical Parameter Monitoring: Pay attention to monitoring the stability of the 70V isolated voltage and 24V power supply voltage.
- Replacement Notes: Power must be cut off during replacement, and ensure that the model and version of the new and old boards are completely matched.
————————————————————————————————-
