GE IP-QUADRAFUTURE
Overview

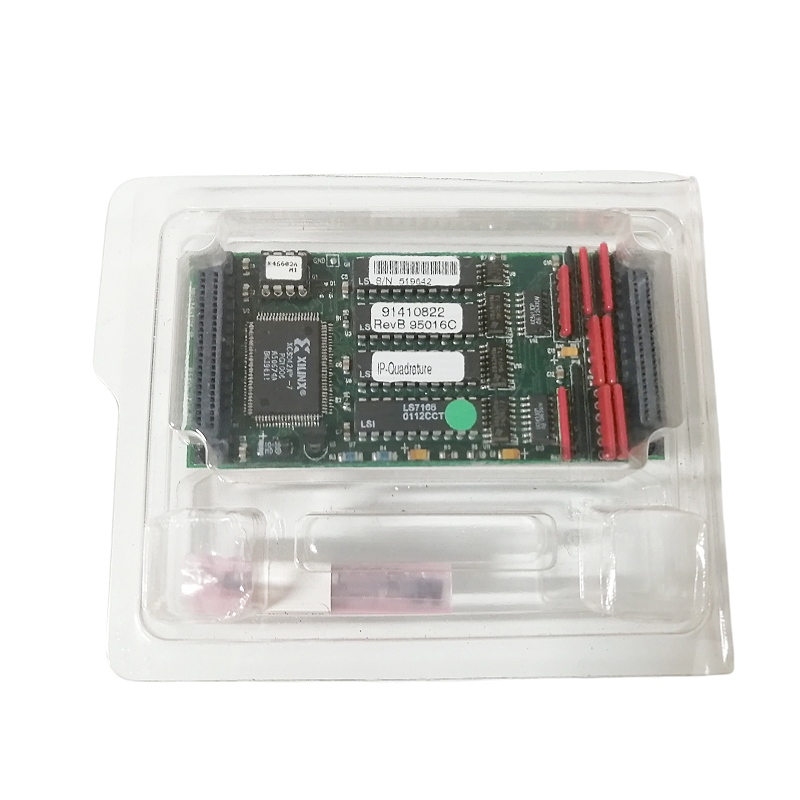

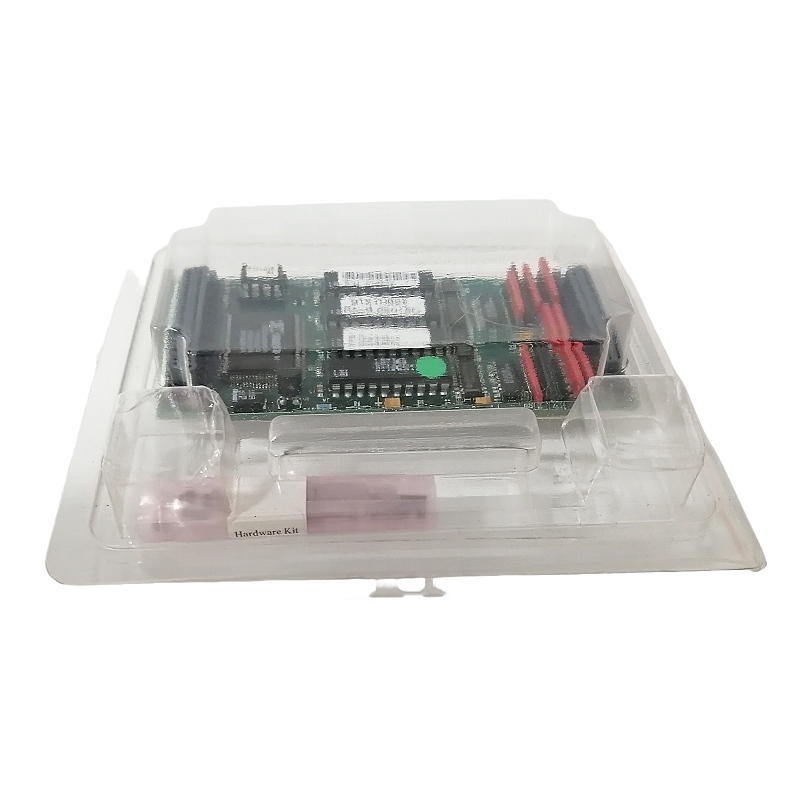

The GE IP-QUADRATURE is a 4-channel quadrature decoder, primarily designed to convert output signals from rotary encoders into digital signals for computer processing and display. It supports differential or single-ended inputs, featuring high resolution and high-speed counting capabilities, making it suitable for fields such as industrial automation and motion control.
Specifications
- Number of Channels: 4 independent channels, each programmable independently.
- Resolution: 24-bit resolution per channel.
- Counting Frequency:Input Type: Differential (RS-422) or single-ended (TTL/CMOS).
- General counting mode: DC to 10 MHz.
- Quadrature counting mode: DC to 1.2 MHz (higher in X1 and X2 modes).
- Prescaler: Programmable to X1, X2, or X4.
- Interrupt Capability: Supports borrow interrupts and match interrupts.
Product Features
- Flexible Input Configuration: Supports RS-422 differential input and TTL single-ended input, with programmable polarity.
- Dynamic Reading Capability: A 24-bit output latch enables accurate dynamic reading of quadrature position values.
- Interrupt Function: Each channel is equipped with a 24-bit capture/match register, which can be used for hardware capture or interrupt generation.
- Low-Power Design: Full CMOS design ensures low power consumption.
- Scalability: Each VME slot can support up to 16 counter channels.
Structure and Composition
- Input Circuit: Includes an RS-422 differential receiver and a detachable termination resistor network.
- Counter Module: Each channel contains a 24-bit up/down counter, a preset/compare register, and an output latch.
- Interrupt Logic: Supports multiple interrupt conditions, such as borrow interrupts and match interrupts.
- Interface Logic: Interfaces with the host system to enable data transmission and control.
Application Fields
- Industrial Automation: Used for measuring and monitoring physical quantities such as rotation angle and displacement.
- Motion Control: Enables precise position and speed control in equipment like robots and CNC machine tools.
- Process Control: Controls equipment such as valves and pumps in fields like chemical engineering and pharmaceuticals.
- Building Automation: Controls systems such as lighting and HVAC (Heating, Ventilation, and Air Conditioning).
- Transportation Systems: Used for controlling equipment like traffic lights and elevators.
Installation and Maintenance
Installation
- Ensure the input signal type (RS-422 or TTL) matches the configuration.
- Adjust the termination resistor network as needed.
- Configure the channel’s counting mode, polarity, and interrupt settings via software.
Maintenance
- Regularly check input connections to ensure stable signal transmission.
- Clean the equipment to prevent dust from affecting performance.
- Update firmware and software to ensure system compatibility and security.
————————————————————————————————-
