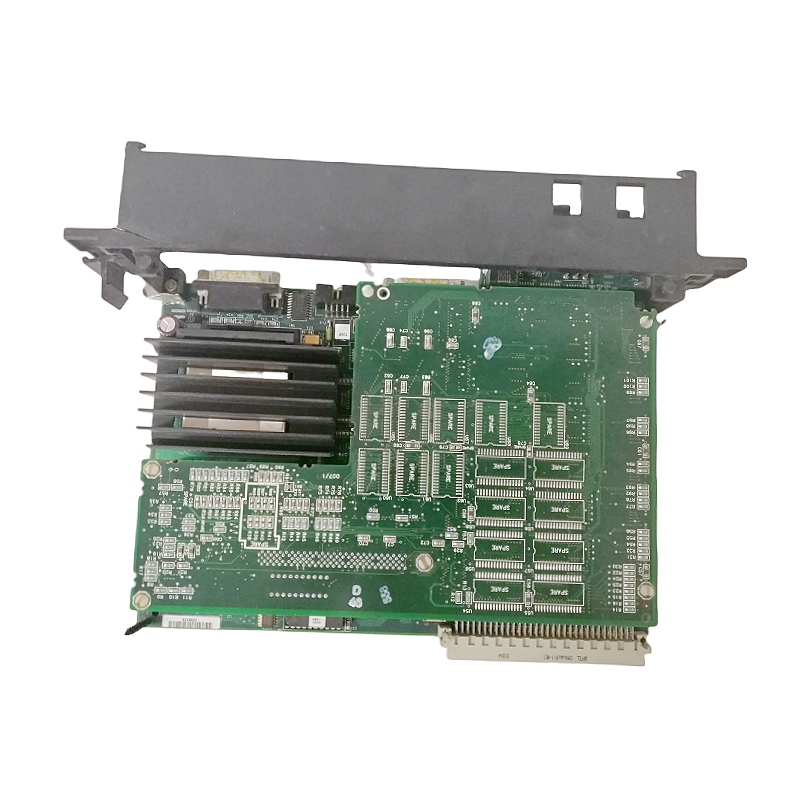

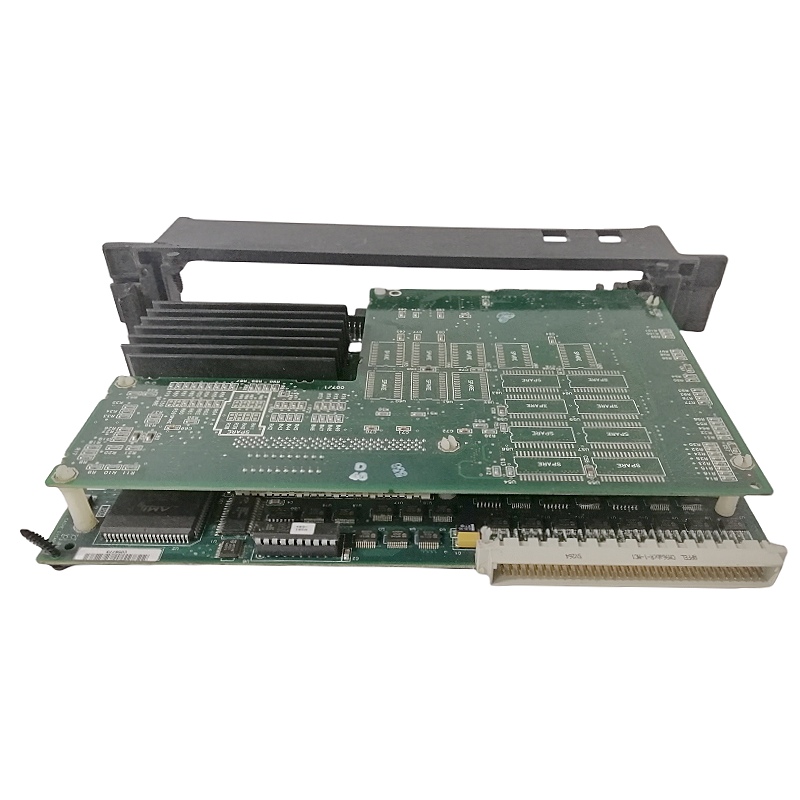

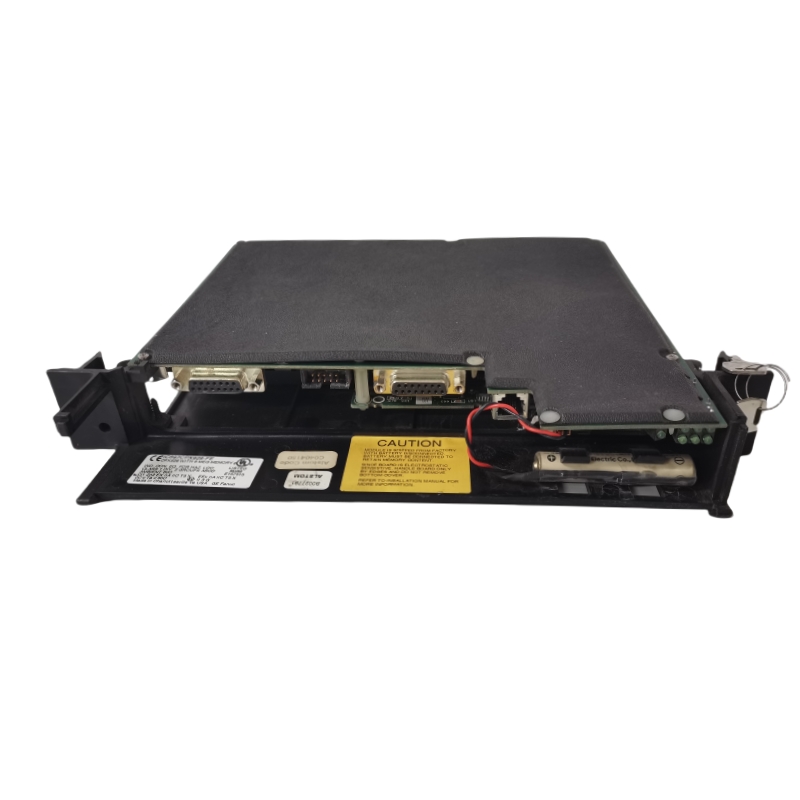

GE IC697CPX928-FE
Overview
The GE IC697CPX928-FE is a high-performance Programmable Logic Controller (PLC) CPU module belonging to General Electric (GE)’s 90-70 series, specifically designed for industrial automation control systems. It integrates powerful processing capabilities, rich communication functions, and flexible I/O configuration, making it suitable for complex control tasks and data processing.
Specifications
- Processor: 32-bit microprocessor with a clock speed of 96 MHz.
- Memory: 6 MB battery-backed memory and 256 KB non-volatile user flash memory.
- I/O Points: Supports up to 12K digital I/O and 8K analog I/O.
- Communication Interfaces: 1 RS-232 serial port, 2 RS-485 serial ports, and 1 Ethernet port.
- Power Requirements: 5 V DC, featuring low power consumption and high stability.
- Operating Environment: Temperature range of 0°C to 55°C, humidity range of 5% to 95% (non-condensing).
- Dimensions: Compact design for easy installation and maintenance.
Product Features
- High-Performance Processing: Rapidly executes logic control and algorithms to meet the demands of complex industrial control.
- Flexible I/O Configuration: Supports a variety of I/O modules and enables flexible expansion based on requirements.
- Powerful Communication Capabilities: Compatible with protocols such as Ethernet, RS-232/485, Modbus, and EtherNet/IP.
- High Reliability: Industrial-grade design ensures strong anti-interference ability and adaptability to harsh environments.
- Multiple Programming Languages: Supports ladder diagram, structured text, function block diagram, etc., facilitating programming.
- Real-Time Monitoring and Diagnostics: Provides real-time data display and fault diagnosis functions for easy maintenance.
Structure and Composition
- CPU Module: The core processing unit that integrates a microprocessor and memory.
- Communication Ports: RS-232, RS-485, and Ethernet interfaces that support multiple communication protocols.
- Power Module: 5 V DC power input to ensure stable power supply.
- Indicator Lights: 7 status LEDs for real-time display of operating status.
- Expansion Slots: Support the installation of optional modules, such as Ethernet interface modules and coprocessors.
Application Fields
- Manufacturing Industry: Production line control, equipment automation, and process monitoring.
- Energy Industry: Power control, power plant operation, and transmission system monitoring.
- Transportation Systems: Rail transit control and traffic signal management.
- Water Treatment and Environmental Protection: Water quality monitoring, sewage treatment, and environmental control systems.
- Building Automation: Control of lighting, air conditioning, and security systems.
Installation and Maintenance
Installation Steps
- Environment Preparation: Ensure the installation environment has good ventilation and meets the required temperature and humidity conditions.
- Hardware Installation: Mount the module in the designated slot of the GE Fanuc Series 90-70 PLC rack.
- Cable Connection: Connect the power supply, communication cables, and I/O modules.
- Initial Configuration: Perform system configuration and parameter setting via programming software.
Maintenance Points
- Regular Inspection: Check the module’s operating status and indicator lights to ensure no abnormalities.
- Firmware Update: Regularly update the firmware to improve performance and security.
- Cleaning and Maintenance: Keep the module and surrounding environment clean to prevent dust accumulation.
- Troubleshooting: Use diagnostic functions to identify faults and replace damaged components in a timely manner.
Precautions
- Avoid using the module in high-temperature, humid, or strong electromagnetic interference environments.
- Ensure power is cut off during maintenance to prevent electric shock.
- Follow the operation manual to avoid equipment damage caused by improper operation.
————————————————————————————————-
