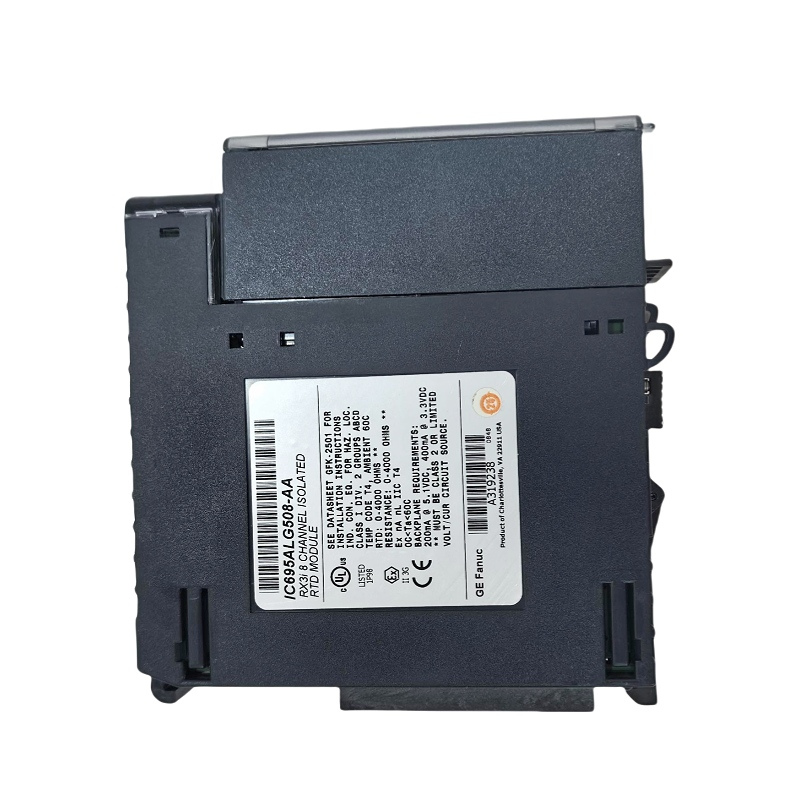

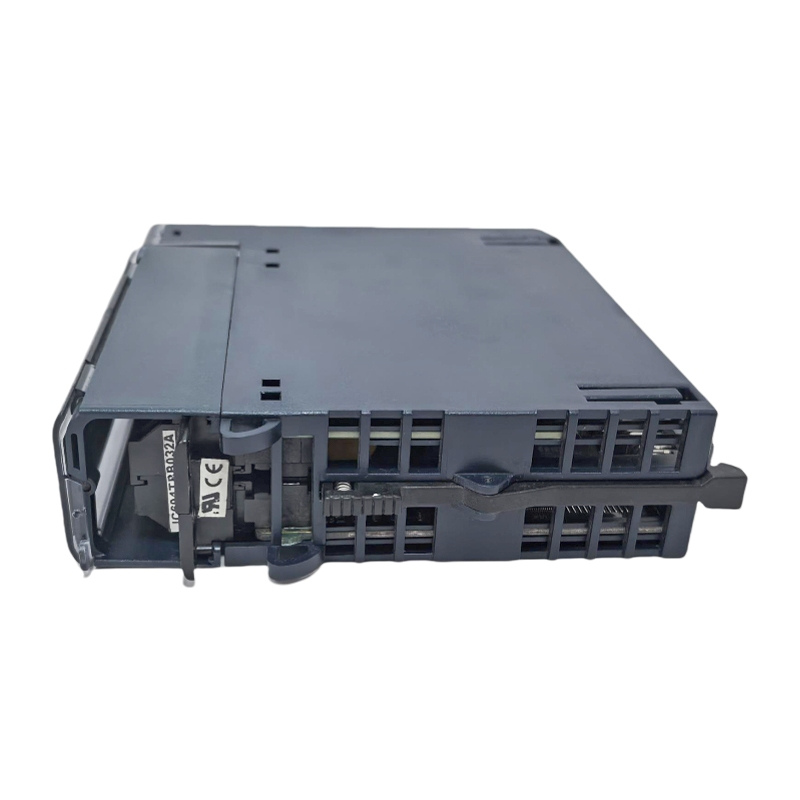

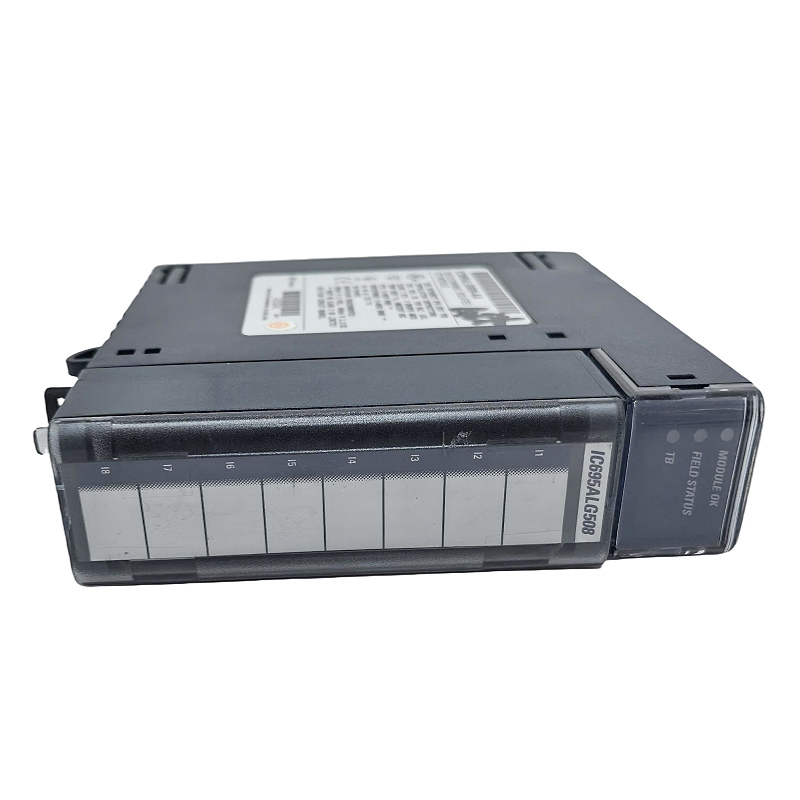

GE IC695ALG508-AA

I. Overview

II. Parameters

• Number of channels: 8 independent differential RTD input channels.
• Supported RTD types: Platinum 385, Platinum 391.6, Nickel 618, Nickel 672, Nickel-Iron 518, Copper 426.
• Resistance range: 0-260, 0-525, 0-1050, 0-2100, 0-3150, 0-4200 ohms.
• Measurement units: Celsius, Fahrenheit, or ohms.
• Input data format: 32-bit integer in a 32-bit field or 16-bit IEEE floating-point data.
• Optional notch filter settings: 3.28 Hz to 694 Hz per channel.
• Terminal options: Box-type, extended box-type, spring-type, or extended spring-type.

III. Product Features

• High precision: Advanced measurement technology is adopted to ensure the accuracy of measurement data.
• Isolation design: Isolation between channels and between channels and the module improves system reliability.
• Flexible configuration: Can be flexibly configured through software to adapt to different application requirements.
• Easy installation: Modular design for convenient installation.
• High reliability: Industrial-grade design, suitable for harsh industrial environments.
• Hot-swap function: Supports hot-swap, allowing insertion or removal of the module while powered on.
• Diagnostic function: Equipped with self-diagnostic capability, supporting sensor open-circuit detection and system fault detection.

IV. Structure and Composition

• Modular design: Facilitates installation and maintenance.
• Electrical isolation: Provides isolation between the system and input to enhance anti-interference ability.
• Terminal blocks: Supports multiple terminal types, including box-type, extended box-type, spring-type, and extended spring-type.
• Internal components: Include voltage regulators, transformers, capacitors, resistors, relays, diodes, and integrated circuits, etc.

V. Application Fields

• Industrial process control: Widely used in process automation systems in petrochemical, electric power, metallurgy, water treatment, and other fields.
• Industrial automation: Provides signal acquisition support for production lines, mechanical equipment, sensors, etc.
• Data acquisition systems: Used for real-time monitoring of process variables such as temperature, pressure, and flow, providing data support for control decisions.
• Energy management: Used for temperature monitoring in energy management systems to ensure equipment operates within the optimal temperature range.
• Manufacturing industry: Monitors and controls temperature in various production processes to ensure product quality and process stability.

VI. Installation and Maintenance

• Installation method: Installed in the RX3i rack, supporting DIN rail or rack mounting.
• Terminal blocks: Connect to external RTD sensors using standard terminal blocks.
• Maintenance: The modular design facilitates maintenance, and the hot-swap function allows insertion or removal of the module while powered on.
• Fault detection: Equipped with self-diagnostic capability, supporting sensor open-circuit detection and system fault detection.

————————————————————————————————-
