Product Type:Termination Board

Series:Mark V

ID for 10-pin Connectors:JJR, JJT, JJS

Number of Terminal Blocks:2

Wires per Terminal Block:72 signal wires

Number of 10-pin Connectors:3

Signal Wires:6

Board Size:Dimensions: 11 x 6 x 6.7 cm

Weight:0.14 kg

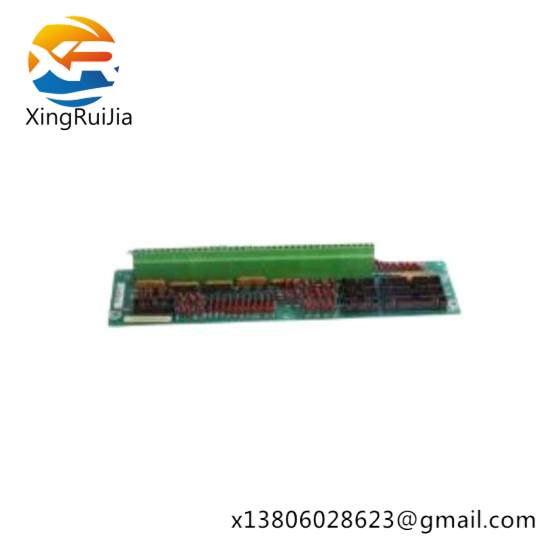

    The GE-FANUC DS200PTBAG1BBA Termination Board is engineered to withstand harsh industrial environments, ensuring uninterrupted operation in a wide range of temperatures from -40°C to +70°C.

    Equipped with a robust DC power supply voltage of 24V, this board is capable of handling up to 16 signal channels efficiently, making it suitable for complex network configurations.

    With support for both RS-485 and RS-232 connections, the board offers flexibility in interfacing with various devices and systems, enhancing compatibility and connectivity options.

    Featuring a ruggedized metal enclosure, the DS200PTBAG1BBA is designed with ESD (Electrostatic Discharge) protection to safeguard against potential damage caused by static electricity, ensuring reliability in manufacturing floors and industrial settings.

    Adaptable to standard 1U rack mounting, the board optimizes space utilization within control cabinets, facilitating easy installation and maintenance in industrial automation systems.
