Brand:GE

Model:DS3820MSAB1A1A

Function:Control and Monitoring

Technology:Advanced Digital Signal Processing

Connectivity:RS-485, RS-232

Power Supply:DC 24V

Operating Temperature:-40°C to +70°C

Storage Temperature:-55°C to +85°C

Material:Ruggedized Aluminum Alloy

Size:140mm x 110mm x 30mm

Weight:0.3kg

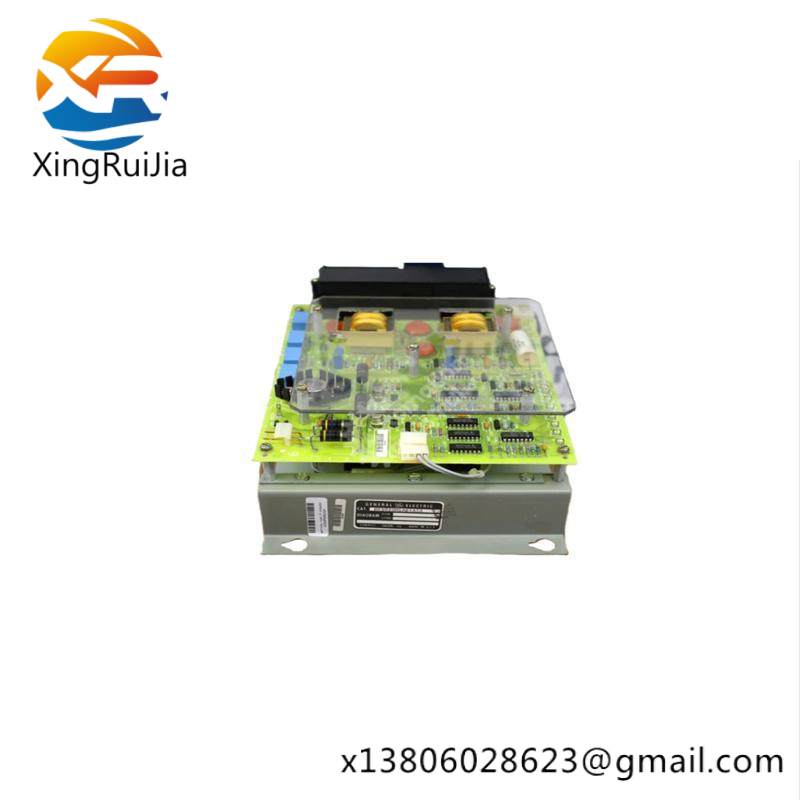

    The GE DS3820MSAB1A1A Circuit Board is designed with ten jumper switches, enabling users to configure system parameters quickly and efficiently. It supports six test points for monitoring critical operational conditions, ensuring precise data collection.

    Equipped with two transistors, this circuit board offers enhanced signal amplification capabilities, crucial for maintaining signal integrity over long distances in industrial environments.

    Featuring multiple integrated circuits, including oscillating chips, hex buffers, and J-K negative edge triggered flip-flops, it ensures robust data processing and synchronization, ideal for complex control systems.

    With two connectors, one six-pin header and one PCB mating connector (218A4837-P12), the DS3820MSAB1A1A facilitates seamless integration with other hardware components, streamlining installation and maintenance processes.

    Backed by GE’s comprehensive technical support, including manuals and datasheets, users can easily access detailed information about the DS3820MSAB1A1A, ensuring optimal system performance and troubleshooting assistance when needed.
