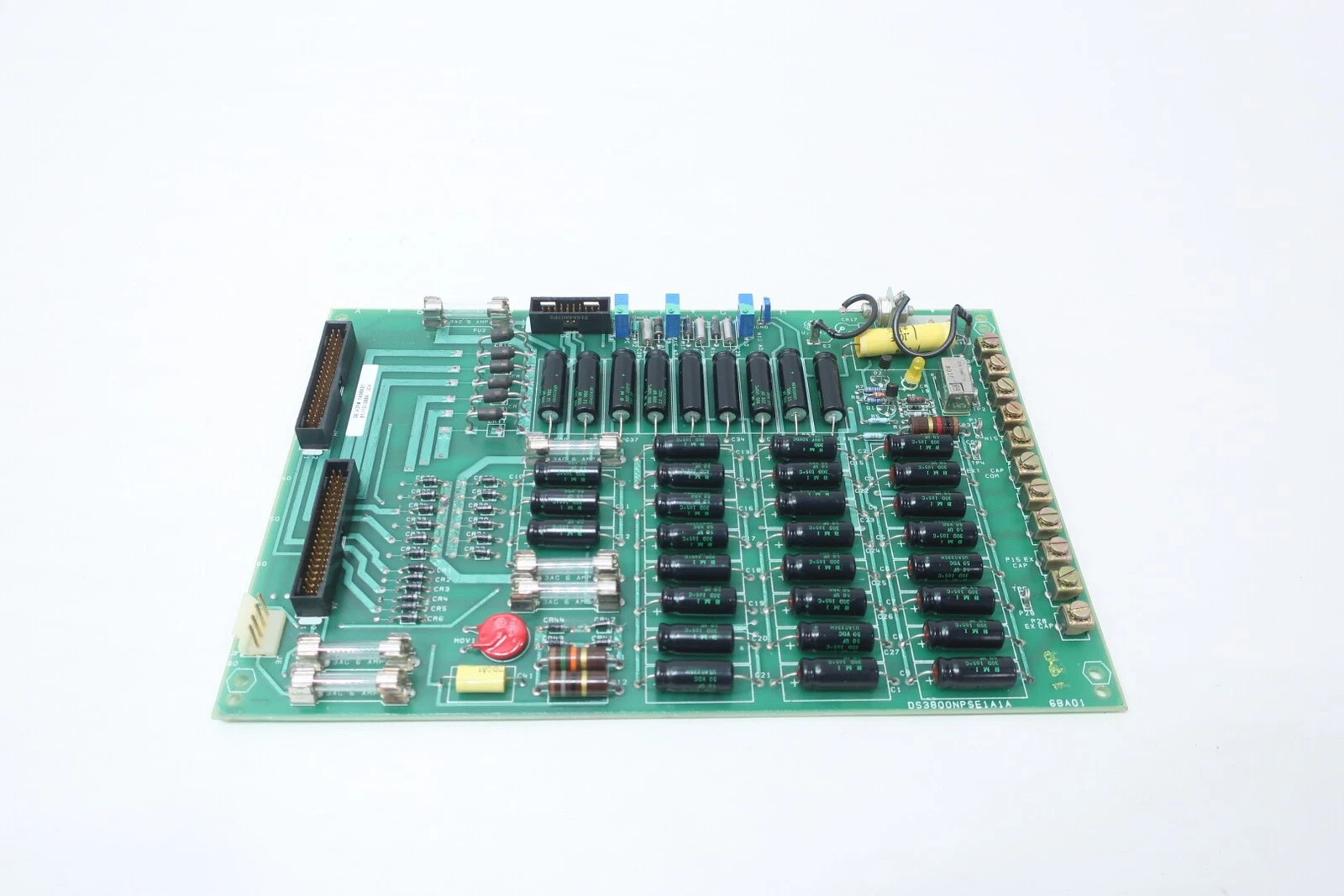

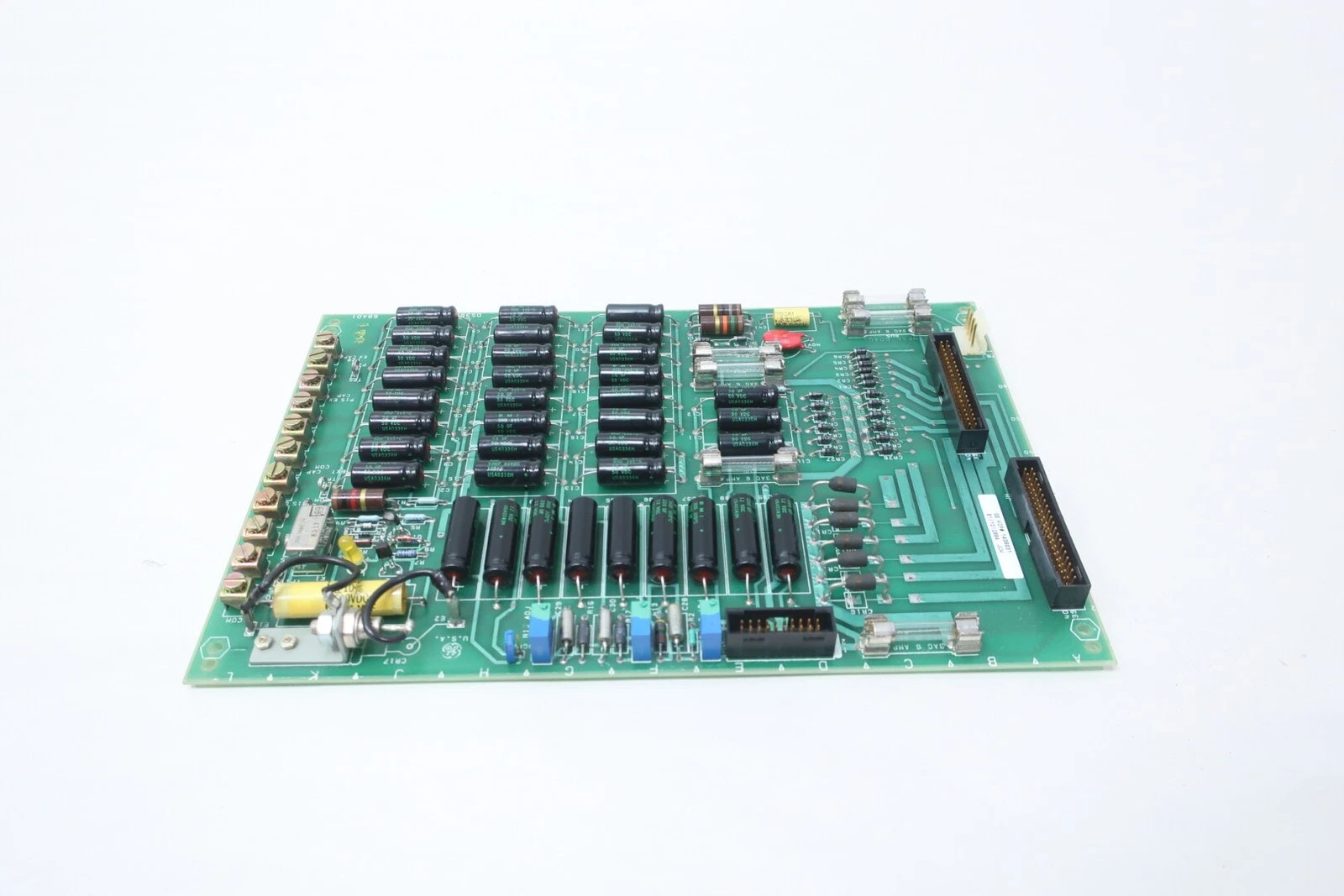

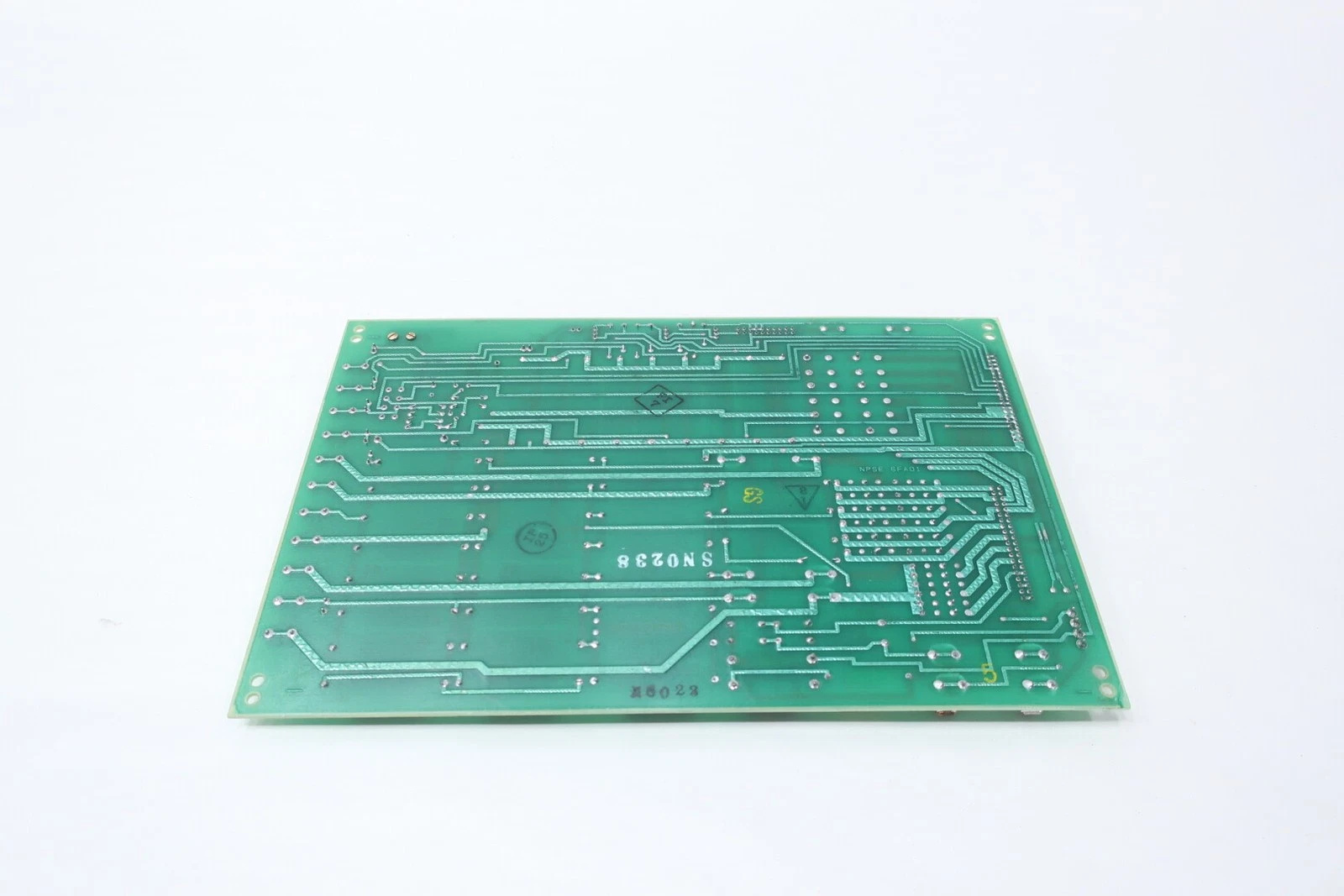

Product Overview

Core Specifications

• Input Voltage: Primarily supports 24V DC input, tailored for standard industrial power distribution setups.
• Output Power: Designed with a rated output power of approximately 10W, matching the power demand of the DS3800 series control modules.
• Current Capacity: Delivers an output current of around 2A per channel, ensuring sufficient power supply for connected system components.
• Communication Compatibility: Compatible with a wide range of mainstream industrial communication protocols, including Profinet, EtherCAT, and more. It seamlessly collaborates with other DS3800 series modules to build a cohesive and efficient control system.

Key Product Features

• High Industrial Reliability: Built to withstand harsh industrial operating conditions, featuring superior anti-interference performance and robust fault protection mechanisms. It maintains stable performance in environments with dust, vibration, and electromagnetic interference, reducing system downtime.
• Compact & Space-Saving Design: Boasts a small, streamlined form factor ideal for installation in limited cabinet space. It supports standard DIN rail mounting, simplifying on-site installation and system integration.
• Modular Architecture: As an integral part of the DS3800 series, this power supply module integrates seamlessly with I/O modules, processor modules, and other supporting components, enabling the construction of a complete, scalable industrial control system.
• Comprehensive Protection Functions: Equipped with multi-level safety protections including over-voltage protection, under-voltage protection, over-current protection, and short-circuit protection. These safeguards effectively prevent module damage and system failures, securing stable and safe operation of the entire control system.

Application Areas

• Manufacturing Automation: Applied to automated control systems for production lines, assembly lines, and automated manufacturing equipment across diverse manufacturing industries.
• Process Control: Delivers stable power support for process control systems in heavy industries such as chemical engineering, petroleum, metallurgy, and refining, ensuring continuous process operation.
• Energy Management: Utilized in monitoring and control systems at energy stations, power plants, and renewable energy facilities to maintain reliable power for critical monitoring and regulation equipment.
• Building Automation: Integrated into building management systems (BMS) for power management and supply, supporting intelligent control of building facilities and infrastructure.
