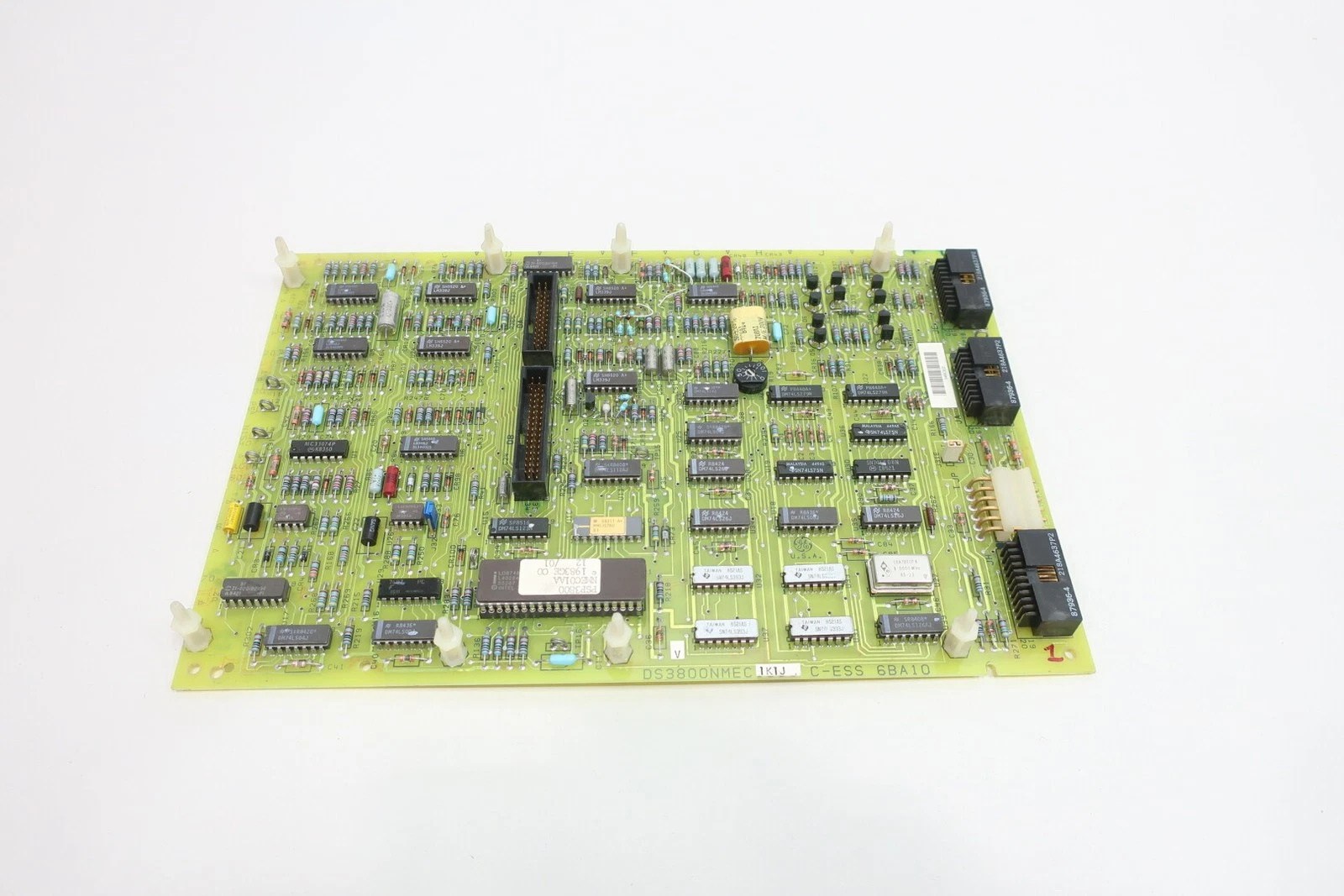

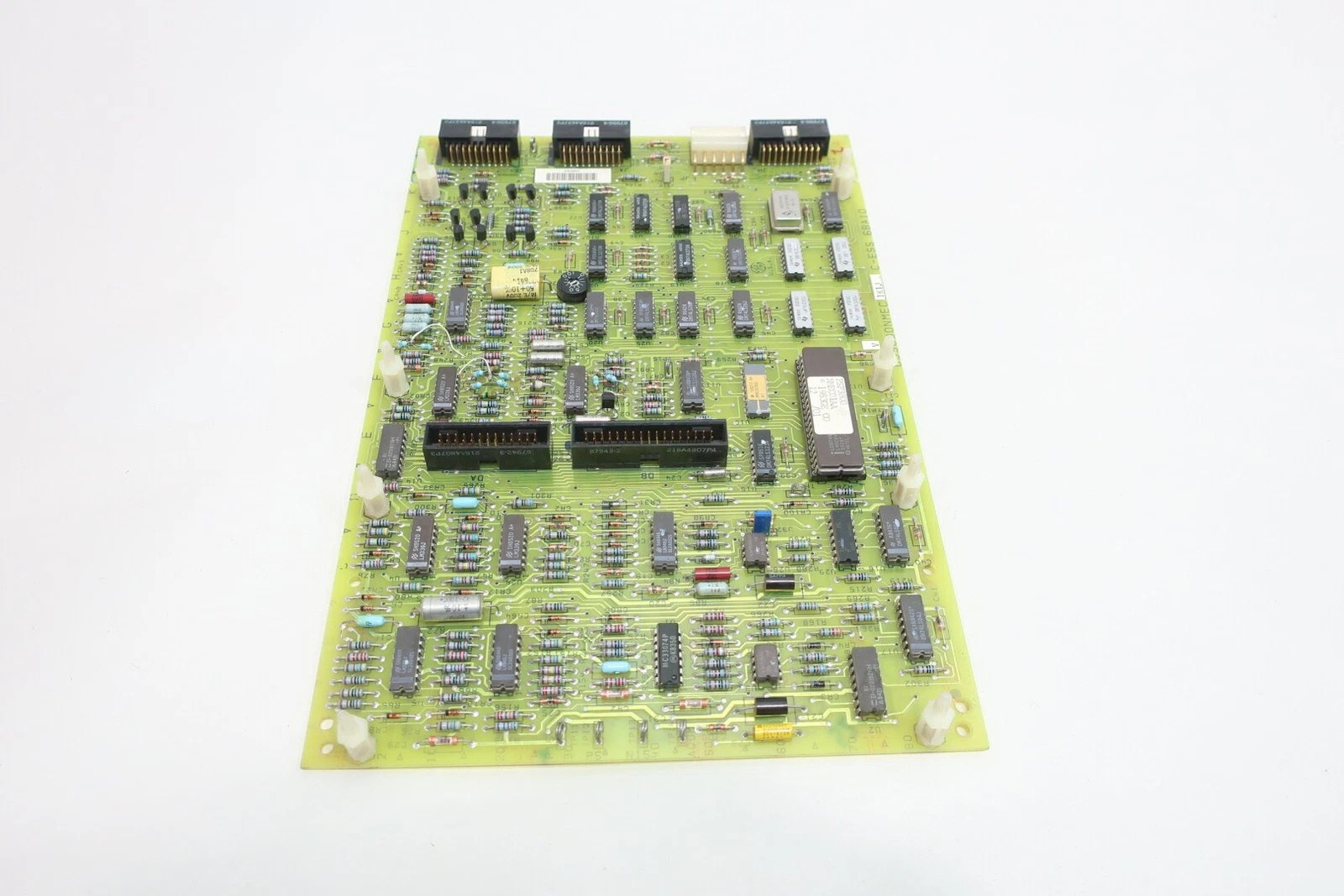

Ge DS3800NMEC1K1J C-ESS
The GE DS3800NMEC1K1J C-ESS is a PCB control board assembly specially designed by General Electric (GE) for the Mark IV (Speedtronic) system, mainly used for the automatic control and management of steam turbines and gas turbines. As one of the relatively mature and widely applied core control units in the Mark IV series, it delivers stable and efficient performance in heavy-duty industrial turbine control scenarios.
1. Core Parameters & Technical Specifications
|
Parameter
|
Description
|
|---|---|
|
Model
|
DS3800NMEC1K1J C-ESS
|
|
Application Target
|
Steam turbine and gas turbine control systems
|
|
Structural Features
|
Equipped with 35 integrated circuits (including EEPROM/EPROM), 10 transistors, 2 jumper switches, and 1 rotary potentiometer
|
|
Interface Type
|
6-pin right-angle connector, 5 PCB docking connectors (including 2 vertical pin connectors)
|
|
Built-in Components
|
4-channel 741 operational amplifiers, 4-channel voltage comparators, dual J-K flip-flops, NAND gates, D latches, and other core electronic components
|
|
Component Packaging
|
Ceramic-coated metal film resistors, polyester film/ceramic/metallized polycarbonate capacitors
|
|
Manufacturer
|
General Electric (GE)
|
|
Compatible System
|
Mark IV (Speedtronic)
|
2. Product Features
High Modularity & Integration Level
This control board features a compact design with a large number of integrated analog and digital circuits, enabling efficient automatic control of critical turbine processes such as startup, shutdown, and cooling. Its highly integrated structure simplifies system wiring and optimizes the overall layout of turbine control equipment.
Superior Reliability
Adopting high-quality industrial-grade components (including ceramic resistors and metal film capacitors), combined with factory-pre-drilled holes and alignment mark designs, the product ensures long-term stable operation in harsh industrial environments characterized by high pressure, high temperature, and continuous vibration. It meets the strict operational requirements of heavy-duty turbine equipment.
Convenient Maintenance
The board is equipped with 17 dedicated test points, supporting fast on-site fault diagnosis and signal detection to shorten maintenance time. It also comes with nylon support pins for fixing other PCBs, effectively reducing component loosening risks and lowering the difficulty of daily maintenance and overhaul work.
Strong Anti-Interference Capability
With excellent protective performance, this PCB control board can effectively resist adverse environmental factors such as humidity, dust, and electromagnetic interference, maintaining stable signal transmission and control accuracy even in complex industrial sites, and avoiding system malfunctions caused by external interference.
3. Structure & Composition
- Main Circuit Board: Large-size high-performance PCB integrated with a full range of electronic components, serving as the core carrier of the control circuit.
- Connectors: Primarily includes a 6-pin right-angle connector for power and signal transmission, and 5 PCB docking connectors for data communication with other control boards in the system.
- Component Array: Integrates core functional components such as operational amplifiers, voltage comparators, logic gates, D latches, jumper switches, and rotary potentiometers to realize diversified control functions.
- Support Structure: Equipped with nylon support pins and factory-drilled mounting holes, ensuring stable installation and reliable fixation of the PCB and adjacent components.
4. Installation & Maintenance Recommendations
Installation Guidelines
- Positioning & Support: Use the alignment marks on both sides of the board and factory-pre-drilled holes to ensure accurate and firm PCB installation. Apply nylon support pins to fix adjacent PCBs, preventing loosening caused by equipment vibration.
- Connector Inspection: Before installation, carefully check the pins of the 6-pin right-angle connector and PCB docking connectors for damage or deformation, ensuring stable power supply and signal transmission after connection.
Maintenance Guidelines
- Routine Inspection: Regularly check the 17 test points on the board, use multimeters or oscilloscopes to monitor voltage values and signal waveforms at key nodes, and detect potential faults in a timely manner.
- Component Replacement: If component replacement is required, give priority to high-quality ceramic resistors and metal film capacitors that meet original specifications, so as to retain the circuit’s excellent anti-interference performance and operational stability.
- Firmware Update: Since the board is equipped with EEPROM/EPROM for storing program data, firmware updates must be carried out through professional tools when necessary, to keep the control logic up-to-date and adapt to optimized operating requirements of turbine systems.
————————————————————————————————-
