Manufacturer:General Electric

Model:DS3800HPRB1A1A, DS3800HPRB1C1C, DS3800HPRB1D1C

Application Type:Mark IV DS3800

Board Function:Pulse Rate Input

Contact Points:8

Installation Method:Two Screw Points, Two Plastic Clips

Labeling:Circuit Boards Number, Manufacturer’s Logo (GE), Made Location

Series:Mark V

Product Type:Boards & Turbine Control

Edge Labeling:A-H, J; Triangular Symbols Between Letters

Made Material:Thin Metal Dividers

Dimensions:Not specified

Weight:Not specified

Operating Temperature:Not specified

Storage Temperature:Not specified

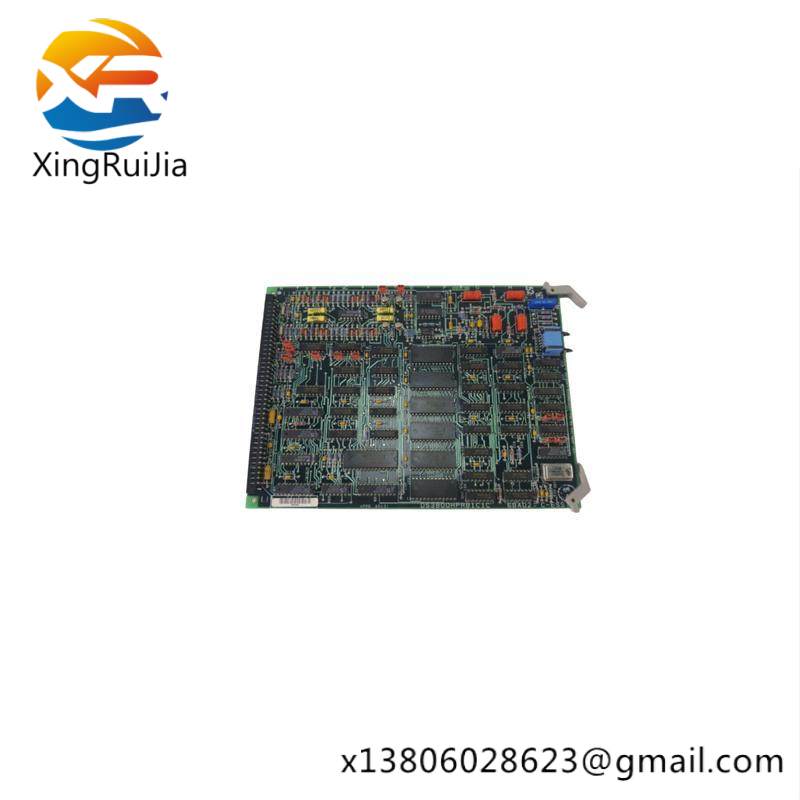

    The GE DS3800HPRB Pulse Rate Input Card is meticulously engineered for high-precision pulse rate measurements, making it indispensable in complex industrial control scenarios.

    Each card is equipped with eight contact points, facilitating seamless integration into existing control systems, ensuring reliability and compatibility.

    With a straightforward installation process that involves just two screw points and two plastic clips, the DS3800HPRB simplifies the setup process, saving valuable time and resources.

    Labeled with the circuit board number, manufacturer’s logo, and made location, the card provides clear identification, enhancing traceability and management within industrial environments.

    Designed with attention to detail, the DS3800HPRB features a thin metal divider that ensures secure and efficient connection to other components, contributing to its robust performance in harsh industrial conditions.
