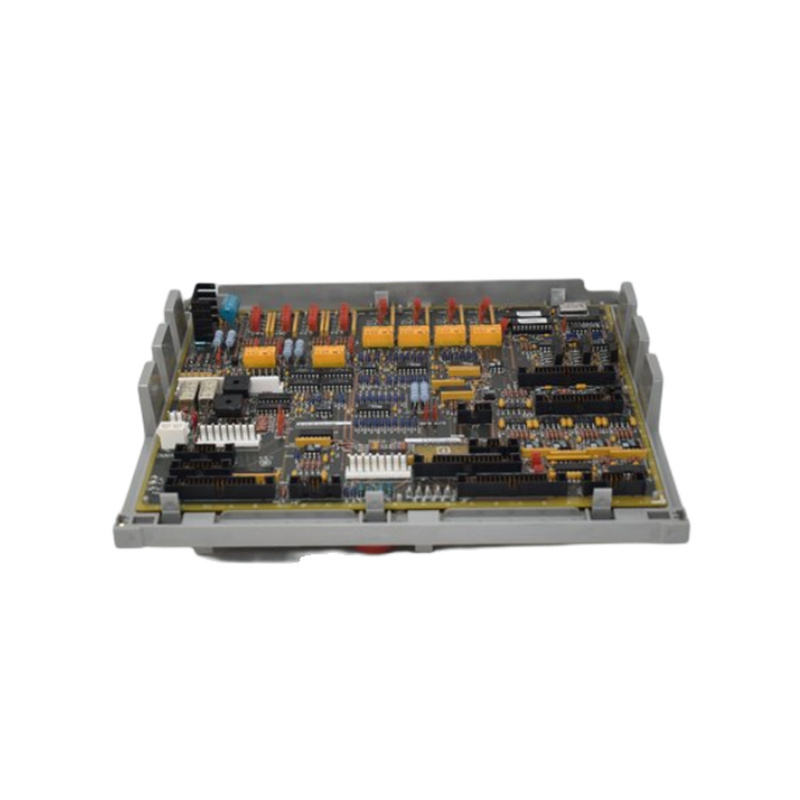

GE DS3800DSHA1A1B
1. Overview
GE DS3800DSHA1A1B is a high-performance industrial control module designed specifically for complex automation systems. It features a compact design and powerful functions, which can meet the harsh requirements of various industrial environments.
______________________________________________________________________________________________________
2. Specifications
|
Specification Type
|
Specification Information
|
|---|---|
|
Input Voltage
|
24V DC
|
|
Output Voltage
|
0-10V DC (according to partial model information)
|
|
Rated Current
|
5A (total rated current; refer to specifications for specific channel rated current)
|
|
Power Consumption
|
Maximum 10W
|
|
Operating Temperature
|
-20℃ – 60℃ (partial information shows -20℃ – 60℃)
|
|
Storage Temperature
|
-40℃ – 85℃
|
|
Dimensions
|
100mm × 50mm × 25mm (specific dimensions may vary slightly by sub-model)
|
|
Communication Interfaces
|
Ethernet, RS485, Modbus, Profibus, etc.
|
______________________________________________________________________________________________________
3. Product Features
- Modular Design: Supports flexible configuration, easy to install, maintain and expand.
- High Reliability: Adopts industrial-grade components, with redundant design and self-diagnostic function, which can quickly locate faults and ensure stable system operation.
- Versatility: Integrates multiple functions such as digital input/output, analog input/output and communication, supporting a variety of industrial communication protocols.
- Environmental Adaptability: Has a protection level (such as IP65) and can operate stably in harsh environments.
______________________________________________________________________________________________________
4. Structure and Composition
- Input/Output Channels: Equipped with multiple digital input/output channels; some models support analog input/output.
- Communication Module: Built-in Ethernet and RS485 interfaces, supporting protocols such as Modbus, Profibus and EtherNet/IP.
- Power Management: Built-in power management unit to ensure stable operation under 24V DC input power.
______________________________________________________________________________________________________
5. Application Fields
- Industrial Automation: Widely used in control and monitoring systems in fields such as power, petrochemical and manufacturing.
- Process Control: Suitable for driving actuators such as valves and dampers that require high-precision control.
- Infrastructure: Suitable for automation needs in fields such as the energy industry and infrastructure construction.
______________________________________________________________________________________________________
6. Installation and Maintenance
- Installation: Modular structure design, usually installed via DIN rail or cabinet. During installation, ensure that the power voltage meets the specifications and correctly connect the communication interface.
- Maintenance: Equipped with self-diagnostic function; indicator lights (such as amber and red LEDs) provide working status and error information, facilitating operators to quickly understand the device status.
- Warranty and Support: Most suppliers provide a 12-month warranty and have dedicated after-sales technical support.
————————————————————————————————-
