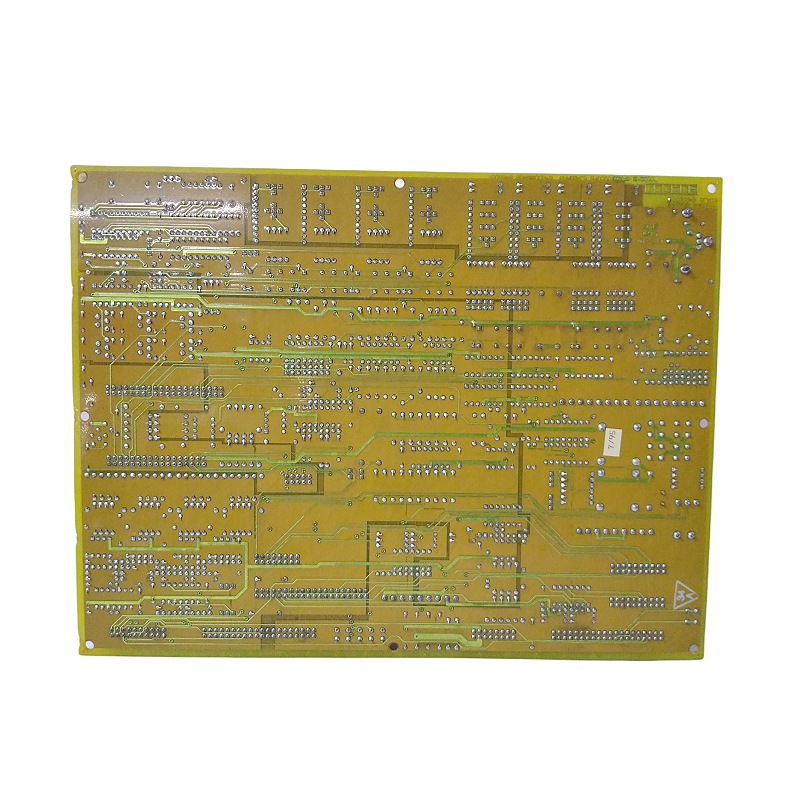

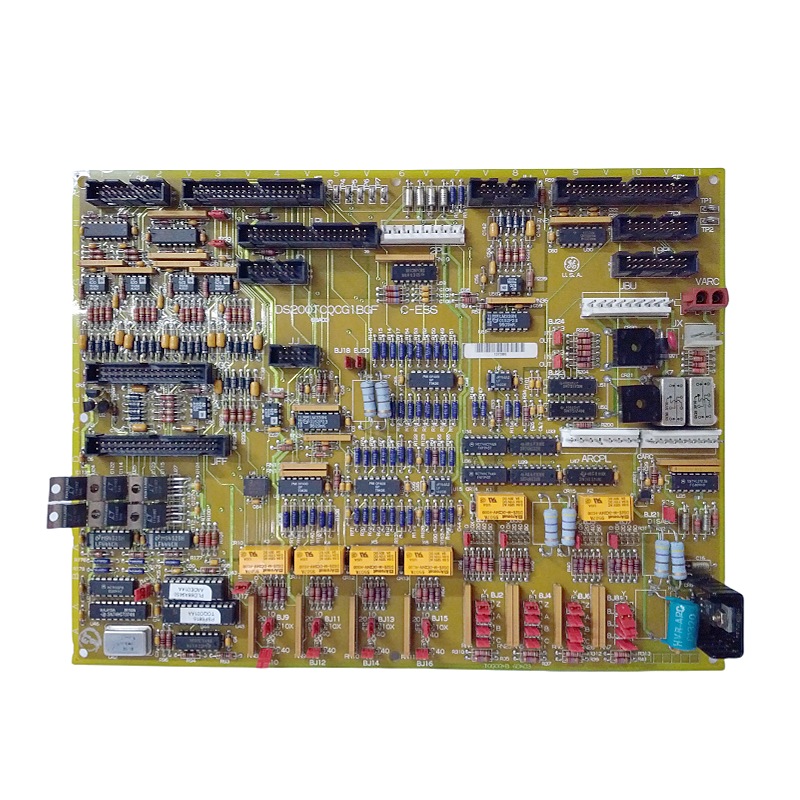

GE DS200TCQCG1BGF

Overview

Parameters

• Model: DS200TCQCG1BGF
• Brand: GE (General Electric)
• Series: Mark V series
• Function: Analog I/O board, used to monitor and control analog signals in industrial processes, such as temperature and pressure
• Input signals: Analog signals (typically 4-20mA)
• Output signals: Alarm signals, control signals, etc.
• Operating temperature range: -40℃~+85℃
• Storage temperature range: -40℃~+125℃
• Dimensions: 120mm x 60mm x 25mm
• Weight: Approximately 0.2kg
• Protection class: IP20

Product Features

• High precision: Adopts industrial-grade components to provide high-precision measurement and control capabilities.
• High reliability: Equipped with multiple protection functions, such as automatic diagnosis, self-calibration, and fault detection, to ensure stable system operation.
• Flexible configuration: Supports multiple communication protocols (such as Modbus, Profibus), with programmable parameters and functions, facilitating configuration according to needs.
• Modular design: Easy to install and maintain, supporting expansion and integration into existing systems.
• Fast response: Can quickly issue alarm signals and execute control actions when a fault occurs.

Structure and Composition

• Modular design: Utilizes a modular design for easy installation and maintenance, supporting expansion and integration into existing systems.
• Connectors: Includes multiple connectors (such as 34-pin, 40-pin connectors) for connecting with sensors and control systems.
• Installation method: Can be installed via DIN rail or directly in the drive’s cabinet.

Application Fields

• Power industry: Used for control and protection in power systems such as power plants, substations, and gas turbines.
• Petrochemical industry: Applied in the control and protection of petrochemical processes.
• Industrial automation: Used for monitoring and controlling parameters like liquid level, pressure, and temperature in industrial processes.
• Other fields: Including water treatment, building automation, transportation, etc.

Installation and Maintenance

• Installation method: Can be installed via DIN rail or directly in the drive’s cabinet, with simple installation procedures.
• Maintenance: The modular design facilitates maintenance and replacement, supporting remote monitoring and fault diagnosis.
• Maintenance recommendations: Regularly check connectors and power connections to ensure the device operates normally.

————————————————————————————————-
