Series:Mark V

Product Type:Analog IO Expander Board

Product ID:DS200TCQAG1BHF

Weight:0.54 kg

Dimensions:11 x 6 x 6.7 cm

Voltage Range:10-30 VDC

Current Rating:Up to 2 A per channel

Temperature Range:-40°C to +85°C

Communication Protocol:Supported protocols include Modbus, Profibus, and Ethernet/IP

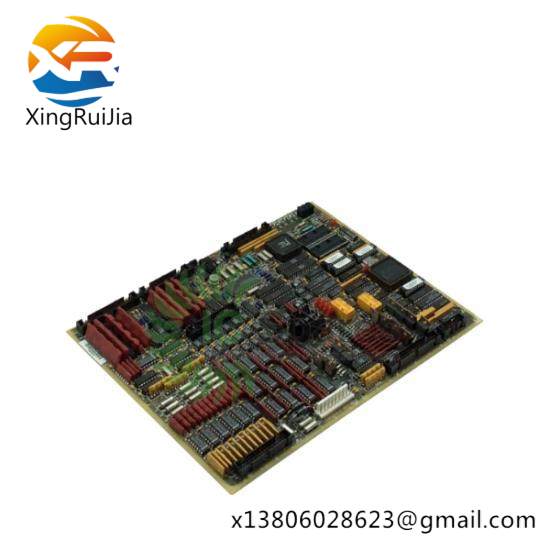

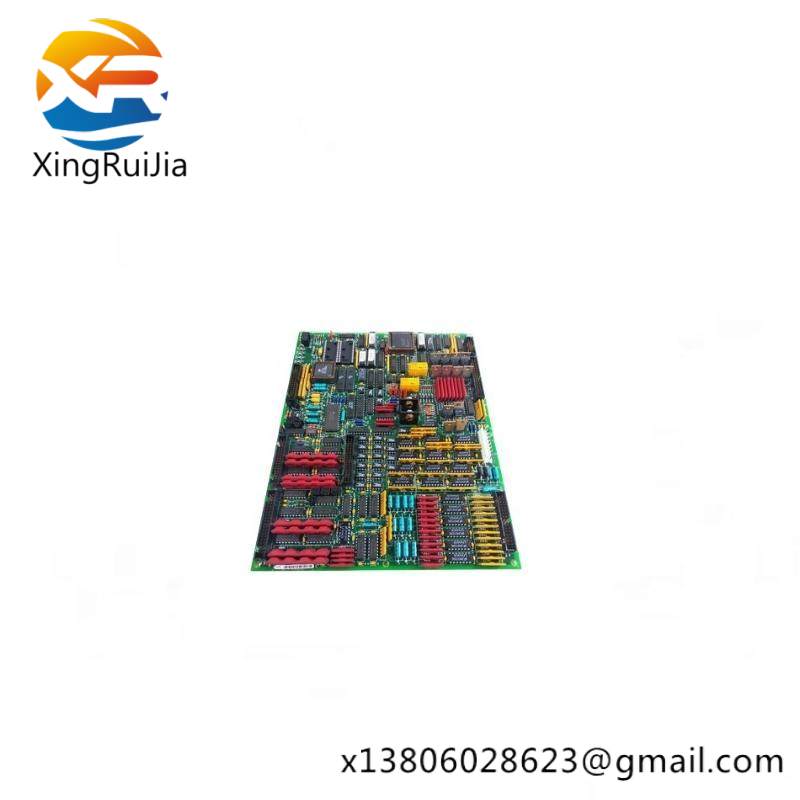

    The GE DS200TCQAG1BHF is an advanced RST Analog I/O Module designed to integrate seamlessly with GE‘s Mark V series of industrial control systems. This module is built to provide highly accurate and reliable analog input and output signals, making it ideal for a wide range of industrial automation applications.

    **Design Highlights**: The module is meticulously engineered with robust components to withstand harsh industrial environments. Its compact size allows for easy installation and integration into existing systems without requiring extensive modifications. The design ensures minimal interference with other equipment, ensuring smooth operation even in densely packed control panels.

    **Material Quality**: Constructed from premium materials, the GE DS200TCQAG1BHF offers exceptional durability and longevity. The module is equipped with high-quality connectors that provide stable and secure connections, reducing the risk of signal degradation or failure over time. The use of corrosion-resistant materials ensures that the module can operate reliably in environments with high humidity or exposure to chemicals.

    **Usage Instructions**: Installation is straightforward, with clear instructions provided in the user manual. The module connects directly to the Mark V system via standard communication protocols, allowing for easy setup and configuration. Users can monitor and adjust the module’s performance through the system’s control interface, ensuring optimal operation at all times.

    **Performance Metrics**: With an accuracy of +/- 0.1%, the GE DS200TCQAG1BHF delivers precise and consistent performance. The operating voltage of 24 VDC and a temperature range from -40°C to +85°C make it suitable for a variety of industrial settings, including extreme environments. The module supports both 0-10 VDC and 4-20 mA input and output ranges, providing flexibility for different application needs.

    **Technical Support**: For any technical questions or support, please refer to the official GE documentation or contact GE customer service. Our team is dedicated to ensuring that you receive the highest level of support for your industrial automation needs.
