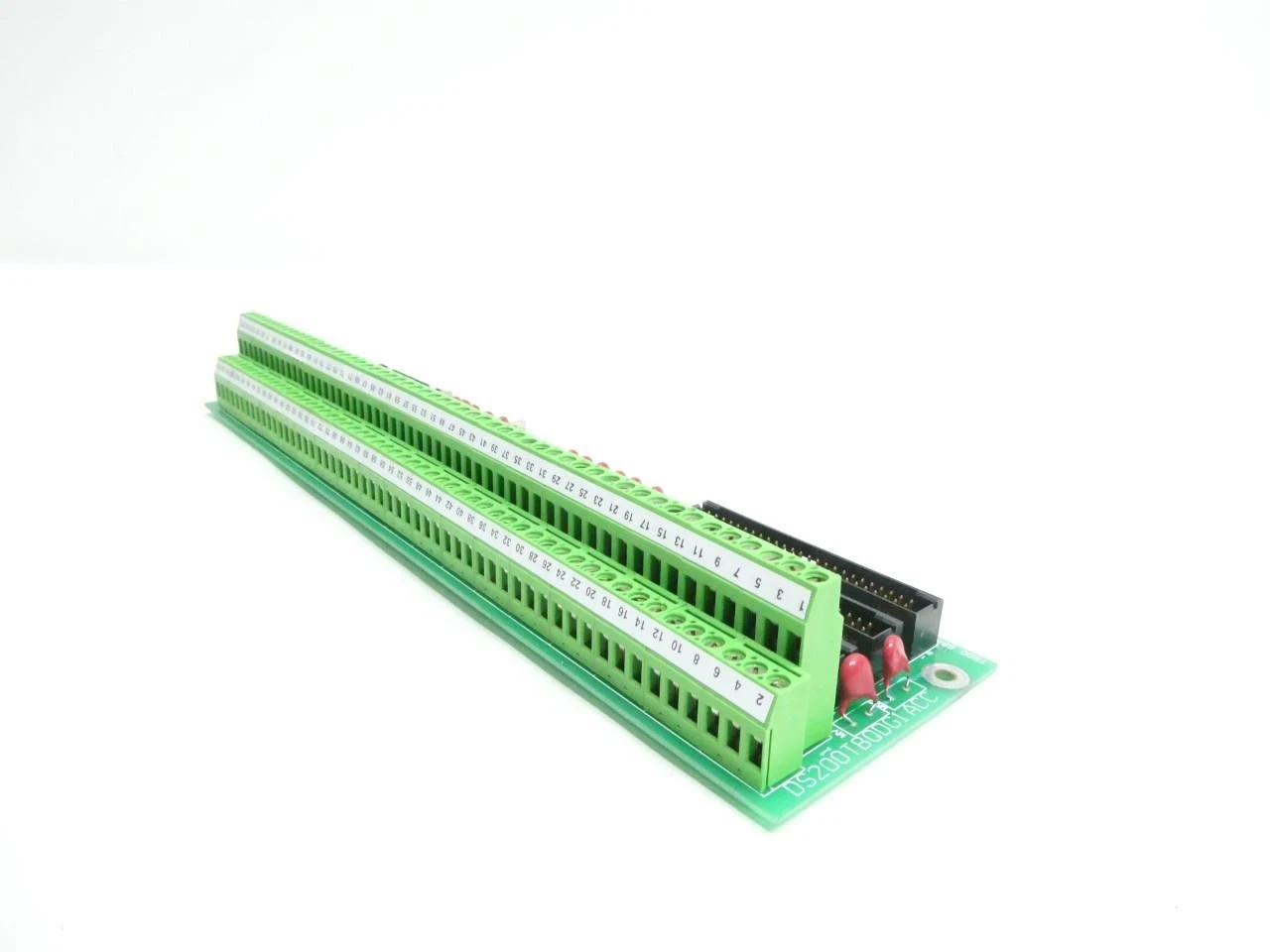

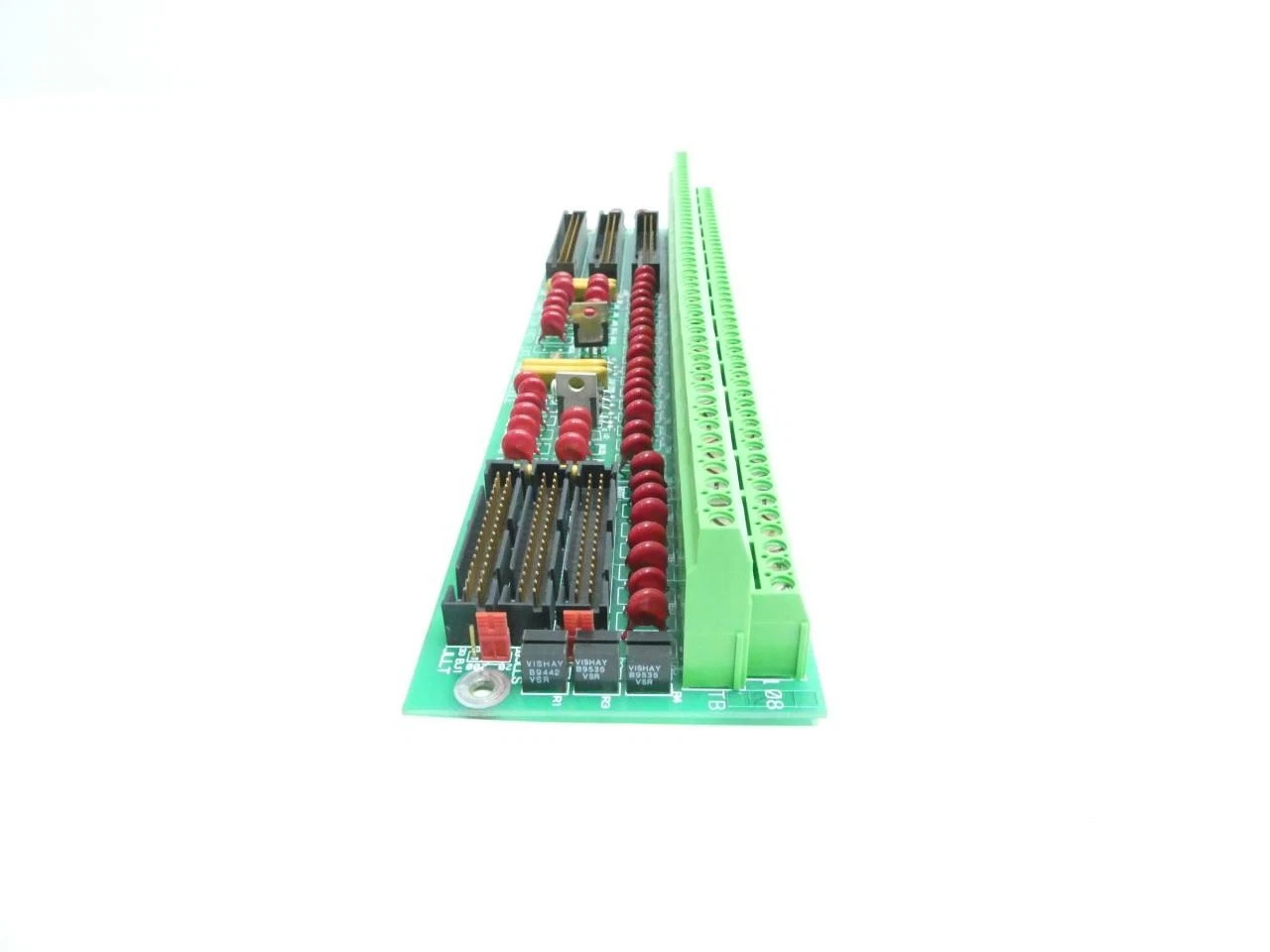

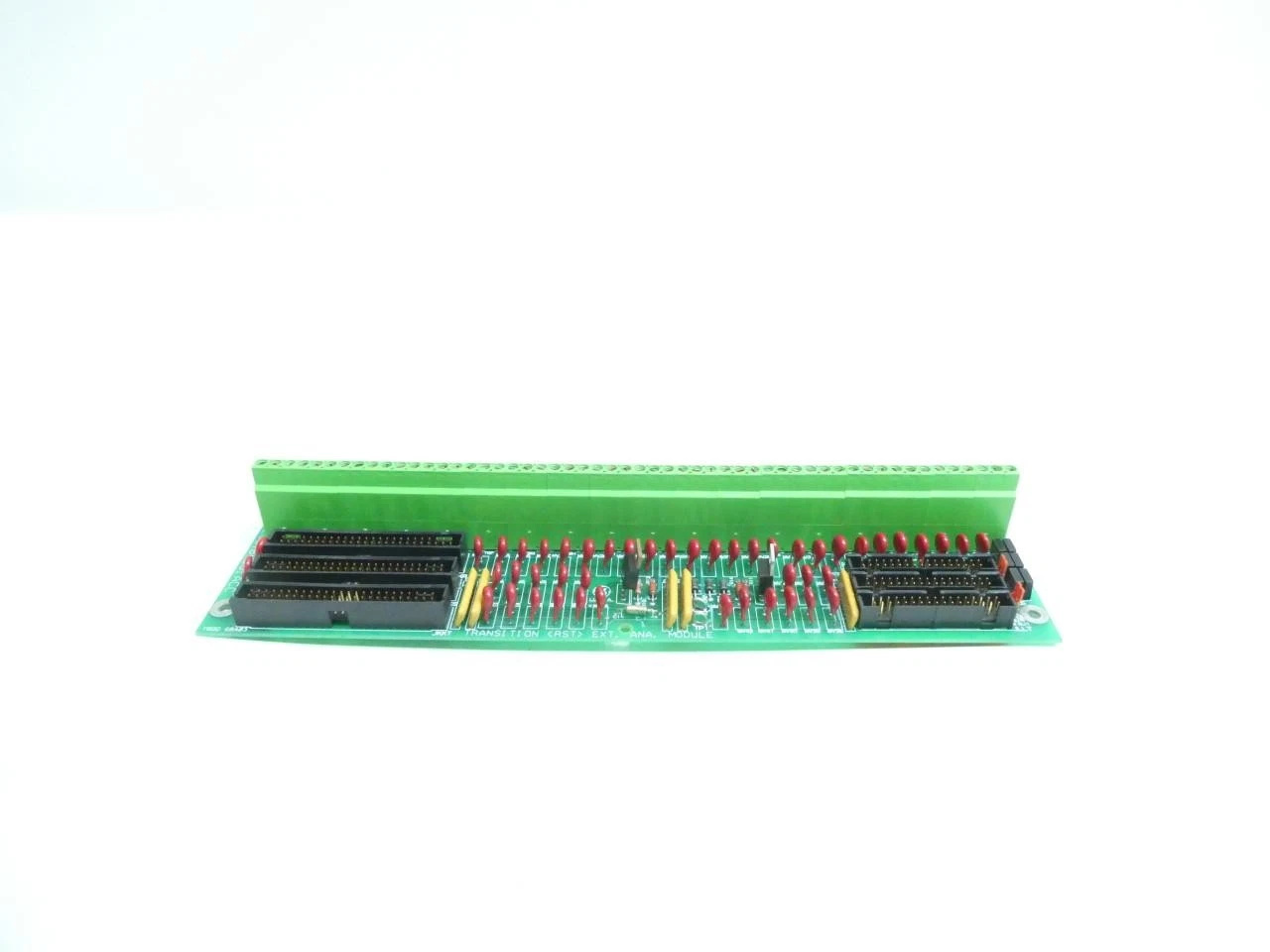

Ge DS200TBQDG1ACC Analog Terminal Board

Ge DS200TBQDG1ACC is an analog terminal board specifically designed for the GE Mark V digital control system. As one of the core components in the DS200 series,

Ge DS200TBQDG1ACC

1. Product Overview

Ge DS200TBQDG1ACC is an analog terminal board specifically designed for the GE Mark V digital control system. As one of the core components in the DS200 series, it is mainly used in the field of industrial automation control, especially playing a key role in complex control systems in industries such as power, petroleum, and chemical engineering.

_______________________________________________________________________________________________________

2. Key Technical Parameters

Operating Temperature Range: -40℃ – +85℃
Protection Level: IP20
Communication Interface: Supports communication protocols such as Modbus TCP/IP or IONET, enabling seamless integration with the existing Mark V system
Dimensions & Weight: Typical dimensions are approximately 100mm × 50mm × 20mm, and the weight is about 100g
Reliability: Equipped with anti-electromagnetic interference and anti-vibration capabilities to ensure long-term stable operation

_______________________________________________________________________________________________________

3. Product Features

Modular Design: Compact and modular, easy to install, maintain and wire on site.
High Reliability: Designed specifically for harsh industrial environments, with high temperature resistance and long service life.
Strong Compatibility: Can be used with various field bus protocols (such as Modbus, Profibus) and other modules in the GE Mark V system (such as IS200, RTBAG series).
High Precision: Usually used for the collection and transmission of key data, requiring high-precision analog signal processing capabilities.

_______________________________________________________________________________________________________

4. Structure and Composition

Analog I/O Channels: Used to receive or output analog signals (such as 4-20mA current signals, 0-10V voltage signals).
Communication Interface Module: Includes RJ45 network port or dedicated industrial communication port.
Power Management Module: Responsible for voltage stabilization and protection of the circuit.
Mounting Bracket: Supports DIN rail or rack-mounted installation, facilitating connection with other modules.

_______________________________________________________________________________________________________

5. Application Fields

Power Plants: Used for monitoring and controlling the operating parameters of steam turbines and generators.
Petrochemical Industry: Monitors key equipment such as flow meters and pressure gauges.
Transportation and Infrastructure: Used for traffic light control systems or automated management of other public facilities.

_______________________________________________________________________________________________________

6. Installation and Maintenance Guide

Installation

It is recommended to use DIN rail for rack-mounted installation to ensure correct connection with power supply and communication cables.

Debugging

After installation, address configuration and channel mapping settings need to be performed through the Mark V system software.

Maintenance

Regularly check whether the terminals are loose, clean the surface of the board to prevent poor heat dissipation caused by dust accumulation, and check the system log to monitor potential communication errors or I/O faults.

————————————————————————————————-
