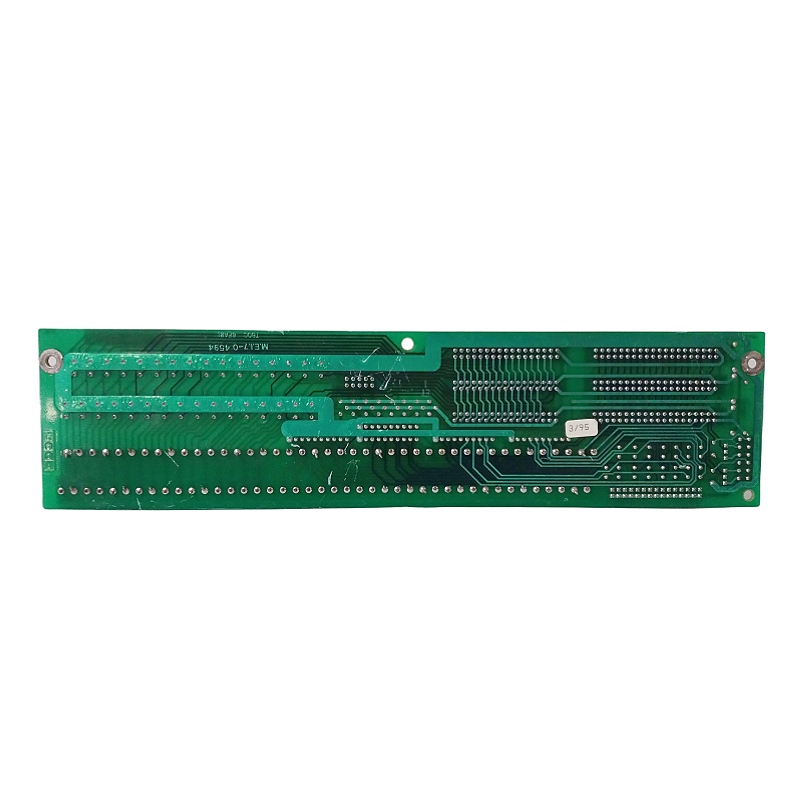

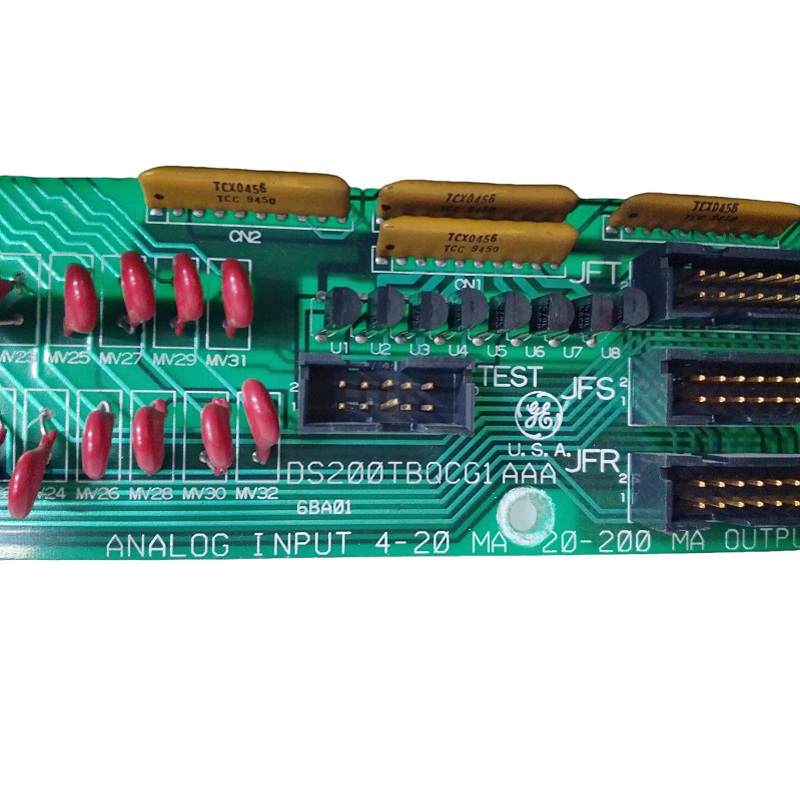

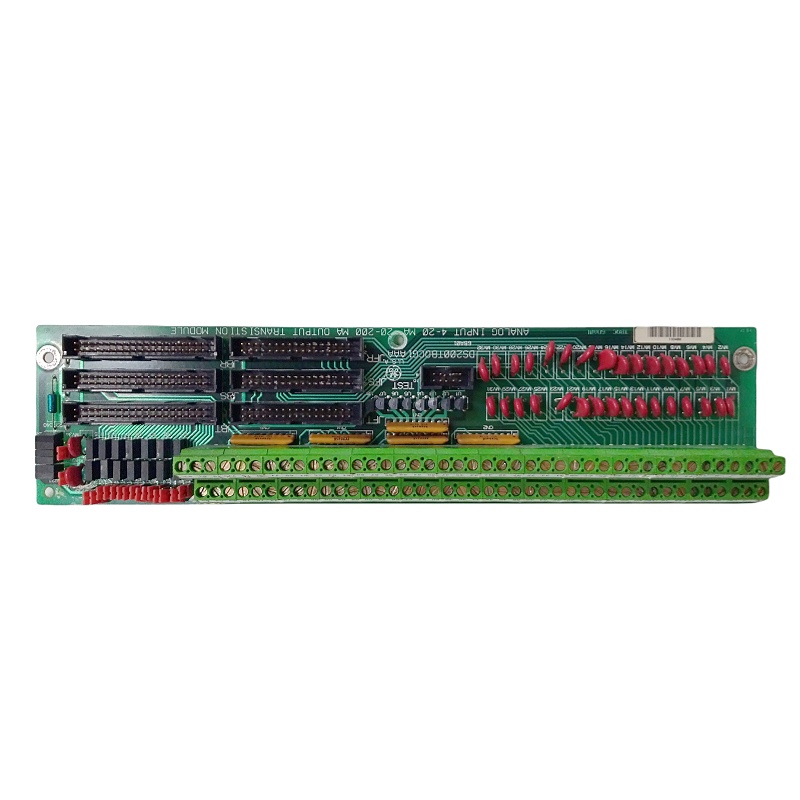

GE DS200TBQCG1AAA Terminal Module

GE DS200TBQCG1AAA

1. Overview

The GE DS200TBQCG1AAA is an analog input/output (I/O) terminal module primarily designed for signal processing in industrial automation and control systems. It handles both analog input and output signals, finding extensive applications in industries such as power, petrochemicals, and metallurgy. The module supports various signal types and interface standards, meeting control requirements in diverse industrial environments.

2. Specifications

Power Supply: 24 VDC (some models may support other voltage ranges)
Operating Temperature Range: -40°C to 70°C (varies by model)
Input/Output Channels: 8 channels (analog input/output)
Input/Output Range: -10V~+10V (analog signals)
Communication Interfaces: Supports multiple protocols, including Modbus, Profibus, and Ethernet
Dimensions: Approximately 120mm x 60mm x 25mm (varies by model)
Weight: Approximately 0.2kg (varies by model)

GE DS200TBQCG1AAA

3. Product Features

High Reliability: Uses industrial-grade components and advanced manufacturing processes to ensure long-term stable operation in harsh industrial environments.
Modular Design: Facilitates easy installation and maintenance, with support for flexible expansion.
High Precision: Provides high-precision signal processing and conversion to ensure the reliability of control systems.
Strong Compatibility: Compatible with various industrial control systems and supports multiple communication protocols.
Easy Installation and Maintenance: Modular design and standardized interfaces simplify installation and upkeep.

4. Structure and Composition

Modular Design: Consists of multiple components, including signal processing modules, communication modules, and interface modules.
Signal Processing Module: Responsible for the input, processing, and output of analog signals.
Communication Module: Supports multiple communication protocols to enable communication with upper-level systems.
Interface Module: Offers various interfaces to support multiple connection methods.

GE DS200TBQCG1AAA

5. Application Fields

Power Industry: Used for signal processing and control in power plants, transmission systems, and distribution systems.
Petrochemical Industry: Applied in the control and monitoring of petrochemical production processes.
Metallurgy Industry: Utilized for controlling and monitoring metallurgical production processes.
Industrial Automation: Employed in signal processing and control within industrial automation systems.

6. Installation and Maintenance

Installation: The modular design allows for easy installation, supporting multiple mounting methods such as DIN rail mounting.
Maintenance: Modular construction simplifies maintenance, enabling quick replacement and debugging.
Fault Diagnosis: Equipped with fault diagnosis functions, supporting remote diagnosis and maintenance.

————————————————————————————————-
