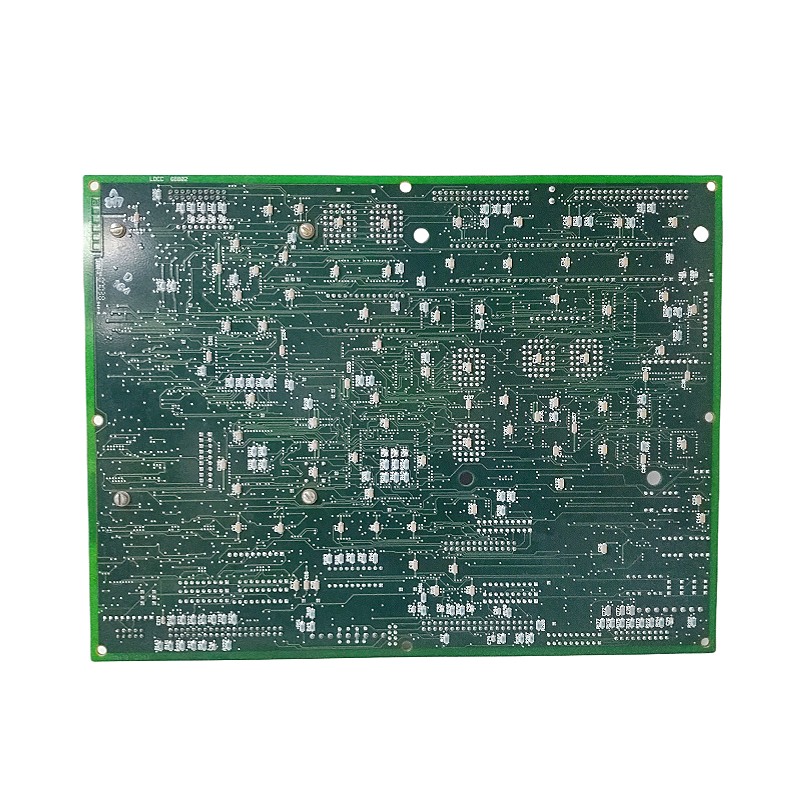

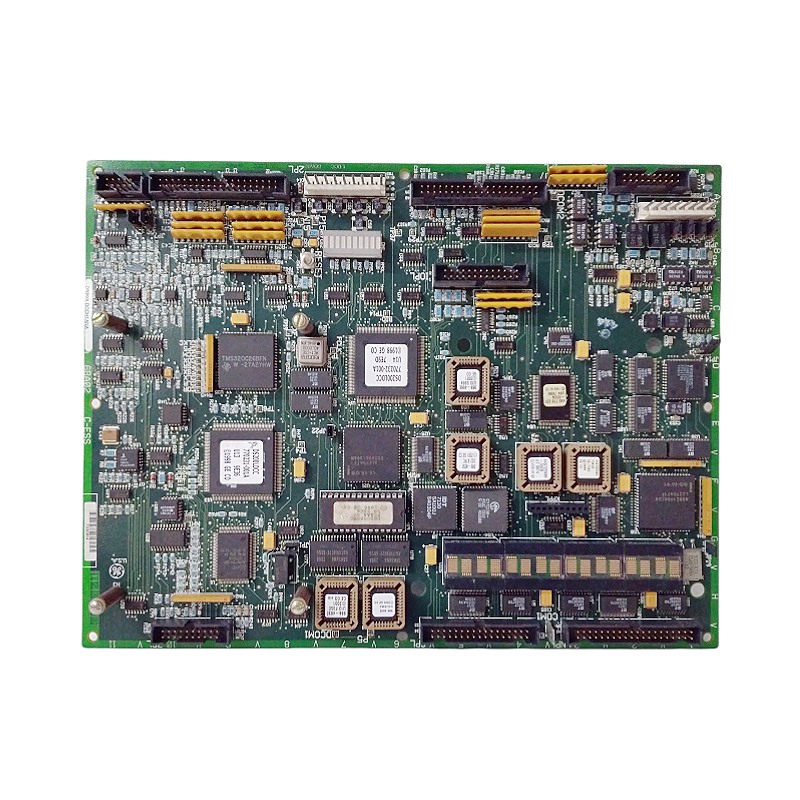

GE DS200LDCCH1ANA
Overview
The DS200LDCCH1ANA is a high-performance drive control and local area network communication board, mainly used for controlling and monitoring power equipment, as well as conducting data communication and exchange through local area networks. This module belongs to the GE Mark VI IS200 series, providing flexible I/O expansion capabilities for industrial control systems.
Parameters
- Supply voltage: 24V DC (some documents mention 24V DC or 24V DC)
- Input voltage range: -30V to +30V (some documents mention 10V~30V or 100-240VAC)
- Communication interfaces: Ethernet, RS-232, RS-485, Modbus RTU, Modbus TCP/IP (mentioned in some documents)
- Operating temperature range: -20℃ to +60℃ (some documents mention -40℃ to +85℃ or -40℃ to +70℃)
- Dimensions: 16cm x 16cm x 12cm (some documents mention 100mm×50mm×20mm or 233 x 168 x 40 mm)
- Weight: 0.8kg (some documents mention 0.14kg or 1.2kg)
Product Features
- High performance: Provides advanced control functions and reliable performance, suitable for harsh industrial environments.
- Multifunctionality: Controls drives, motors, and I/O functions, while managing LAN communication.
- Compatibility: Compatible with the GE Mark V power management system and supports multiple industrial communication protocols.
- High reliability: Adopts industrial-grade components, capable of stable operation in harsh industrial environments.
- Multi-protocol support: Supports various industrial communication protocols such as Modbus, Ethernet, etc.
- Flexible configuration: Can be flexibly configured according to different application requirements to adapt to various network environments.
Structure and Composition
The DS200LDCCH1ANA adopts a modular design, featuring high reliability, high precision, and high efficiency. Its interior includes a microprocessor, communication interfaces, a power management module, and a protection circuit to ensure stable operation in complex industrial environments.
Application Fields
- Power industry: Used in power plants, substations, etc.
- Petrochemical industry: Used in the production process control of petrochemicals.
- Metallurgical industry: Used in the automation control of the metallurgical industry.
- Manufacturing industry: Suitable for the control of various manufacturing processes.
- Energy sector: Controls generators, steam turbines, and other power generation equipment.
- Infrastructure: Applied in multiple fields such as industrial automation and factory safety monitoring.
Installation and Maintenance
- Installation method: DIN rail mounting.
- Maintenance: Modular design, easy to maintain and expand.
- Reliability: Adopts a high protection level, capable of resisting dust, moisture, etc. in harsh environments.
————————————————————————————————-
