GE DS200DCFBG2BNC MRP420024

Overview

Parameters

• Product Model: DS200DCFBG2BNC MRP420024
• Manufacturer: GE General Electric
• Product Type: DC feedback power board
• Series: Mark V Series (Speedtronic)
• Compatible Drives: DC2000, AC2000, CB2000, ME2000, FC2000 series drives
• Communication Input Range: 38 to 115 VAC
• Output Frequency: 0 to 500 kHz (depending on input voltage)
• Circuit Composition: AC and DC monitoring circuits, control-level power supply circuits, motor excitation power supply circuits, drive circuits
• Onboard Diagnostics: 2 LED indicators, 1 neon indicator
• Configurable Items: 12 jumpers, 7 DIP switches
• Test Points: 5 onboard test points
• Fuses: 3 protective fuses
• PCB Coating: Normal coating
• Installation Method: Insert into internal slots of drives or excitation cabinets
• ESD Sensitivity: Electrostatic sensitive product
• Surface Voltage: Lethal surface voltage may be present during or after operation

Product Features

• Core Power Supply and Stable Output: Provides a stable control-level power supply, converting input AC power into precise DC power (+5V, ±15V, ±24VDC) for the control logic and signal processing of motor or generator excitation circuits.
• Integrated Circuit Design: Integrates the excitation power supply circuit of motors or generators and the armature SCR gate pulse generator drive circuit, directly participating in the core control functions of the drive.
• Flexible Configuration and Diagnostic Capability: Equipped with 12 jumpers and 7 DIP switches, allowing users to flexibly configure according to specific application requirements. Onboard LED and neon indicators provide intuitive diagnostic and status information, and five test points facilitate voltage detection and troubleshooting.
• High Reliability and Protection Mechanisms: Equipped with three protective fuses to prevent damage to the module and connected equipment from overcurrent or transient surges. The normally coated PCB provides additional environmental protection.
• Seamless Integration: As a core component of the GE Mark V series, it works in conjunction with other modules and systems in the series to ensure high-precision control and safety protection of gas turbines, steam turbines, and wind turbines.

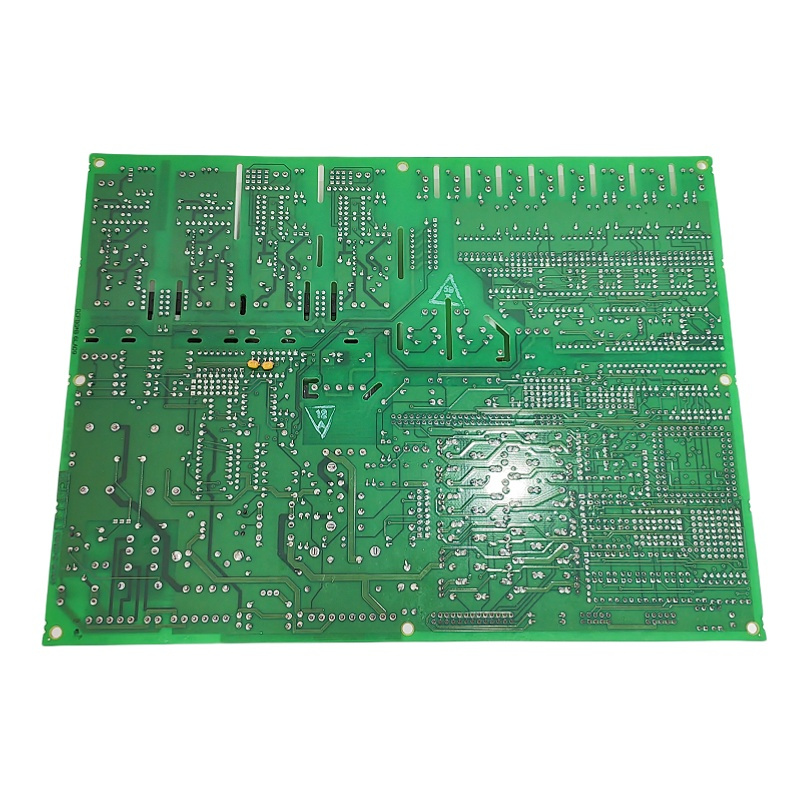

Structure and Composition

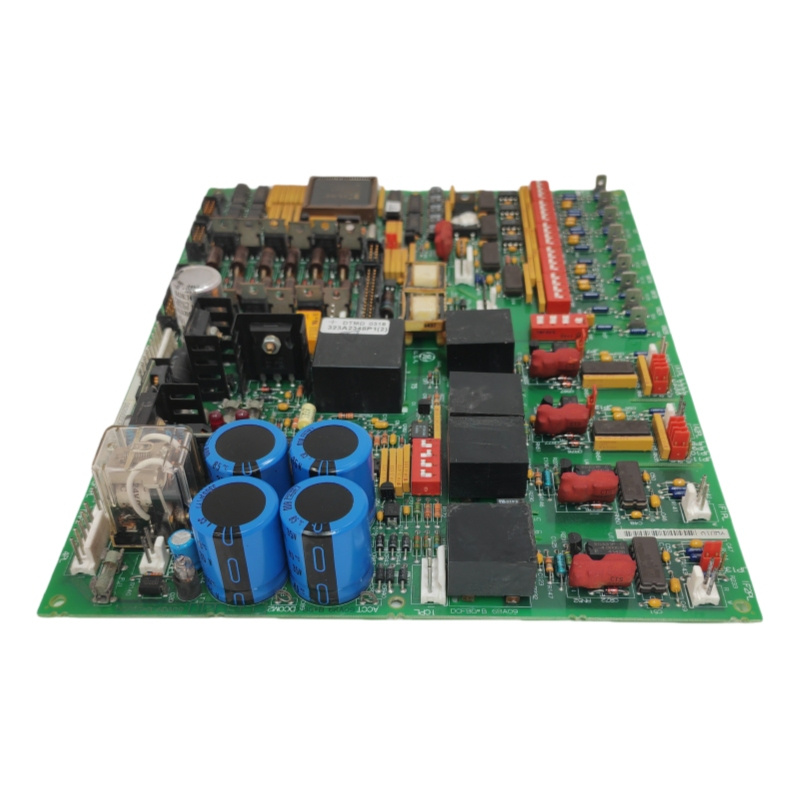

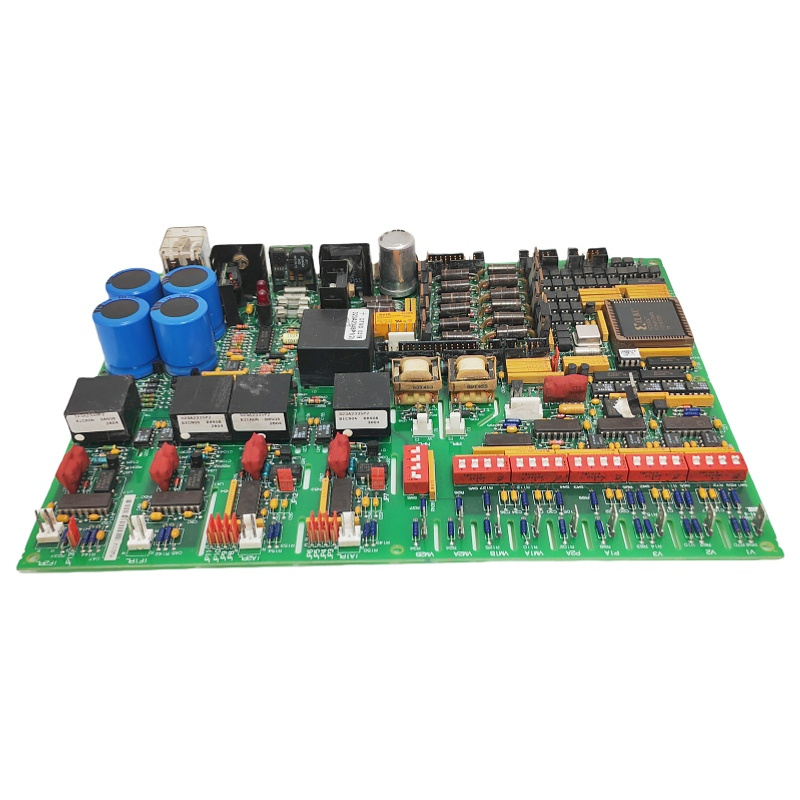

• Signal Connections: Sends and receives input and output signals through 18 plug connectors and 9 pin connectors. The pin connectors are located in the upper left corner of the circuit board, and the plug connectors are distributed throughout the circuit board.
• Internal Components: Includes 7 transformers, oscillation chips, relays, more than 50 resistor network arrays, heat sinks, and various integrated circuits, capacitors, and resistors.
• Protection Mechanisms: 3 protective fuses for power supply protection; DIP switches for selecting AC line voltage, DC bridge voltage feedback VCO circuits, and voltage of DC motor voltage feedback circuits.

————————————————————————————————-
