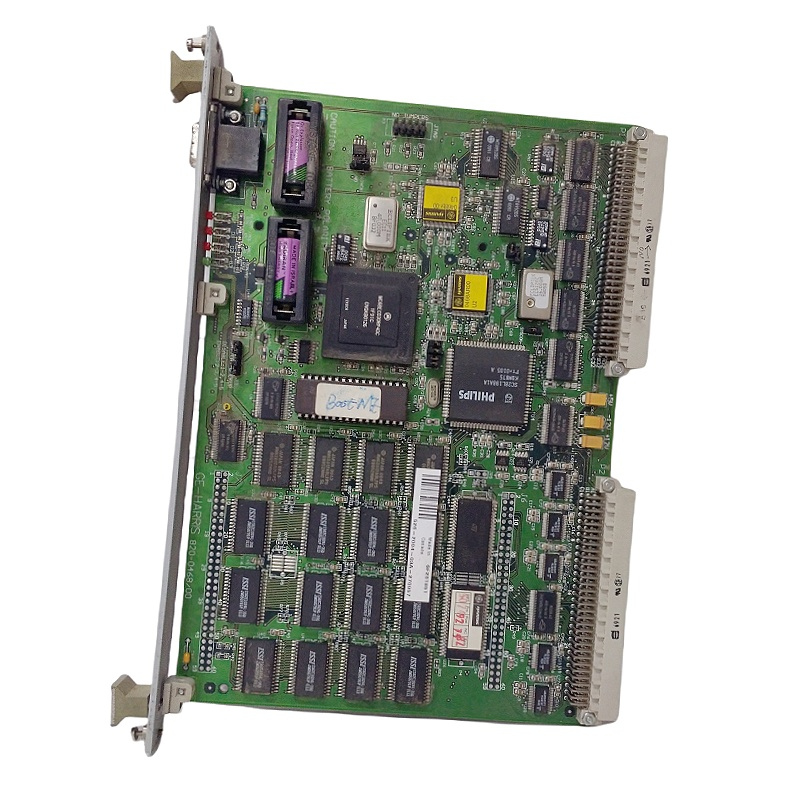

GE D20MIC10BASE-T 820-0756

I. Product Overview

II. Product Parameters

• Communication standard: 10BASE-T Ethernet, with a speed of 10 Mbps.
• Operating voltage: Supports dual voltage input of 24Vdc/120Vac.
• Interface type: RJ45 interface.
• Data transmission rate: Up to 10 Mbps.
• Operating temperature range: -40℃ to 85℃.
• Power supply: 5V DC.
• Dimensions: Approximately 400mm x 250mm x 150mm.
• Weight: 4-8kg.
• Protection class: IP20.
• Memory options: 0 MB, 8 MB, or 16 MB SRAM.

III. Product Features

• Power control core: Adopts Silicon Controlled Rectifier (SCR) technology, realizing precise regulation of current and power by triggering the SCR, suitable for controlling equipment such as resistance furnaces, electromagnets, and heating elements.
• Multi-dimensional monitoring capability: Integrates voltage, current, and temperature monitoring functions, which can feed back the circuit operation status in real-time to ensure that the equipment operates within safe parameter ranges.
• Flexible trigger control: Supports optimizing current waveforms by adjusting the SCR trigger angle, adapting to different load characteristics, and improving the flexibility and efficiency of power control.
• Industrial-grade communication interface: Equipped with a 10BASE-T Ethernet interface, supporting remote data transmission and monitoring, and can be seamlessly integrated with PLC systems and monitoring equipment to achieve remote management and automated control.
• High reliability and safety: Built-in overcurrent and overheating protection mechanisms, compliant with industrial standard certifications, ensuring stable operation of the equipment in complex industrial environments.
• Modular design: Supports function expansion and customization to meet diversified application needs.
• Compact and rugged design: Supports auto-negotiation and automatic MDI/MDIX, with built-in surge protection, suitable for industrial environments.

Easy installation: Can be directly inserted into the slot of the D20 chassis, making installation convenient.

VI. Installation and Maintenance

Installation Methods:

• DIN rail mounting: Suitable for industrial environments, facilitating installation and maintenance.
• Direct insertion into the D20 chassis slot: Easy to install without additional tools.

Grounding Requirements:

• Low-impedance grounding: Use braided cable or heavy-duty solid copper conductors (12 AWG recommended) to ensure shunting of transient currents from the line to the ground.
• Clean grounding surfaces: Ensure all surfaces used for grounding are free of dirt, residues, and corrosion.

Maintenance Recommendations:

• Regular inspection: Regularly check connectors and grounding wires to ensure good connections.
• Environmental adaptability: Ensure the equipment operates within the specified temperature range to avoid the impact of extreme environments.
• Fault diagnosis: Use the diagnostic tools provided by the module to quickly identify and solve potential problems.

————————————————————————————————-
