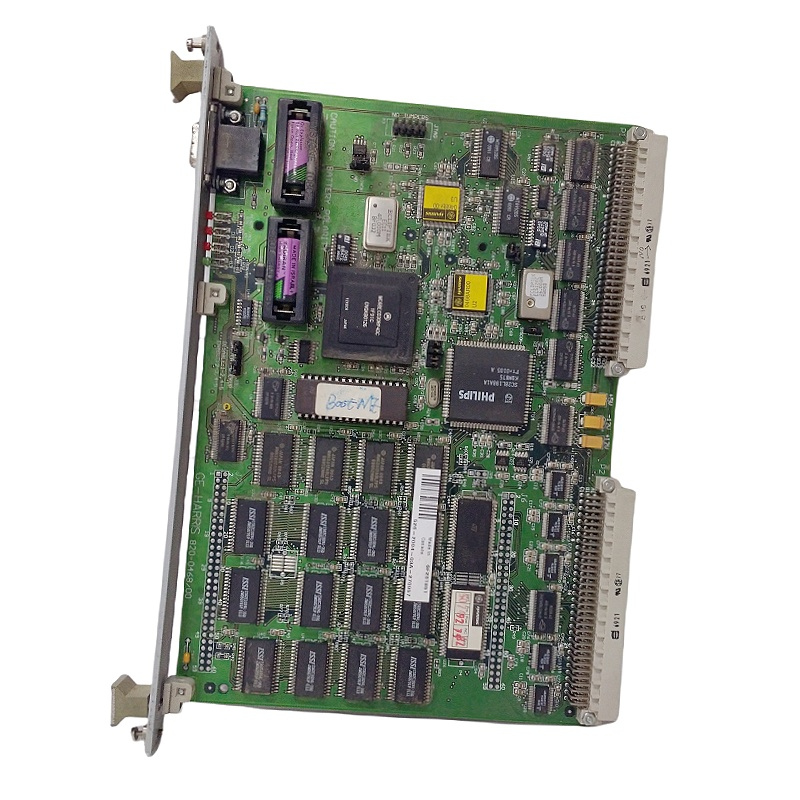

GE D20EME10BASE-T

I. Overview The GE D20 EME 10BASE-T is a key component in the GE D20 series substation automation systems. It is mainly used to connect the D20 system to an Ethernet network, enabling data transmission and remote monitoring.

• Interface type: RJ-45
• Transmission rate: 10Mbps
• Physical layer standard: 10BASE-T
• Operating temperature: -20°C to +60°C (some data sources indicate -40°C to +85°C)
• Power supply voltage: 24V DC
• Power consumption: 2W
• Dimensions: 88.9 mm x 60.96 mm x 22.86 mm (some data sources indicate 100mm × 80mm × 25mm)
• Weight: 113.4 g (some data sources indicate 0.74KG or 150g)
• Protection class: IP20 or IP30 (depending on the specific model)
• Communication protocols: Supports Ethernet/IP, Modbus TCP/IP, etc.

• Interface part: Provides a standard 10BASE-T RJ45 interface for connecting to the Ethernet network.
• Circuit board: Built-in high-performance processor and communication chip to support high-speed data transmission.
• Housing: Uses industrial-grade plastic or stainless steel housing to ensure stable operation in harsh environments.

• Power systems: Substations, power plants, transmission lines, etc.
• Industrial automation: Production line control, robot control, process control, etc.
• Transportation: Railway signal control, traffic light control, vehicle monitoring, etc.
• Petroleum and chemical industry: Petroleum refining, chemical production, pipeline transportation, etc.
• Smart cities and smart buildings: Internet of Things, security, environmental protection, medical care, etc.

————————————————————————————————-
