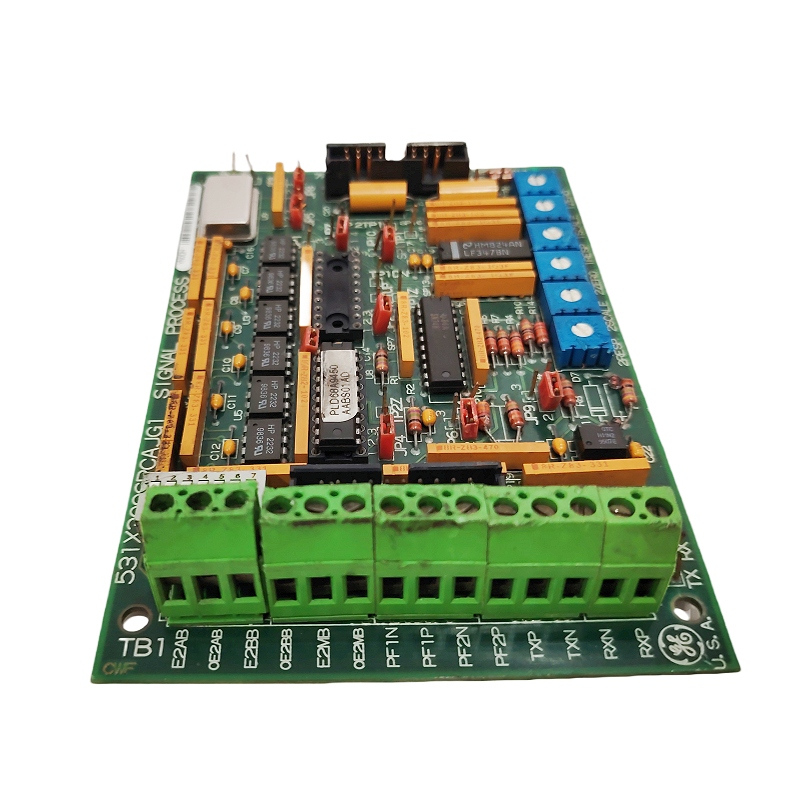

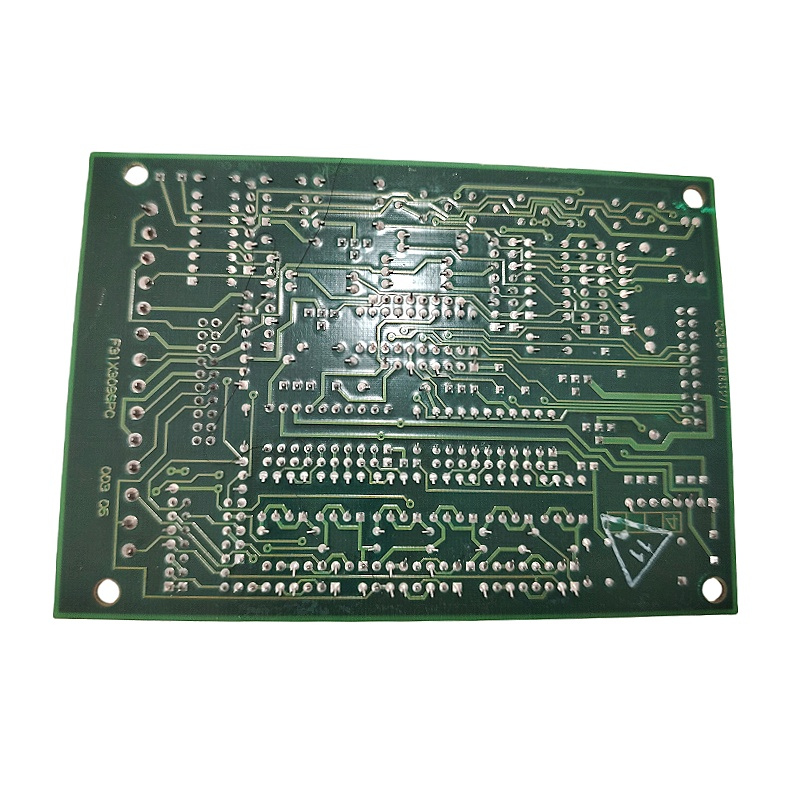

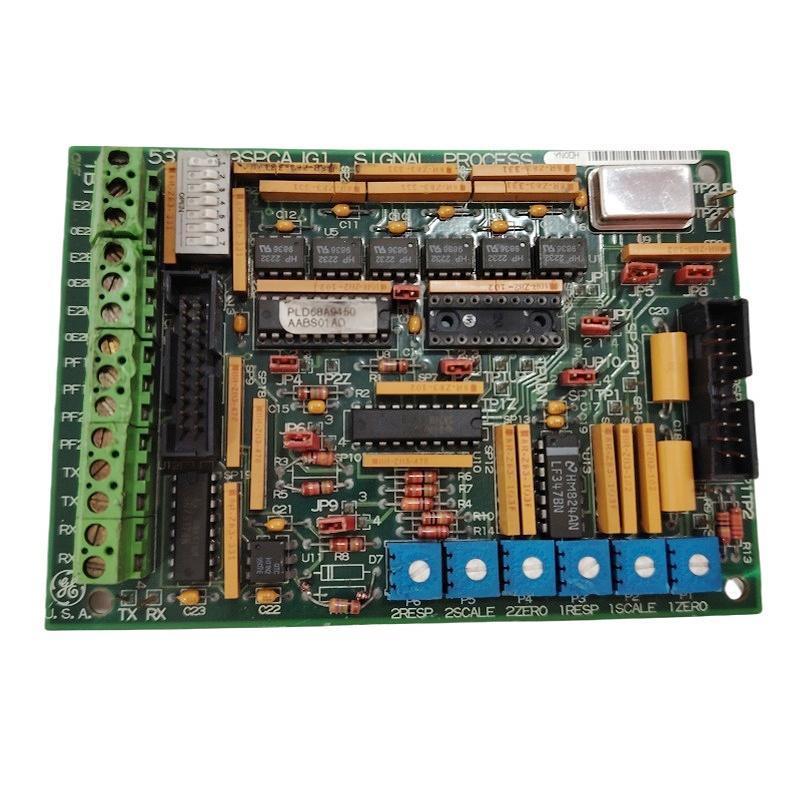

GE 531X309SPCAJG1

I. Overview

II. Parameters

• Model: 531X309SPCAJG1
• Brand: General Electric (GE)
• Type: Signal processing board
• Operating Voltage: 220-380V (some data mentions 110-240VAC)
• Output Voltage: 0-5VDC (some data mentions 10VDC)
• Output Current: 10mA (some data mentions 10mA)
• Power: 10W (some data mentions 10W)
• Operating Temperature: -40-60°C (some data mentions -40-140°C)
• Dimensions: 215 x 160 x 30 mm (some data mentions 8.5 x 6.3 x 1.2 inches)
• Weight: 0.7 kg (some data mentions 0.36 kg)
• Communication Interfaces: Ethernet, RS-485, RS-232 (some data mentions Ethernet, RS-485)
• Protection Level: Industrial grade (IP65 or higher)

III. Product Features

• Signal Processing Function: Processes analog and digital signals, supporting signal conversion, filtering, amplification, and isolation.
• Modular Design: Supports multiple configurations and options, enabling the formation of various optical fiber networks to meet the needs of different application scenarios.
• Redundant Design: Equipped with logically independent dual-bus electrical interfaces, supporting redundant backup to improve system reliability.
• High Reliability: Uses high-quality components and has a self-diagnostic function to monitor operating status and prompt faults.
• Compatibility: Can be integrated with various GE control modules and supports connection with third-party devices.

IV. Structure and Composition

• Core Components: Include microprocessors, memory, input/output (I/O) circuits, power supply circuits, and interface circuits.
• Interfaces: Provide multiple signal input and output ports, supporting different types of sensors and actuators.
• Configuration: Contains configurable switches, jumpers, and potentiometers, allowing users to adjust signal filtering and gain.

V. Application Fields

• Industrial Automation: Used for signal processing and control in industrial automation systems, such as motor drives and frequency converters.
• Process Control: Applied in process control and monitoring in industries like chemical engineering, petroleum, and pharmaceuticals.
• Power Systems: Utilized for monitoring and control of power equipment in power plants and substations.
• Communication Systems: Employed in data transmission in Supervisory Control and Data Acquisition (SCADA) systems.

VI. Installation and Maintenance

• Installation Requirements: Installation must be performed by trained and qualified personnel, following the manufacturer’s installation guidelines to ensure safety and normal operation of the equipment.
• Maintenance: Regularly check the equipment status, perform self-diagnosis and fault troubleshooting to ensure stable operation of the system.
• Warranty: Provides a 12-month warranty period, with after-sales service and technical support available.

————————————————————————————————-
