Product Type:Terminal Board

Series:531X

Model Number:531X305NTBANG1

OEM:GE Motors and Industrial Systems

Instruction Manual:GEI-100020B (Supersedes GEI-100020A)

Power Consumption:Regulated supplies rate at 5 VDC and 15 VDC, Unregulated supplies at 24 VDC or 125 VAC

No. of Channels:4 Channels

Contacts Rating:120 VAC per relay

Encoders Rated:5 V and 15 V configurable using onboard jumpers

Serial Interfaces:RS-232C and RS-422

Analog I/O:Low-level analog input and output, analog tach coarse scaling

Weight:0.44 kg

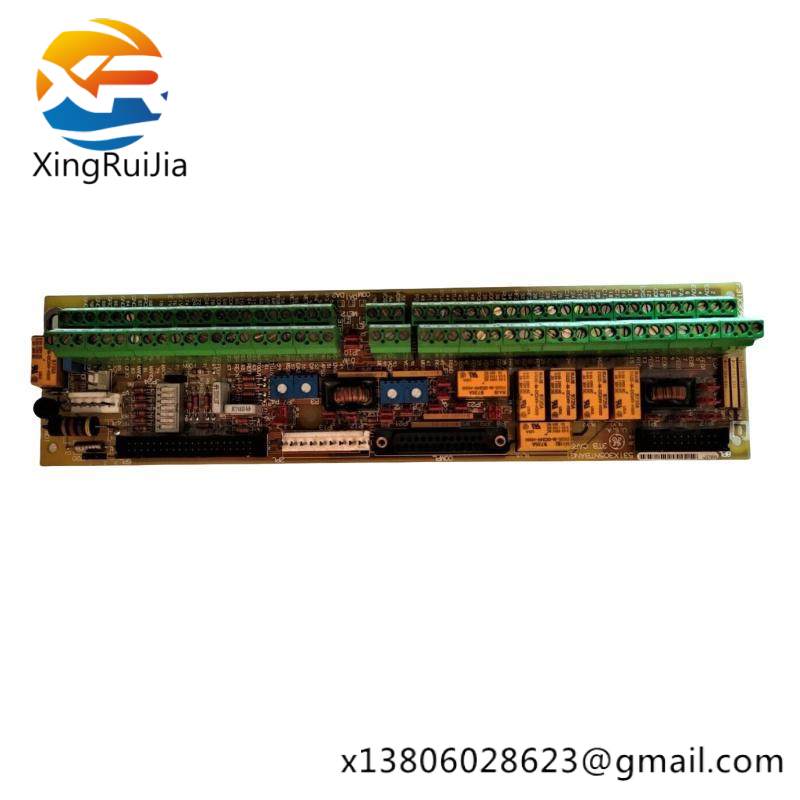

    The GE 531X305NTBANG1 Terminal Board is a high-performance component specifically engineered for integration into complex industrial drive and exciter systems.

    This NTB/3TB terminal board seamlessly connects to a variety of control devices, enabling efficient communication through digital control inputs, relay outputs, low-level analog inputs, and outputs.

    Capable of generating both regulated and unregulated power supplies, it ensures precise voltage control for diverse applications, enhancing operational efficiency.

    Configurable encoder outputs allow for accurate speed measurement and control, making it ideal for precision machinery and automation processes.

    With its robust design, the GE 531X305NTBANG1 is built to withstand demanding industrial environments, ensuring reliability and longevity in various settings.
