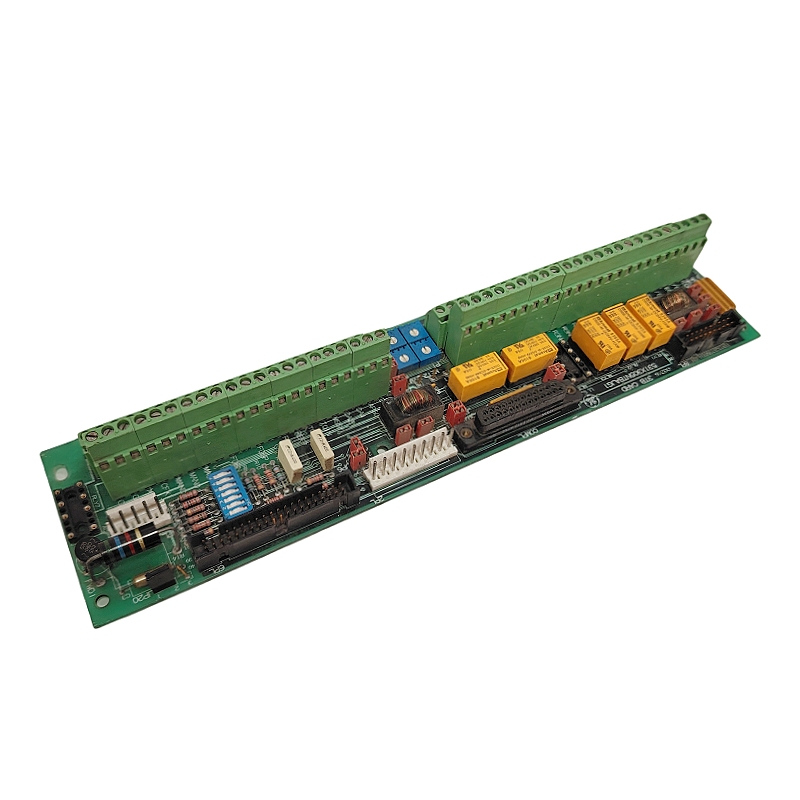

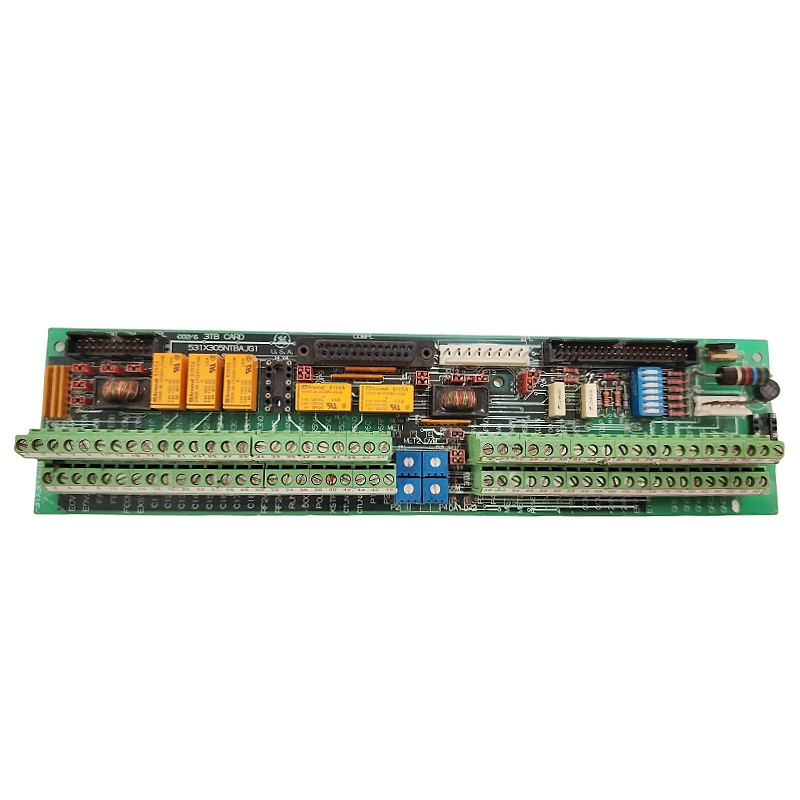

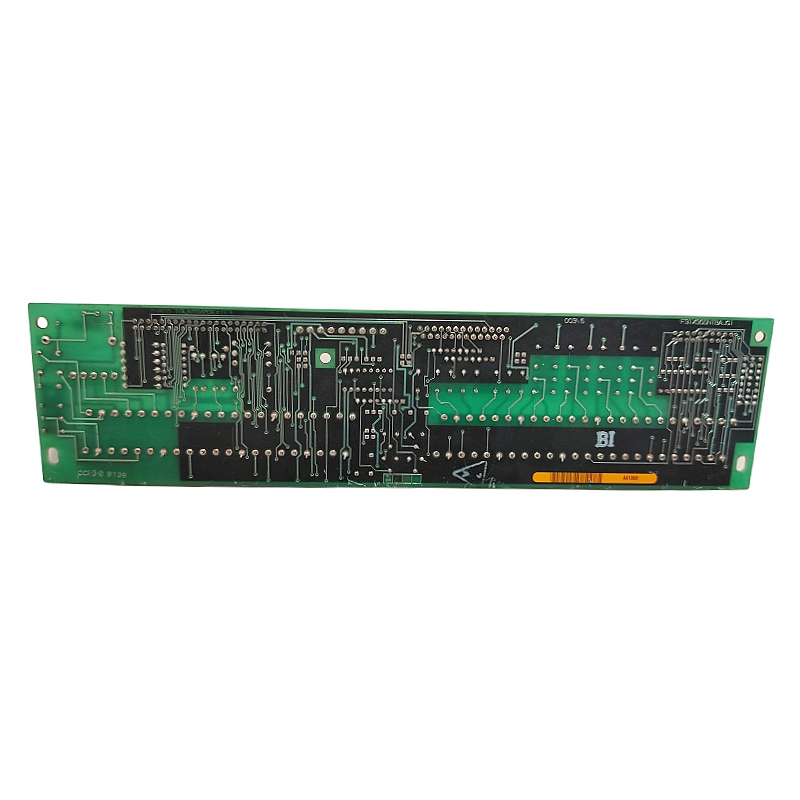

GE 531X305NTBAJG1

I. Overview

II. Parameters

• Model: 531X305NTBAJG1
• Input voltage range: 2 to 240V AC or DC power supply
• Output voltage: Adjustable 5VDC and 15VDC regulated outputs, and unregulated 24VDC and 120VAC outputs
• Interface types: Relay outputs, RS-232, RS-485 serial communication interfaces, and industrial communication protocols such as Profibus and Modbus
• Physical characteristics: 5 jumpers, 1 10-pin connector, 2 fuses
• Operating environment: Temperature range from -20°C to +70°C, with a protection level suitable for harsh environments
• Storage capacity: Sufficient to store application programs, configuration data, historical data records, and alarm information

III. Product Features

• Versatility: Provides multiple interfaces and functions to meet different application requirements
• High reliability: Adopts industrial-grade components, suitable for harsh industrial environments
• Modular design: Facilitates installation and maintenance
• Strong compatibility: Compatible with other products in the GE 531X series
• Easy maintainability: The modular design makes maintenance and replacement of components simpler

IV. Structure and Composition

• Physical structure: Includes 5 jumpers, 1 10-pin connector, and 2 fuses, with a compact design and complete functions
• Interfaces: Supports multiple communication interfaces such as Ethernet, serial ports (RS-232, RS-485), Profibus, and Modbus
• Power supply: Provides multiple power outputs such as 5VDC, 15VDC, 24VDC, and 120VAC

V. Application Fields

• Industrial automation: Used to control and monitor various motors, actuators, and other driving devices
• Power systems: Used to control and monitor equipment such as generators and motors in power plants
• Process control: Used for real-time monitoring and adjustment of key parameters in the production process
• Building automation: Used to control and monitor subsystems such as lighting, air conditioning, and security

VI. Installation and Maintenance

• Installation recommendations: Check all installation parameters provided by the manufacturer before installation to prevent accidental damage to the equipment
• Maintenance: The modular design makes maintenance and replacement of components simpler, reducing downtime
• Technical support: General Electric (GE) provides comprehensive technical support and consulting services

————————————————————————————————-
