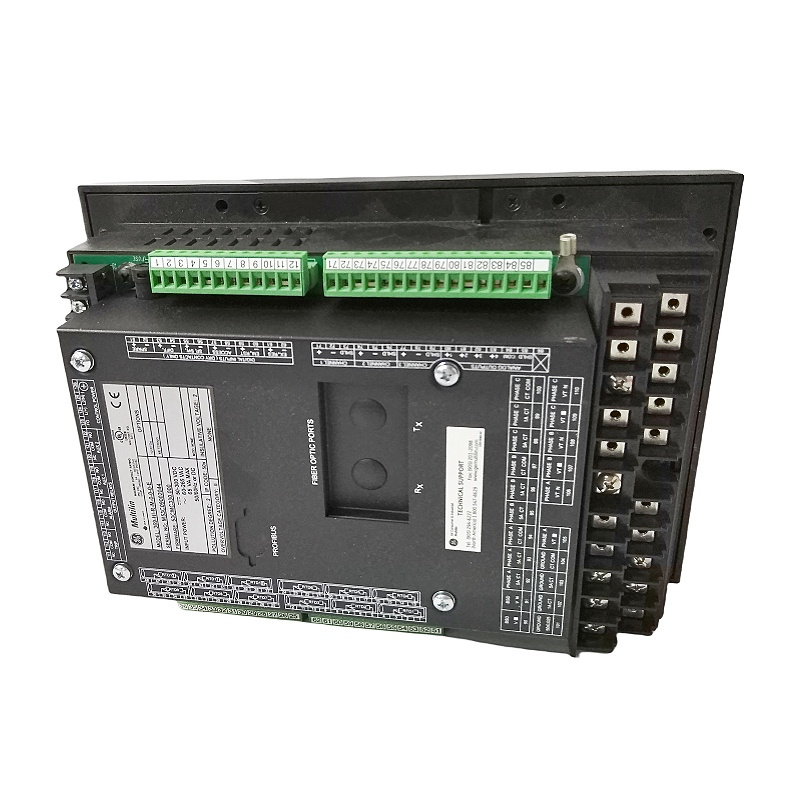

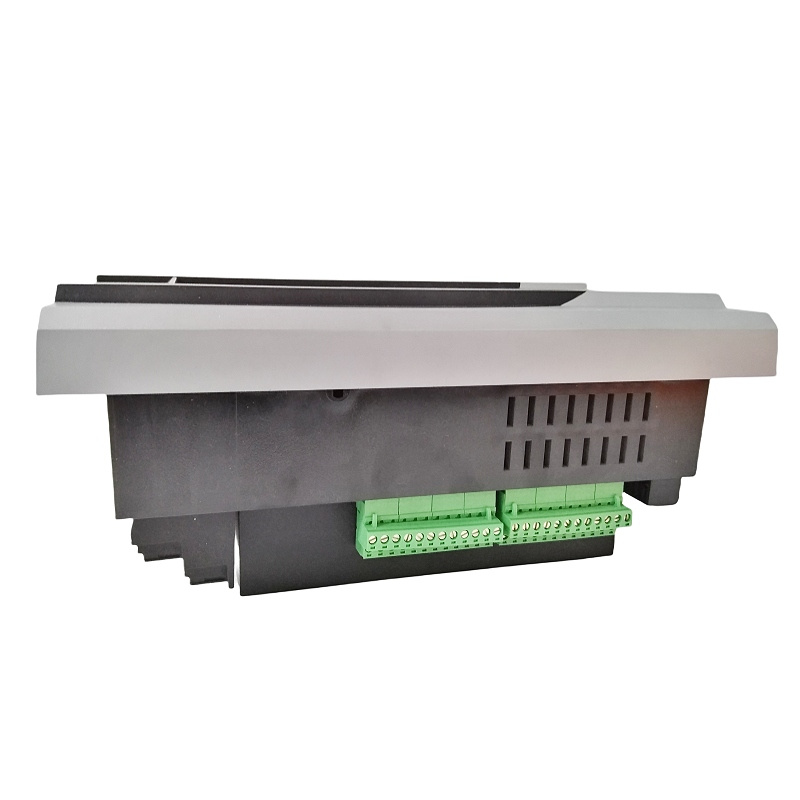

GE 369-HI-R-0-M-0-0-0 Motor Protection Relay

GE 369-HI-R-0-M-0-0-0

GE 369-HI-R-0-M-0-0-0 is a motor protection relay under General Electric (GE) Multilin 369 series, specifically designed for comprehensive protection, monitoring, and control of high-voltage/low-voltage motors. This relay offers full-range motor management functions, including overload protection, short-circuit protection, ground fault protection, phase unbalance protection, as well as energy monitoring and diagnosis. It is suitable for critical motor applications in industries such as petrochemical, power, and water treatment.

Core Values of 369-HI-R-0-M-0-0-0

Comprehensive Motor Protection: Integrates a thermal model protection function that simulates the thermal characteristics of motors to prevent damage caused by overheating.
High-Precision Measurement: Monitors real-time parameters such as current, voltage, power, and electrical energy with an accuracy of ±0.5%.
Advanced Communication: Supports protocols including Modbus, Profibus DP, and DeviceNet, enabling seamless integration into DCS/SCADA systems.

Product Parameters

Product Model: 369-HI-R-0-M-0-0-0
Manufacturer: General Electric (GE)
Product Type: Motor Protection Relay
Rated Current: 5A (CT secondary side)
Input Voltage: 100-240V AC/DC (power supply)
Protection Functions: Overload, short circuit, ground fault, phase unbalance, locked rotor, underload
Measurement Accuracy: ±0.5% (for current and voltage)
Communication Protocols: Modbus RTU/TCP, Profibus DP, DeviceNet
Control Outputs: 4× relay outputs (trip, alarm, control)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Protection Class: IP40 (panel mounting)
Mounting Method: DIN Rail or panel mounting
Certification Standards: UL 508, IEC 60255, CE

Structure and Composition

369-HI-R-0-M-0-0-0 adopts a modular design, with main components including:

1. Signal Acquisition Unit

Features high-precision CT/PT interfaces, supporting 1A/5A CT input and voltage measurement of 0-600V AC.

2. DSP Processing Module

Performs real-time calculation of effective values of current/voltage, power, electrical energy, and harmonics.

3. Protection Logic Unit

Equipped with programmable protection curves (e.g., IEC inverse time curve, ANSI curve), which can be configured via EnerVista 369 software.

4. Communication Interface

Includes dual RS-485 (Modbus RTU), Ethernet (Modbus TCP), and optional Profibus/DeviceNet modules.

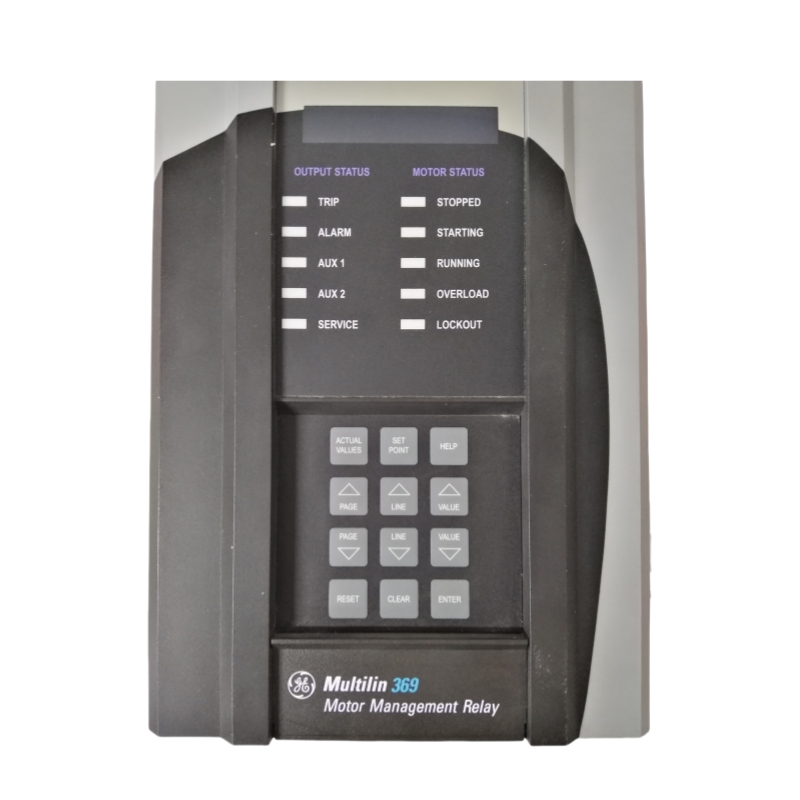

5. Human-Machine Interface (HMI)

Comes with a 128×64 LCD display for on-site viewing of parameters, event records, and real-time data.

————————————————————————————————-
