Input Channels:8

Isolation Type:Channel Isolated

RTD Compatibility:PT100, PT1000, Cu50, Cu100

Input Range:-200°C to +850°C

Output Resolution:16-bit

Power Supply Voltage:DC 24V

Operating Temperature:-40°C to +85°C

Relay Output:1 Form C, 24V DC, 0.1A

Communication Interface:MODBUS-RTU

Protection Class:IP20

Dimensions:146mm x 112mm x 95mm

Weight:0.5kg

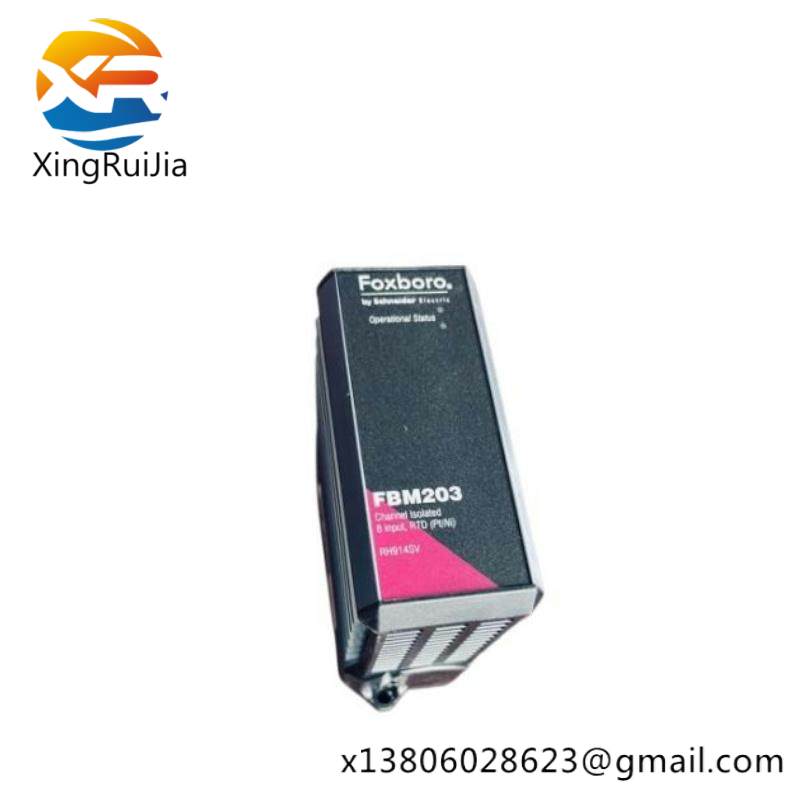

    The FOXBORO FBM203 RH914SV is specifically engineered for applications requiring precise temperature measurement in industrial settings. This module is equipped with 8 channels for simultaneous connection of RTDs, ensuring a robust solution for monitoring various temperatures across different processes.

    Its channel isolation feature minimizes the impact of common-mode noise, enhancing measurement accuracy even in noisy environments. The module’s compatibility with a wide range of RTDs makes it versatile for diverse industrial applications.

    Operated on 24VDC with a low current consumption, this module is energy-efficient and suitable for systems where power management is crucial. With an operating temperature range from -200°C to +1000°C, it can withstand extreme conditions, making it ideal for both cold storage and high-temperature processes.

    Precision is at the core of the FBM203 RH914SV. It offers an accuracy of +/-0.1% at 25°C, significantly reducing measurement errors. Its low temperature coefficient of resistance ensures stability over a broad temperature range, maintaining consistent performance under varying conditions.

    The IP67 environmental rating indicates that the module is protected against dust ingress and can withstand water jets from all directions, making it suitable for outdoor or harsh indoor industrial environments. The panel-mount design allows for easy integration into existing control systems, enhancing installation flexibility.
