Product Type:Flame Scanner Module

Model:85UVF1-1CEX

Brand:Fireye

Voltage Rating:24VDC

Operating Temperature Range:-40°C to +80°C

Detector Type:UV

Response Time:<1 second

Output Signal:SPDT Relay (Form A)

Weight:0.5 kg

Dimensions:100mm x 70mm x 50mm (LxWxH)

Certifications:CE, UL, CSA

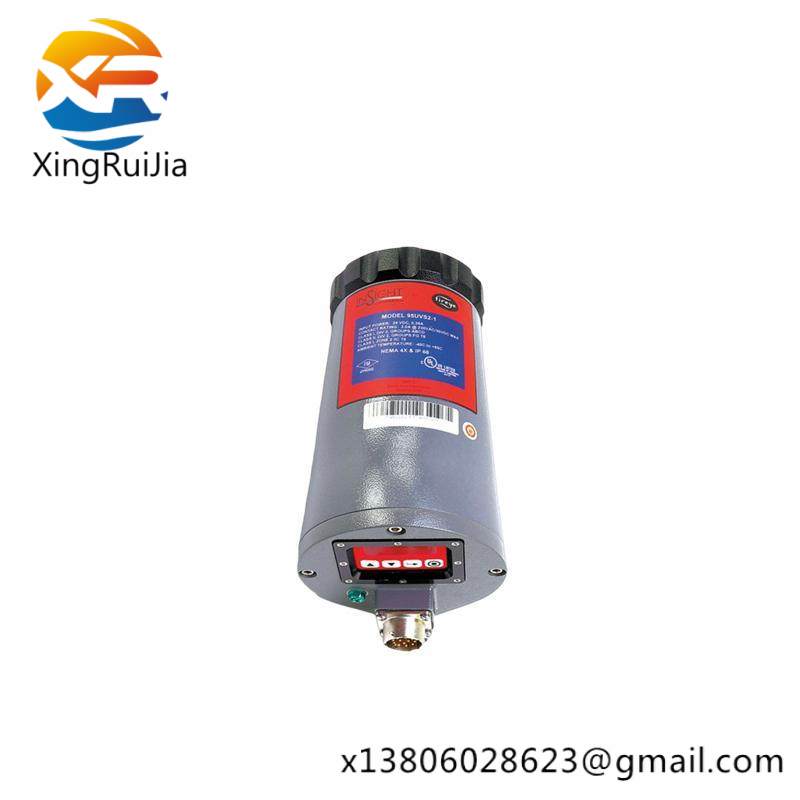

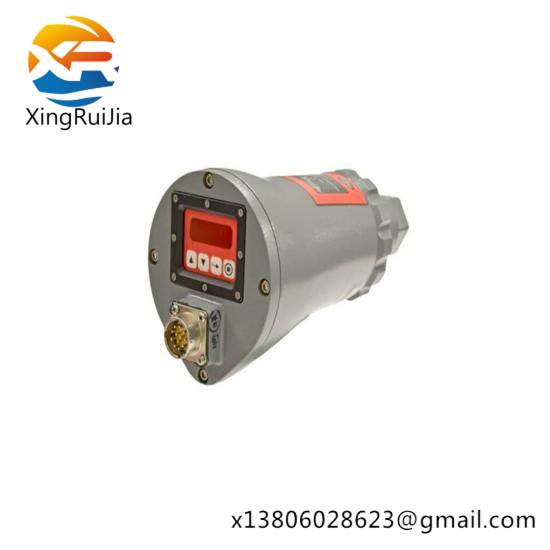

    The Fireye 85UVF1-1CEX flame scanner is an advanced solution for monitoring flames in industrial environments. Utilizing ultraviolet (UV) sensing technology, it quickly detects the presence of flames and alerts operators through a relay contact output. This flame scanner is designed to withstand harsh conditions, making it suitable for use in a wide range of applications, from boilers and furnaces to gas turbines. Its robust design includes a rear flange mounting option, which ensures easy installation and maintenance. With a temperature range from -40°C to +70°C, the 85UVF1-1CEX is capable of operating reliably under extreme conditions. Furthermore, it is certified by UL, CE, and CSA, providing peace of mind regarding its performance and safety standards. Whether you are managing a small industrial facility or a large power plant, the Fireye 85UVF1-1CEX offers dependable flame detection to enhance your process safety and efficiency.
