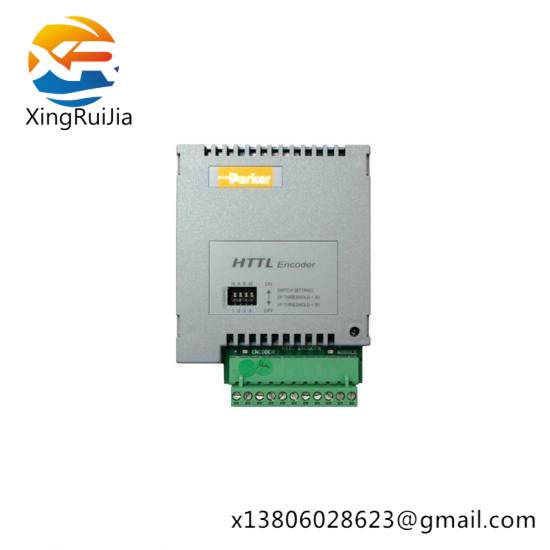

Model:EUROTHERM 6054/HTTL/00

Type:Encoder Feedback Card

Connector:HTTL

Operating Temperature:-20°C to +85°C

Resolution:1024 PPR

Max. Supply Voltage:DC 10V

Current Consumption:Max. 50mA

Communication Protocol:MODBUS RTU

Dimensions:L 60mm x W 30mm x H 10mm

Weight:Approx. 10g

    The EUROTHERM 6054 HTTL Encoder Feedback Card is a critical component in high-performance motion control systems, ensuring accurate and reliable data transmission between the encoder and the control system.

    With its robust HTTL interface, this card supports seamless integration with various motion control systems, offering enhanced compatibility and flexibility.

    Engineered for extreme environmental conditions, the card operates efficiently within a wide temperature range, making it suitable for industrial applications in harsh environments.

    Featuring a high data transmission rate of up to 1 MHz, it ensures real-time feedback for precise control and minimizes delay in motion control systems.

    Designed with efficiency in mind, the compact PCB layout allows for easy installation and integration into existing control systems without requiring extensive modifications.

    Powered by a stable 5 V DC supply, the card consumes minimal power, reducing energy consumption and heat generation, contributing to a cooler and more energy-efficient operation.
