Type:Thermocouple MV Card

Model:KJ3002X1-BG2

Series:DeltaV

Module Class:Analog Input

Thermocouple Compatibility:Types J, K, E, T, R, S, B, C, U

Input Voltage Range:9 to 32 VDC

Input Current Range:0.2 to 10 mA

Output Current Range:4 to 20 mA

Temperature Measurement Range:-40°C to +850°C

Accuracy:+/- 0.1% + 1 Count (max)

Sampling Rate:Up to 5 samples per second

Power Consumption:Typically 2 W

Communication Interface:Modbus RTU

Mounting:Panel mount

Operating Temperature:-20°C to +70°C

Humidity Range:5 to 95% non-condensing

Enclosure Rating:IP20

Dimensions:72 x 100 x 50 mm

Weight:0.1 kg

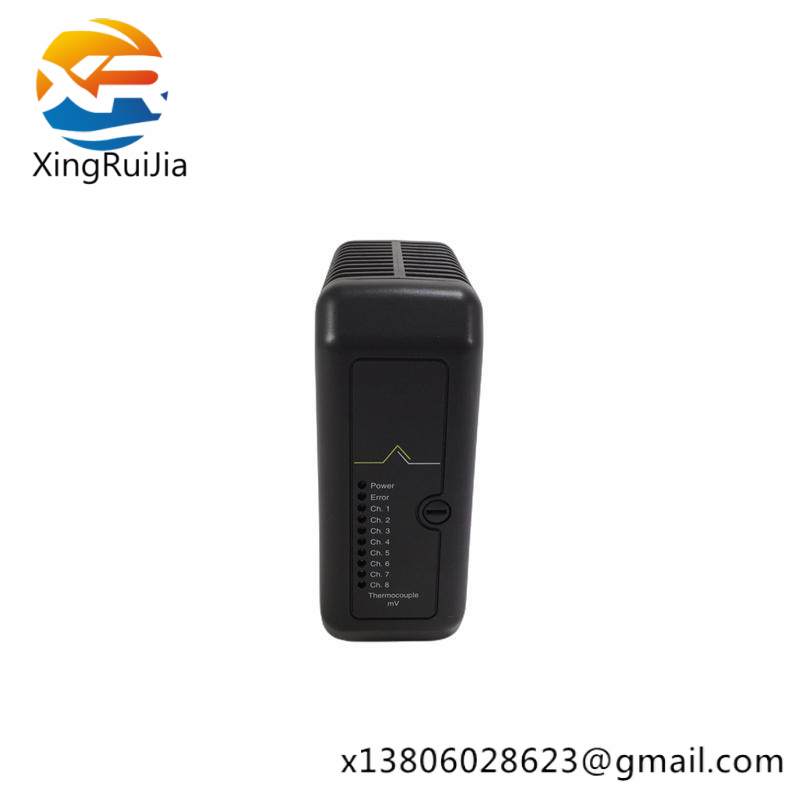

    This Emerson KJ3002X1-BG2 Thermocouple MV Card is designed for high-precision temperature measurement in harsh industrial environments, ensuring reliable data acquisition for process control.

    It supports a wide range of thermocouple types, offering flexibility in measuring temperatures from -40°C to 850°C with exceptional accuracy of +/- 0.1% + 1 Count (max).

    With a fast sampling rate of up to 5 samples per second, this card ensures real-time monitoring and quick response to temperature changes, enhancing operational efficiency.

    Equipped with a robust Modbus RTU communication interface, it seamlessly integrates with existing industrial control systems, facilitating easy setup and configuration.

    Built for durability, the card is designed to withstand harsh conditions, featuring an IP20 enclosure that protects against dust and splashes of water, ensuring reliability in diverse industrial settings.
