Operating Principle:Eddy current technology

Measurement Range:±1.0 mm (.04 in) static, 0 to 500μm (0 to 20 mil) dynamic

Initial Air Gap:0.5 mm (20 mils)

Temperature Range:-20°C to +70°C (-4°F to +158°F)

Accuracy:+/- 1% of full scale

Resolution:0.001 mm (.000039 in)

Output Signal:Linear output voltage

Power Supply:DC 5 V

Current Consumption:Max. 10 mA

Communication Protocol:N/A

Environmental Rating:IP67

Mounting Options:Cable entry M8 x 1.0

Dimensions:L x W x H: 76 x 45 x 32 mm

Weight:0.26 kg

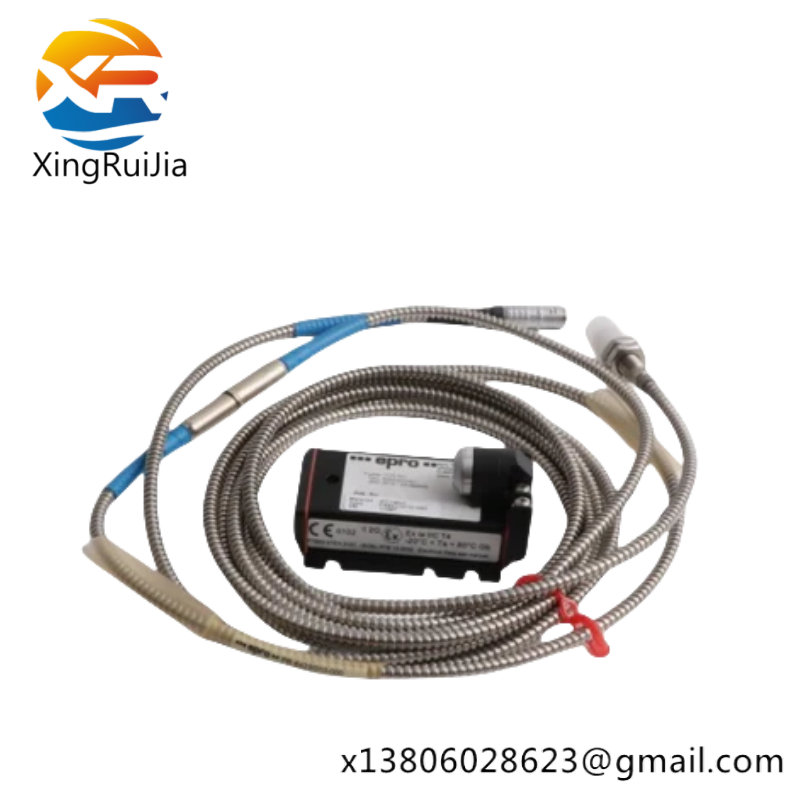

    The EMERSON EPRO PR6423/002-010 CON021 Eddy Current Displacement Sensor is designed for precise measurement of dynamic displacement in industrial automation applications. Its eddy current technology ensures high accuracy and reliability under varying conditions.

    With a wide measurement range that spans from ±1.0 mm (.04 in) in static scenarios to 0 to 500μm (0 to 20 mil) in dynamic situations, this sensor is adaptable to a multitude of industrial settings.

    Equipped with an initial air gap of 0.5 mm (20 mils), it ensures reliable operation even at close distances, making it suitable for tight spaces in manufacturing processes.

    The sensor’s accuracy, rated at +/- 1% of full scale, guarantees dependable readings, essential for critical control systems. Its high resolution of 0.001 mm (.000039 in) allows for detailed analysis of displacement changes.

    Operated with a DC 5 V power supply, it consumes a maximum of 10 mA, making it energy-efficient. The linear output voltage ensures seamless integration with various control systems without requiring complex signal processing.
