Power Supply Voltage:24 VDC

Control Type:High Side

Revolutionary Design:Rev K

Operating Temperature Range:-40°C to +85°C

Input Current:10 mA to 100 mA

Output Resistance:Less than 0.5 Ohms

Contact Rating:10 mA at 24 VDC

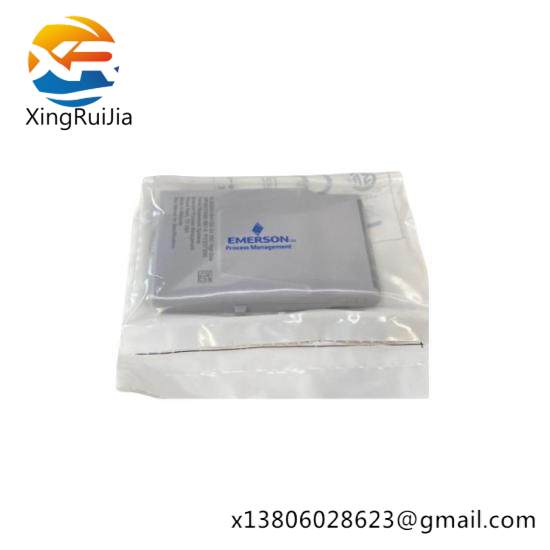

    Introducing the EMERSON 12P4627X082 DO 24 VDC High Side Relay Module Rev K, designed for seamless integration into complex industrial control systems. This robust module boasts a 24 VDC power supply, ensuring it operates efficiently across a wide range of industrial applications.

    Featuring a high-side switching design, this relay module offers enhanced safety and isolation, making it ideal for circuits where direct contact between power supply and ground needs to be avoided. The SPST relay ensures reliable on/off switching, crucial for maintaining system integrity and efficiency.

    With a contact rating of 10A at 250VAC, the 12P4627X082 is capable of handling demanding loads, while its silver-plated copper contacts guarantee long-lasting performance and minimal wear. The operating temperature range of -40°C to +85°C ensures it can withstand extreme environmental conditions, maintaining functionality under varied operational scenarios.

    The relay coil resistance of 250Ω ensures optimal current consumption, contributing to energy efficiency without compromising switching speed. The panel mount style facilitates easy installation and space-saving design in control panels, enhancing system layout flexibility.

    Equipped with advanced manufacturing standards, the EMERSON 12P4627X082 DO 24 VDC High Side Relay Module Rev K is CE certified, ensuring compliance with international safety regulations. This guarantees a high level of reliability and safety, backed by EMERSON‘s reputation for quality and innovation in industrial automation solutions.
